4R70W Transmission Controller Explained
This guide explains the 4R70W transmission controller, the electronic brain that commands shifts and lockup. Learn why factory computer control fails for engine swaps, and how stand-alone aftermarket controllers provide full programmability for performance, towing, and drivability. Essential reading for anyone swapping a modern Ford automatic into a classic or modified vehicle.
The 4R70W transmission is a robust transmission found behind countless Ford V8s, from Mustangs to F-150s. Its strength and availability make it a prime candidate for engine swaps and performance builds. However, a daunting challenge often emerges: this is not your grandfather's simple hydraulic automatic. The problem is electronic control. The 4R70W relies entirely on a computer – the Transmission Control Unit (TCU) – to command every shift, manage the torque converter clutch, and regulate line pressure.
Without the correct signals from the factory engine computer (PCM, or powertrain control module), or with a modified engine that changes those signals, the transmission will either not function or will operate in a crippled, default "limp mode." At GearStar, we specialize in making modern performance transmissions work in any application.
The solution is understanding the controller's role and knowing your options for taking full command. Mastering this electronic gateway is the key to unlocking the 4R70W's full potential in your street machine, resto-mod, or tow vehicle.
What a Transmission Controller Does
Think of the transmission controller as the dedicated digital conductor for your automatic orchestra. It receives a constant stream of real-time data from the vehicle's network. Critical inputs include throttle position (TPS), engine load (MAF/MAP sensor), vehicle speed (VSS), engine RPM, brake pedal status, and transmission fluid temperature. Using this data against its internal programming (the shift strategy), the controller calculates the perfect millisecond to shift.
It then executes these commands by sending power and ground signals to the solenoid pack inside the transmission. These solenoids are electro-hydraulic valves that direct fluid to apply specific clutch packs and bands. The controller also manages the Electronic Pressure Control (EPC) solenoid, which regulates the fundamental line pressure in the transmission – higher for firm shifts under load, lower for smooth part-throttle cruising. In essence, the controller replaces the mechanical valves and vacuum modulators of older transmissions with precise, high-speed digital management.
Why Factory Computer Control Often Fails for Swaps & Mods
Relying on the factory Ford PCM for transmission control works perfectly in a stock, unmodified vehicle. However, for enthusiasts, it presents major obstacles. The primary issue is integration and communication. The transmission controller is typically integrated into the engine PCM. For a swap into an older vehicle or a different model, you need the entire donor wiring harness, correct sensors, and that specific PCM, all communicating flawlessly. It's a complex, vehicle-specific puzzle.
Furthermore, the factory shift strategy is locked and unchangeable without specialized software. If you increase engine power, change tire size, or alter rear gear ratio, the stock programming won't adapt. Shifts may occur at the wrong RPM, torque converter lockup may behave erratically, and line pressure may be insufficient for your new power level, leading to slippage and failure. For performance, you need control, not just compatibility.
Stand-Alone Transmission Controllers

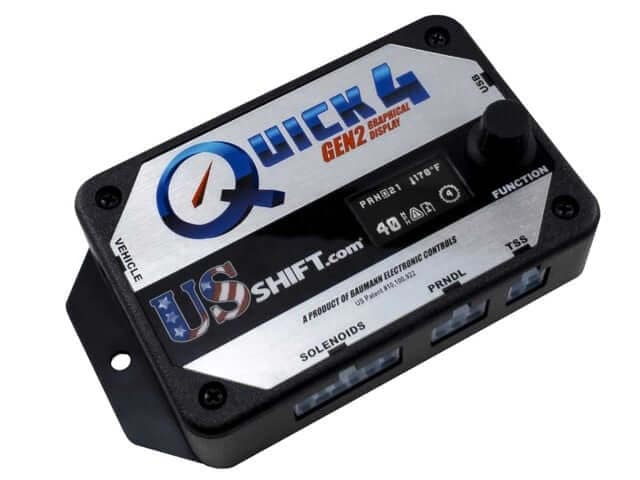

To break free from factory limitations, the industry developed stand-alone transmission controllers. These are dedicated, aftermarket computers designed solely to operate the 4R70W (and similar electronic transmissions). They are the ultimate tool for swaps and performance tuning. Units from leading brands like US Shift and Holley allow complete, user-programmable control over every aspect of the transmission's behavior via laptop software or a handheld interface.
With a stand-alone 4R70W transmission controller, you can customize shift points by RPM and throttle position, adjust shift firmness (by modifying pressure commands), set torque converter lockup schedules, and adapt for tire size and gear ratio. This means you can program a soft, street-friendly shift pattern for cruising and an aggressive, high-pressure, high-RPM shift strategy for the track, all from the same transmission. It transforms the 4R70W from a black-box component into a fully tunable performance instrument.
This is a great option for the enthusiast who is wanting to have an electric transmission but is still running a carburetor or even changing from their carburetor to an aftermarket EFI system.
Optimizing for Performance, Towing, and Driveability for the Tuning Advantage
The true power of a stand-alone 4R70W transmission controller lies in fine-tuning. For a performance street/strip car, you can command later, firmer shifts to keep the engine in the power band, disable unwanted torque converter lockup in lower gears, and increase baseline pressure to prevent clutch slippage under high torque. This optimization ensures every ounce of engine power is effectively transferred.
For a heavy-duty tow vehicle or truck, tuning focuses on durability and cooling. You can program the converter to lock up earlier in 3rd and 4th gears to reduce heat-generating slippage when under load, and adjust shift points to account for the added weight and strain, preventing constant "gear hunting" on inclines. This programmable flexibility makes the 4R70W a versatile choice for nearly any application, provided it is paired with the right controller and calibration.
Matched Systems for Guaranteed Performance
At GearStar, when we build a performance 4R70W transmission, we understand that the hardware and software are inseparable. Our builds include upgraded internal components – beefier clutch packs, hardened planets, and a performance valve body – that are designed to handle increased power and pressure. However, these components demand precise electronic control to function correctly and reliably.
This is why we offer complete, controller-ready packages. We can provide guidance on selecting the correct stand-alone controller for your project and supply a transmission that is mechanically optimized to respond to that controller's commands.
For those who want a true turn-key solution, we partner with experts who can provide a pre-programmed controller tailored to your engine combo and vehicle specs. This systems approach ensures that when you install a Gearstar-built 4R70W transmission, you're getting a cohesive, high-performance drivetrain component, not just a collection of gears in a case.
Conclusion
The electronic nature of the 4R70W is a massive opportunity for those who harness it correctly. Moving from a restrictive factory computer to a programmable stand-alone 4R70W transmission controller is the final, critical step in any modern engine swap or serious performance build. It provides the reliability of correct communication and the thrill of complete tunability.
Don't let transmission electronics be the barrier to your Ford-powered project. Let us help you navigate the world of 4R70W transmission controllers or build you a transmission that's ready for your next ride.
