Description
APPLICATION: 2009, 20102, 2011, 2012, 2013, 2014, 2015 LSA ENGINES WITH 6L80E/6L90E AUTOMATIC TRANSMISSION AND E67 ECM
*NOT FOR USE WITH LS OR VORTEC ENGINE WITH AN INSTALLED LSA BLOWER*

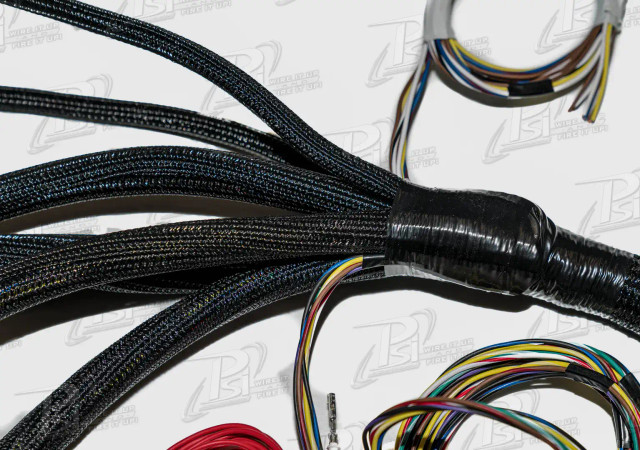

PARTS INCLUDED: Complete engine and transmission wiring Harness, Instruction Manual
LSA Engine Controller Kit Available Here
ADDITIONAL ITEMS REQUIRED: E67 ECM
CONNECTIONS FOR:
Fuse/Relay Box
Fuel Pump Control (Relay included)
Fan controls (Relays and fuse available separately KIT-1010)
Check Engine Light, Speedo output, Tachometer, OBD2 Port
IAC and TPS on DBC setups
MAF Sensor
MAP Sensor
Engine Coolant Temp Sensor
Alternator Control
(2) Upstream Oxygen Sensors
Crankshaft Position
Camshaft Position
Fuel Injectors
Coil Packs
Automatic or Manual Transmission control
Knock Sensors
Connections from the Harness You Will Need to Hookup:
Fuel Pump (Required)
Switched Ignition Power (Required)
Malfunction Indicator (Check Engine, MIL, CEL, ETC.)
Speedometer
Tachometer
Fan 1 Relay Control (Low Speed or Single Control)
Fan 2 Relay Control (High Speed or Second Fan Control)
Fan Relays available separately KIT-1010
NOTES: These Harnesses are designed for retrofitting '09 - '15 LSA engines with a 6L80E/6L90E automatic transmission into older muscle cars and street rods or newer non-emissions controlled vehicles. They are completely plug and play with four wire hookup (switched power, constant power and ground connections required). Harnesses are designed with a sliding grommet seal and 4 - 5 feet of length from the rear of the cylinder head to the PCM mounting position under the vehicle dashboard. A sliding grommet seal allows for professional, leak proof installation. Plugs directly into the Factory LSA Coil / Injector Sub-Harnesses.
Harnesses are professionally constructed from Brand New GM Delphi Connectors and TXL (Polyethylene Cross Linked) High Temperature Wire to GM Specifications. All Harnesses are 100% Quality Inspected prior to shipping. All Harnesses require PCM VATs removal, available through PSI. Please contact PSI for more information.
