Transmission Cooler line fittings

Transmission Cooler line fittings

For the first tech tip of the year, we are going to cover transmission cooler fittings. On our transmissions we mainly use male -6AN fittings on our transmissions. This will allow you to use braided stainless or braided nylon hose to run transmission cooler lines to your transmission cooler. With our transmissions we recommend using an external transmission cooler and bypassing the radiator. We do supply new external transmission coolers when you purchase a transmission directly from us. The most common question is what fitting the pressure side is and what fitting is the return side. You can use the pictures below to help with this.

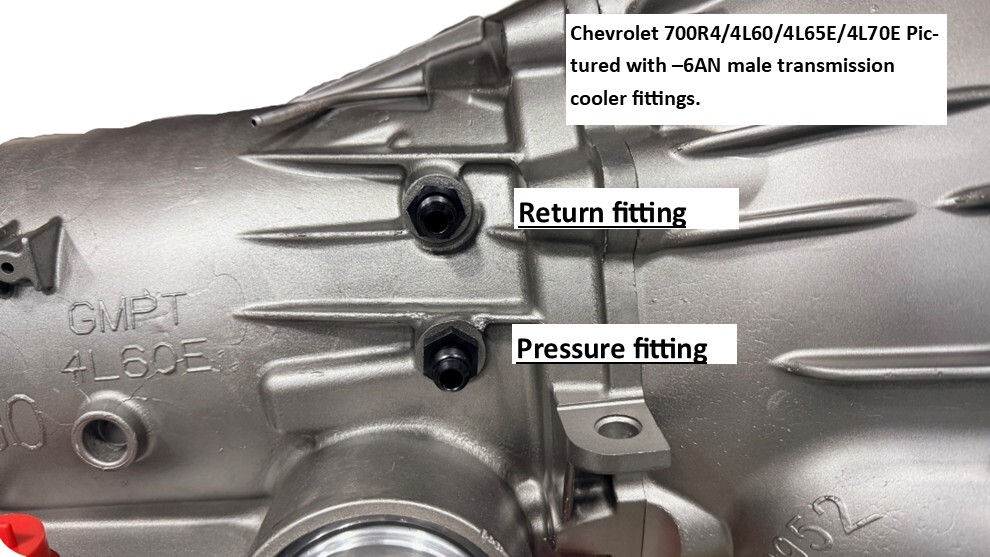

Chevrolet 700R4/4L60E/4L65E/4L70E

Top fitting is the return pressure side

Lower fitting is the pressure side

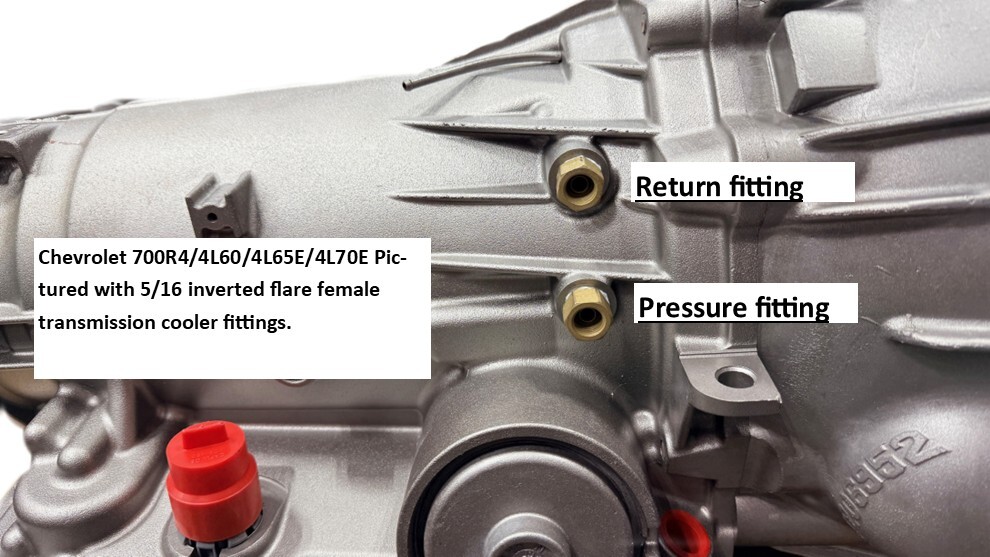

 700R4/4L60E/4L65E transmission cooler fittings

 700R4/4L60E/4L65E transmission cooler fittings

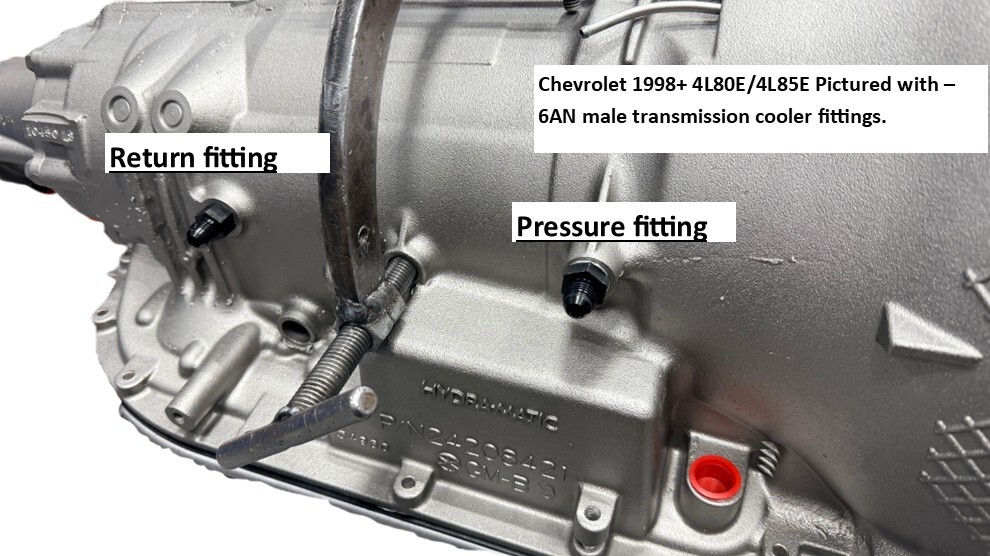

Chevrolet 4L80/4L85E 1998+ style case

Front fitting is the pressure side

Rear fitting is the return side

 4L80/4L85E transmission cooler fittings

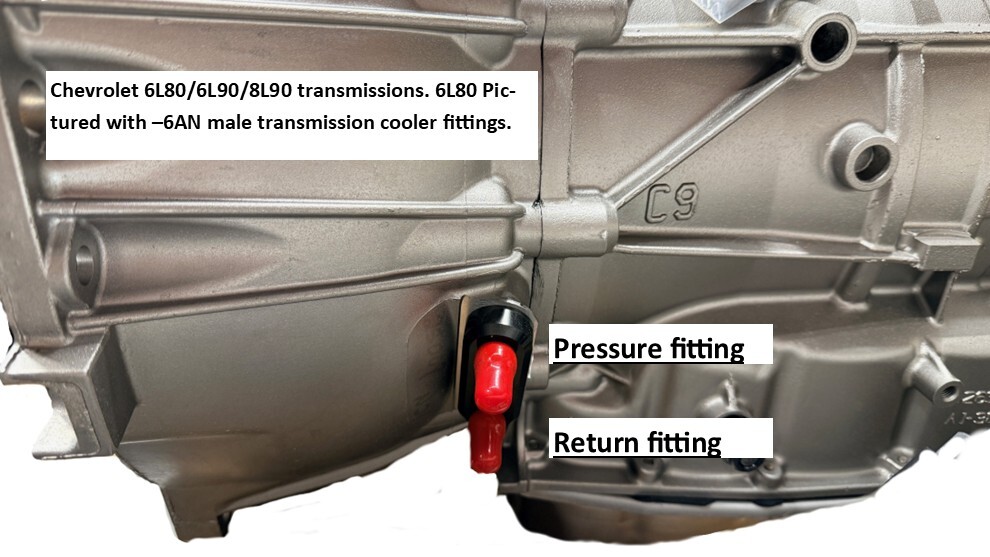

Chevrolet 6L80/6L90/8L90

Top fitting is the pressure side

Lower fitting is the return side

 6L80/6L90/8L90 transmission cooler fittings

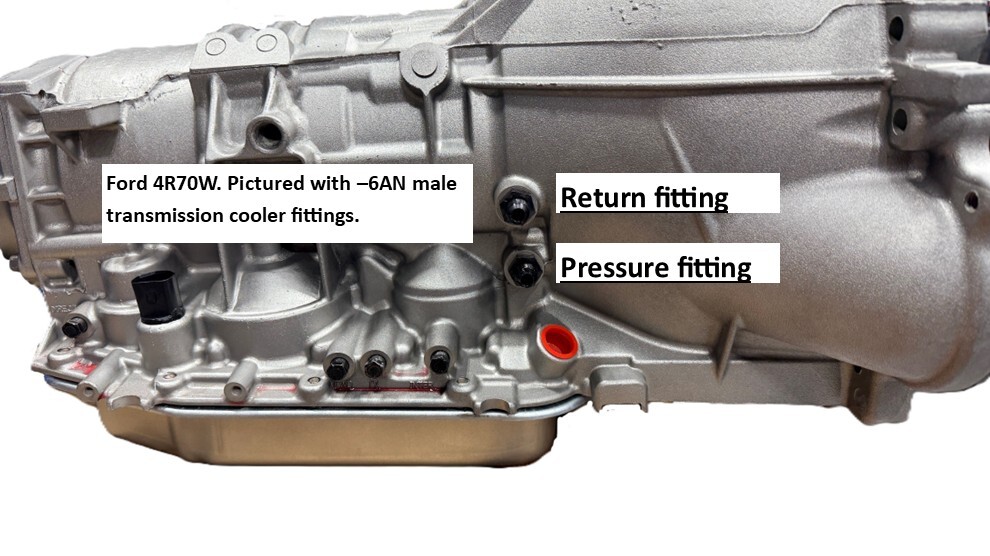

Ford 4R70W

Top fitting is the return side

Lower fitting is the pressure side

4R70W Transmission cooler line fittings
