The 700R4 transmission is a classic 4-speed automatic transmission, held in high regard among car enthusiasts for its quick launches, and off-the-line performance. Straight off the factory floor, the 700R4 was built to handle at least 350 lbs-ft, boasting ratings on its high-performance rebuilt versions of up to 1000 lbs-ft. The lower first gear ratio facilitates excellent low-speed handling, and its 30% overdrive improves fuel economy, making it popular among off-road enthusiasts seeking torque for heavy-duty applications. Torque ratings and horsepower limits depended on which version of the 700R4 a car was built with.
The 700R4 transmission is an 80s classic, and one of GMs last commonly built transmissions before the switch was made to electronically controlled automatic transmissions. Rebranded later as the 4L60, the 700R4 went through a variety of iterations, each improving or changing on the last. In some ways, it can be seen as the prototype to the kind of transmissions GM eventually brought to the market with the 4L60, 4L60E, and 4L65E.
Built as a 4-speed transmission for bigger vehicles and sports cars with higher torque and horsepower requirements, the stock 700R4 weighs in at around 170lbs dry and ranges in length from about 29.875 (on Corvettes) to 30.75 inches, including the aluminum housing.
Iterated upon throughout its lifetime, the 700R4 reached full maturity between 1987 and 1993, receiving several much-needed upgrades such as a thicker 30-spline input shaft (over the initial 27-spline input shaft, a common point of failure), upgraded oil pump housing, and an auxiliary valve body.
How Much Horsepower Can the 700R4 Transmission Handle?
The stock 700R4 transmission handles about 350 lbs-ft of torque, is rated as having enough torque to move a vehicle with a 6,000-pound GVWR. The main reason a 700R4 transmission might experience issues is due to excessive heat, improper adjustments, and heavy loads during towing. Other versions of the 700R4 were built to suit specific big-block engines such as the K case 700R4, built with a thicker and stronger housing for off-roading. That didn’t particularly improve its torque rating, but did improve transmission durability on rougher terrain. Rebuilt 700R4 transmissions have reached torque ratings well beyond the transmission’s initial stock levels, up to 1000 lbs-ft.
Modern rebuilt transmissions further push the boundaries of what’s possible with yesteryear’s technology. A rebuilt 700R4 can be rated for more than 1000 horsepower with the right materials, usually at the cost of weight.
Factors That Affect the 700R4’s Horsepower Capacity
Beyond horsepower, other factors determine how well the 700R4 will handle performance demands. Considerations such as age, vehicle weight, driving style, and cooling systems all impact the transmission’s longevity.
Driving Style and Vehicle Usage
Aggressive heavy-duty performance, frequent racing, or off-road use can strain the 700R4, especially if it’s handling high horsepower. The 700R4 transmission is commonly found in rear-wheel-drive vehicles, which are often used in aggressive performance scenarios. Older transmissions might have lost some of their capacity to efficiently transfer torque over the years, making a full rebuild necessary for high-performance use cases.
Cooling Systems and Temperature Management
High horsepower often leads to increased transmission temperatures, which can degrade the 700R4’s components over time. Excessive heat can damage the trans fluid, leading to burnt clutches and ultimately transmission failure. Installing a quality transmission cooler is crucial for maintaining performance and longevity, especially in modified or high-power builds, and it can be quite easy to do.
Vehicle Weight and Gear Ratios
Heavier vehicles place more strain on the transmission, so if your build includes a classic truck or an older, heavier car, reinforcing your 700R4 with new input/output shafts and a stronger housing may be a good idea. Updates made to the ring gear between 1984 and 1987 have significantly improved the performance and reliability of the 700R4 transmission. You could also look into comparable but stronger transmissions with electronic control, like the 4L65E or the 4L80E.
Upgrading the 700R4 for Better Horsepower Handling
If you’re aiming to push the 700R4 to handle increased horsepower, there are several effective modifications. From heavy-duty clutches to reinforced shafts, the following upgrades are key.
Heavy-Duty Clutches and Bands
Upgraded clutches and bands can help the 700R4 manage higher torque levels and prevent premature wear. The TV cable plays a crucial role in regulating hydraulic pressure for optimal shifting, and improper adjustment can lead to significant transmission issues. High-performance clutches designed for racing applications will support smoother gear shifts and better power handling.
Reinforced Input and Output Shafts
Reinforcing the transmission’s input and output shafts can handle higher horsepower and torque levels without breaking under pressure. These modifications are especially valuable if you plan on hard launches or aggressive acceleration.
Performance Valve Bodies and Shift Kits
Installing a performance valve body or shift kit can improve shift speed and consistency, allowing the 700R4 to handle increased horsepower with greater efficiency. These components help reduce lag between shifts, which is essential for racing and high-powered applications.
Alternatively, consider buying a completely rebuilt 700R4 to begin with. They save you the trouble of finding comparable and compatible kits, and you end up with a finely tuned professional package instead.
Comparing the 700R4 with Other GM Transmissions

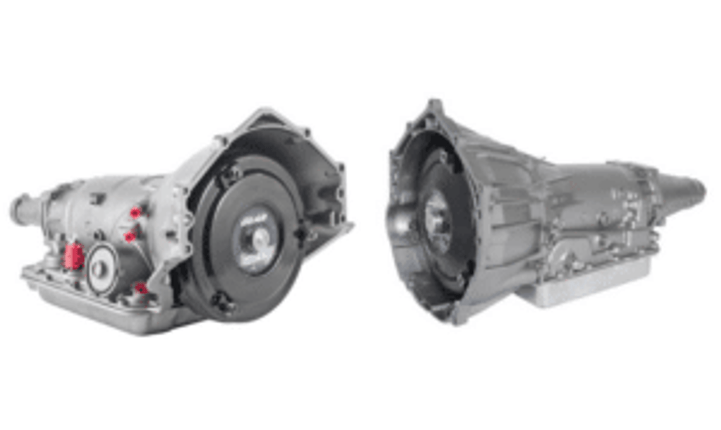

700R4 vs. 4L60E
The 4L60E is essentially an electronic version of the 700R4, offering more precise shifting and adaptability in modern vehicles. For newer builds or projects with newer GM engines, the 4L60E might be a better option due to its electronic controls, which allow for performance-oriented fine-tuning (or better fuel economy for a daily driver).
700R4 vs. 4L80E
For extreme power builds, the 4L80E transmission is a go-to option. This heavy-duty transmission is stronger and more resilient than the 700R4, but it’s also larger and may require additional modifications to fit. The 4L80E is typically ideal for builds with 700+ horsepower.
Classic Compatibility with the 200-4R
Another option for classic car enthusiasts is the 200-4R transmission, which is often preferred for its compact design and compatibility with older cars. The Pontiac Firebird is one of the classic vehicles that utilized the 700R4 transmission, highlighting its compatibility. While the 200-4R can handle high horsepower with upgrades, the 700R4 is often more readily available and has a higher stock power capacity, and much greater power ceiling with a few rebuild options.
Conclusion
Plenty of classic American 1980s and early 1990s trucks and high-performance vehicles featured a 700R4, before GM made the shift towards the 4L60E and further electronic upgrades. Working with an older transmission has its benefits, especially for older cars, but consider a rebuilt 700R4 if you need to bank on high-performance, or just want something more reliable than an early era 700R4 transmission.
Regular maintenance, including changing the transmission fluid, is crucial to ensure the 700R4 transmission’s longevity and performance.
Choosing the 700R4 for your build can provide an excellent balance between power and durability when upgraded correctly. Whether restoring a classic or building a high-powered project car, a carefully chosen and modified 700R4 transmission can be the perfect fit for your ride.
