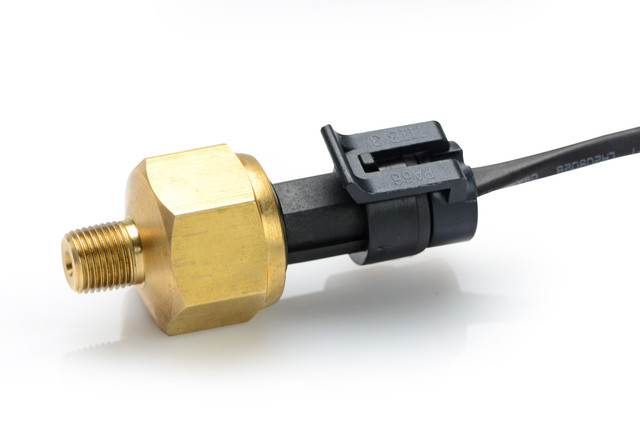

The SEN-03-9 is a 1/8" NPT solid state pressure sender rated for 0-300psi, designed to work with the Dakota Digital BIM-03-2 pressure module. This sender provides accurate pressure readings for display as an additional gauge within compatible RTX, HDX, VHX and VFD3 (rev G) instrument systems.
With its solid state design, the SEN-03-9 offers phenomenal accuracy and can be used to monitor general pressure (generic fluid or air), fuel pressure, air pressure, or boost/vacuum, depending on the configuration selected in the BIM-03-2 module.
Note that the BIM-03-2 module is required to interface this sender with a compatible Dakota Digital instrument system equipped with a black plastic control module. Earlier instrument systems with an aluminum control module are not capable of BIM connectivity.
Key Features
- Solid state construction for phenomenal accuracy
- 1/8" NPT thread for direct installation
- Compatible with RTX, HDX, VHX and VFD3 (rev G) instrument systems via the BIM-03-2 pressure module
- Supports multiple pressure display functions: Pressure, Fuel Pressure, Air Pressure, and Boost/Vacuum
Specifications
- Part Number: SEN-03-9
- Thread Size: 1/8" NPT
- Range: 0-300psi
- Resolution: 1
- Low Warning: 0-252
- High Warning: 48-300
Notes
- Requires the BIM-03-2 pressure module (sold separately) for gauge display compatibility
- For instrument systems with a 3.5mm headphone jack BIM input, adaptor harness part number 394193 is required
- Not compatible with earlier instrument systems featuring an aluminum control module
- For diesel fuel pressure applications, a snubber adaptor should be added before the sensor to protect it from damaging high pressure spikes
