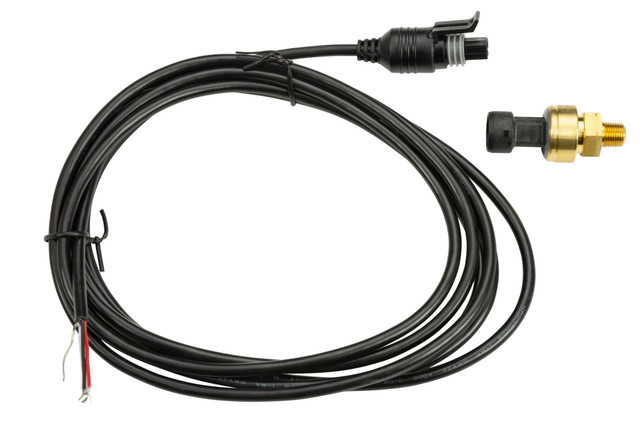

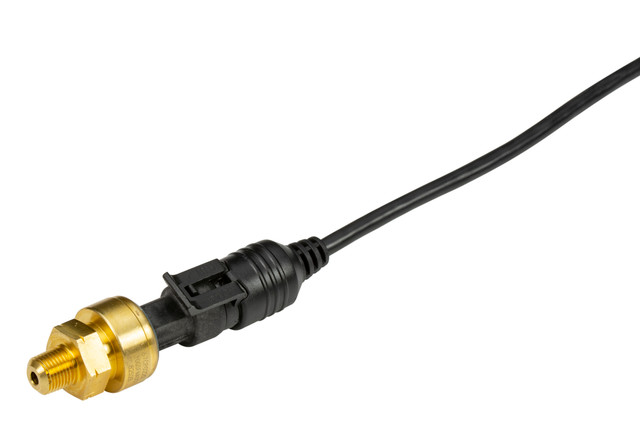

The SEN-03-8 is a three-wire, solid state oil pressure sensor designed to work with the Dakota Digital BIM-03-2 pressure module, enabling an additional pressure reading on compatible RTX, HDX, VHX, and VFD3 (rev G) instrument systems. This sender delivers excellent accuracy and can be used to monitor fluid pressure, fuel pressure, or air pressure applications.
Featuring a 1/8" NPT thread and a 0-100 PSI range, the SEN-03-8 provides precise, solid state readings for use in custom gauge setups where a dedicated pressure channel is desired.
Key Features
- Solid state design for phenomenal accuracy
- Three-wire sender construction
- 1/8" NPT thread for direct installation
- Compatible with the BIM-03-2 pressure module for use with RTX, HDX, VHX, and VFD3 (rev G) gauge systems
- Suitable for fluid, fuel, or air pressure monitoring
Specifications
- Part Number: SEN-03-8
- Thread Size: 1/8" NPT
- Pressure Range: 0-100 PSI
- Resolution: 0.2
- Low Warning: 0-63
- High Warning: 9-99
- Sender Type: Solid State, Three-Wire
Notes
- Requires the BIM-03-2 pressure module (sold separately) for display compatibility with RTX, HDX, VHX, and VFD3 (rev G) gauge systems
- Compatible only with Dakota Digital instrument systems using a black plastic control module; earlier aluminum control modules are not BIM-compatible
- For diesel fuel pressure applications, a snubber adaptor should be installed before the sensor to protect it from high pressure spikes
