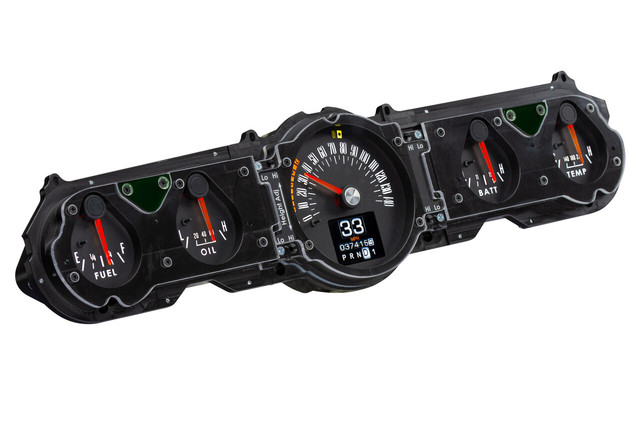

The Dakota Digital RTX-65F-MUS-X RTX Instrument System is designed to bolt directly into your stock or reproduction bezel for 1965 GT and Pony interiors and all 1966 Mustangs, retaining the factory design elements while adding modern electronic capability. A full-color TFT message center and a hidden LED bar-graph tachometer are built into the system, with the tachometer displayed around the outside of the speedometer sweep for a clean, OEM-style appearance.
As part of the RTX series, this system is built to preserve the stock look of the original dash while delivering late-model features. Every effort has been made to incorporate OEM design elements into the layout, face styling, and indicators, so at a casual glance the gauges appear original - until the LED backlighting is switched on in your chosen color scheme.
Each RTX system starts with CNC-machined housings filled with electronics engineered and built in-house by Dakota Digital. The high-definition TFT message center can be configured to display a wide range of information, and the system uses a central control box to simplify installation and setup. This system uses the OEM bezel, which is not included.
Key Features
- Retains factory gauge layout and face styling for an OEM appearance
- Full-color TFT message center integrated into the gauge cluster
- Hidden LED bar-graph tachometer displayed around the speedometer sweep

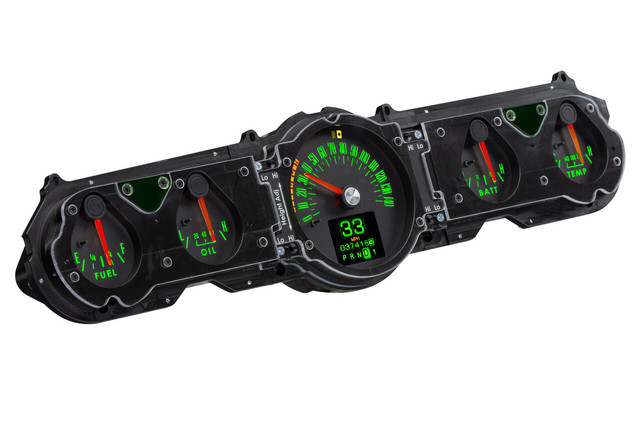

- Over 30 user-selectable colors for needle, sweep, and TFT display
- 12 factory preset color themes or fully custom color zone selection
- Full LED backlighting with independent daytime and nighttime themes
- Programmed and operated via included two-sided pushbutton rocker switch
- Configurable through free mobile app for Android and Apple devices

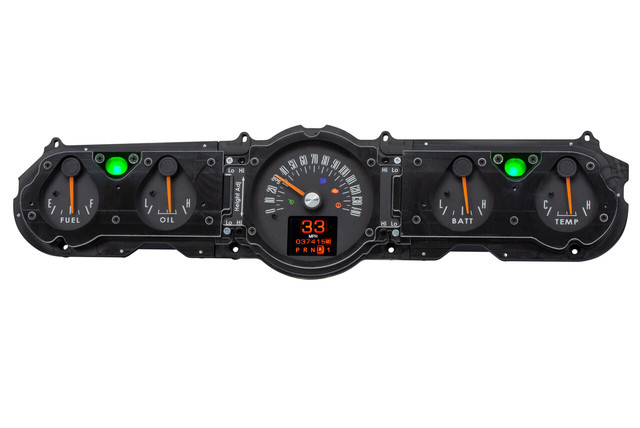

- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, and more
- Two auxiliary input indicators with user-programmable labels
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
Specifications
- Part Number: RTX-65F-MUS-X
- Fitment: 1965 Ford Mustang GT/Pony and all 1966 Ford Mustang
- Speedometer: 0-140 MPH
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Tachometer: 0-8,000 RPM (LED bar graph)
- Standard Displays: Odometer, Dual (A/B) Trip Meter, 12-hour Clock, Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH Timer, 1/4 and 1/8 mile time and trap speed, High Speed Recall, High RPM Recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground-isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator replacing Ford and/or GM style speedometer cables, with 10 ft harness (requires approximately 5" clearance; optional relocation part 130011 sold separately when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Kit Includes
- RTX instrument cluster with central control box
- Two-sided pushbutton rocker switch
- Included buzzer for button-press feedback
- Water temperature and oil pressure sensors with harnesses
- Cable driven speed sensor/generator with harness
- Assorted NPT and metric thread bushings
Notes
- System is designed to use the OEM bezel; bezel is not included
- Optional GSS-3000 sensor required for Gear Position indicator functionality
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
- Optional GPS-50-2 can be used to eliminate the need for speedometer calibration
- Not all OEM indicator lamp functions are replaced; unused indicators may be repurposed as needed
