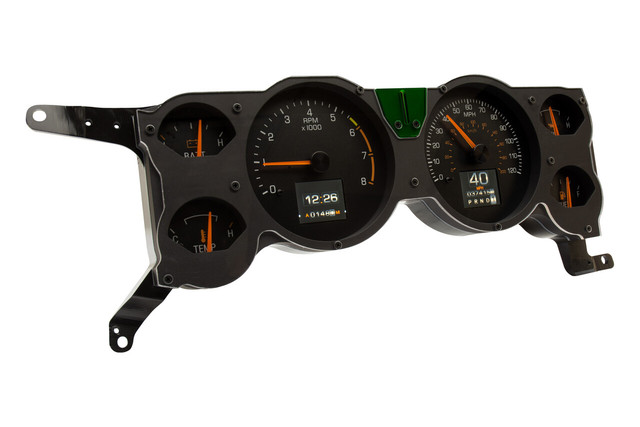

The Dakota Digital RTX-79F-MUS-X is a direct-fit RTX Series instrument system for 1979-86 Ford Mustang models, designed to retain the stock gauge layout and face styling while adding late-model features and technology. OEM design elements are incorporated into the layout, face styling and indicators, so the system presents a factory appearance until the LED backlighting is activated, revealing a fully customizable color scheme.

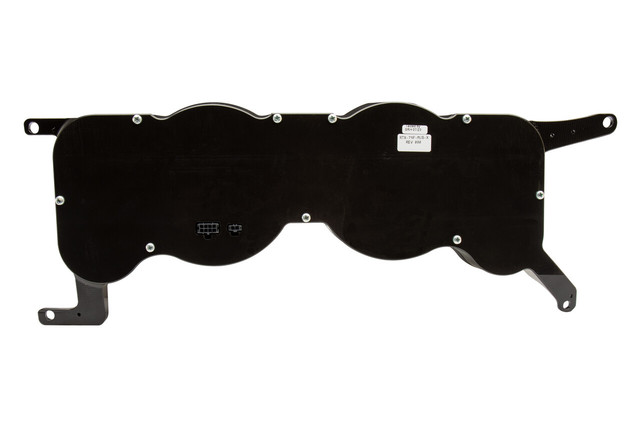

Each gauge housing is CNC machined and filled with electronics designed and built in-house by Dakota Digital. A high-definition TFT message center can be configured to display a wide range of vehicle information, and the system utilizes a central control box to simplify installation and setup.

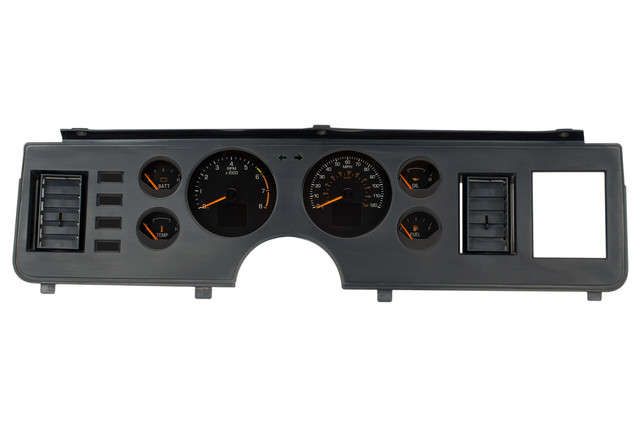

This system uses an OEM or reproduction style bezel; the bezel is not included.
Key Features
- Analog gauges with OEM-style layout and full LED backlighting
- High-definition TFT digital message center with configurable displays
- Over 30 user-selectable color options for independent control of needle, sweep, and digital display colors
- 12 factory preset color themes or fully custom color zone selection
- Adjustable daytime and nighttime brightness, toggled by the headlight switch
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, and more
- Two auxiliary input indicators with user-programmable labels
- Pushbutton control via included two-sided rocker switch for setup and operation
- Configurable through a free mobile app for Android and Apple devices, providing menu navigation and real-time gauge readouts
Specifications
- Part Number: RTX-79F-MUS-X
- Speedometer: 0-120 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, Million Mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty display
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces Ford and/or GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Kit Includes
- RTX instrument cluster with analog gauges and TFT message center
- Central control box
- Two-sided pushbutton rocker switch
- Water temperature and oil pressure sensors with 10 ft harnesses
- Cable driven speed sensor/generator with 10 ft harness
- Assorted NPT and metric thread bushings
Notes
- Bezel not included; system is designed to use an OEM or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Gear Position indicator requires optional GSS-3000 sensor, sold separately
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required
- Speedometer calibration is not required if a GPS-50-2 is used
