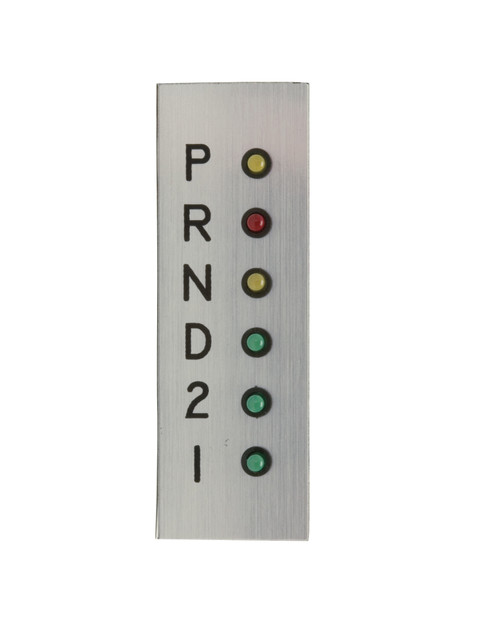

The Dakota Digital DGS-12-V is a 12VDC LED Gear Position Indicator plate designed for surface mount applications in a vertical orientation. This version does not include an overdrive position, making it ideal for transmissions without an OD gear.
The plate is installed by drilling holes for the LEDs through the dash and routing wire from the LEDs into the dash. When the plate is placed against the dash, it is held securely in place by the LEDs themselves.
Constructed of acrylic material with a textured silver face, the indicator plate replicates the look of brushed aluminum, offering a budget-friendly alternative to metal indicator panels.
Key Features
- Vertical orientation LED gear position indicator
- Without overdrive (OD) position
- Textured silver acrylic face replicates a brushed aluminum appearance
- Surface mount installation; plate is held in place by the LEDs
- 12VDC operation
Specifications
- Part Number: DGS-12-V
- Orientation: Vertical
- Gear Positions: Without Overdrive
- Dimensions: 1" x 3" x 1/16" thick
- Material: Acrylic with textured silver face
- Voltage: 12VDC
Notes
- GSS-3000 is sold separately and is required to operate this display
