Description
Description
The Dakota Digital VCM-101 Velocity Commander Cruise Control System brings modern, reliable cruise control to newer drive-by-wire GM drivetrains and electronics. Engineered and produced in Sioux Falls, South Dakota, the VCM-100 Series base unit is designed to work with OEM OBD-II/CAN systems or aftermarket EFI systems with electronic pedal control, including LS applications.
This VCM-101 base unit includes both Early and Late GM inline 6-pin pedal harnesses and an OBDII harness, simplifying installation for GM drive-by-wire throttle body and pedal applications. A proprietary setup wizard, accessed through the Dakota Digital mobile app, guides users through installation, setup, and troubleshooting for smooth, dependable cruise operation.
Key Features
- Compatible with Drive by Wire throttle bodies and pedals
- Configurable via the Dakota Digital mobile app with built-in setup and troubleshooting wizard
- Onboard diagnostics with built-in seven-segment and separate LED indicators
- Monitors Speedometer and Tachometer information through OBD-II, aftermarket EFI CAN data, or direct Speedometer and Tachometer connection
- Activation output wire to drive a dash mount cruise control indicator light
- Plug-and-play compatible with LED tail lights without requiring a separate relay
- Clutch switch input for simple connectivity with manual transmissions
- Redundant safety features integrated throughout for reliable operation

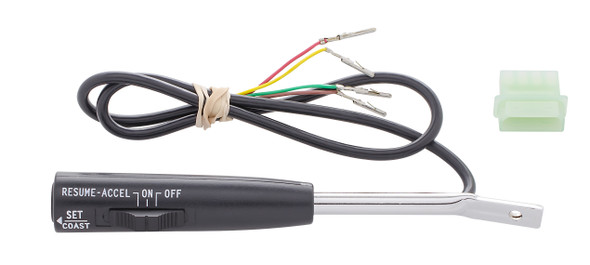

- Can learn many OEM and aftermarket resistive or non-resistive cruise control handles (handles sold separately)
Specifications
- Part Number: VCM-101
- Pedal Compatibility: Early/Late GM inline 6-pin drive-by-wire pedal harnesses
- Speedometer/Tachometer Interface Options: Direct OBD-II CAN, aftermarket EFI compatible (AEM, Aces, Holley, Haltech, FiTech, MegaSquirt), direct Speedometer and Tachometer connections, or user configurable CAN messages (250k-1M baud, standard and extended ID)
- Warranty: Limited 5-Year Warranty

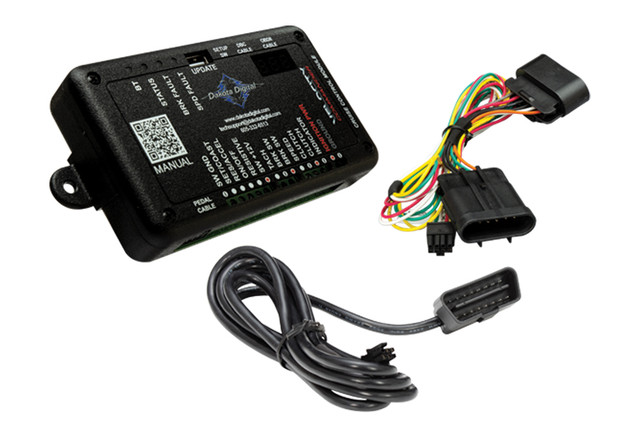

Kit Includes

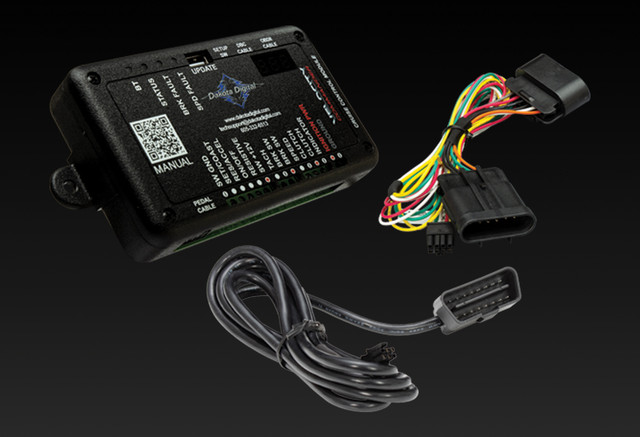

- VCM-101 Velocity Commander base unit

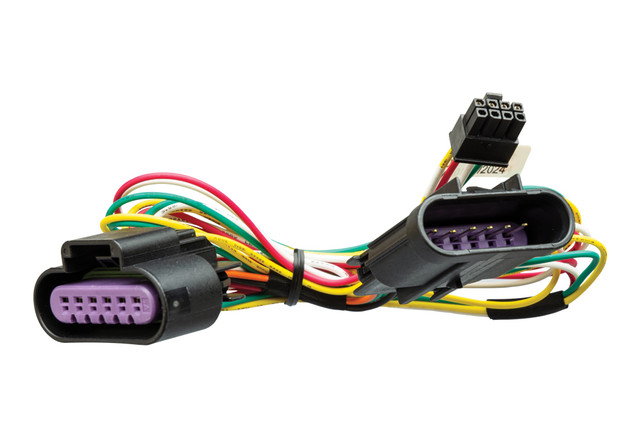

- Early GM inline 6-pin pedal harness
- Late GM inline 6-pin pedal harness

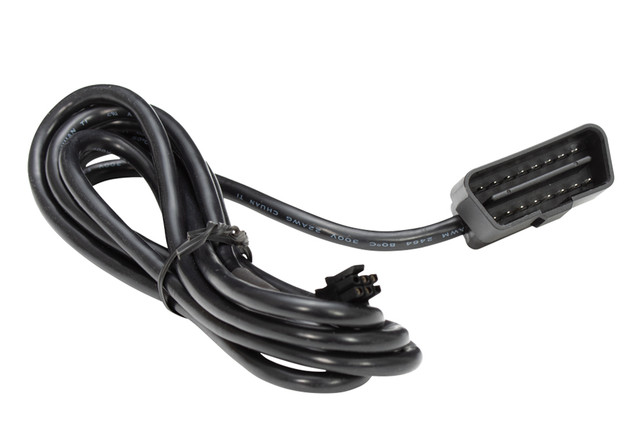

- OBDII harness
Notes
- Cruise control handle is purchased separately
- Optional EFI harness available for compatible aftermarket EFI systems
