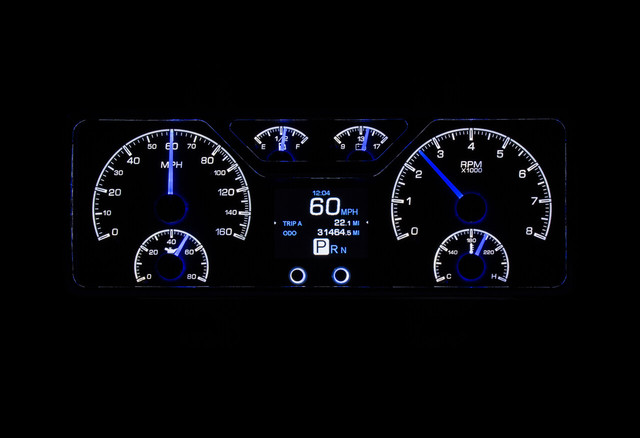

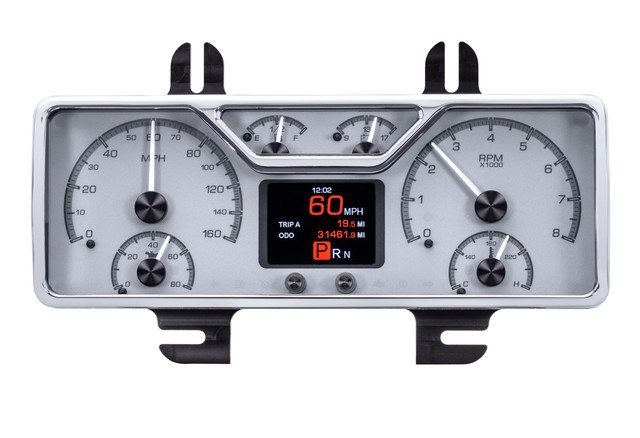

The Dakota Digital HDX-40F-S is a direct-fit HDX instrument system designed specifically for the 1940 Ford car dashboard, featuring a silver alloy gauge-face styling. This kit includes a chrome plated, machined bezel that restores the iconic look of the original 1940 dash while incorporating modern electronics, including a full-color TFT message center integrated into an OEM-styled housing.
Engineered to fit the stock dash opening of 1940 Ford cars, this system combines classic style with advanced features. Calibration and personalization are handled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices, and each needle hub is finished in black nickel plated spun-aluminum to match the control buttons.
Key Features
- Chrome plated, machined bezel styled to match the stock 1940 Ford dash opening
- Silver alloy gauge-face styling
- Full-color TFT digital message center

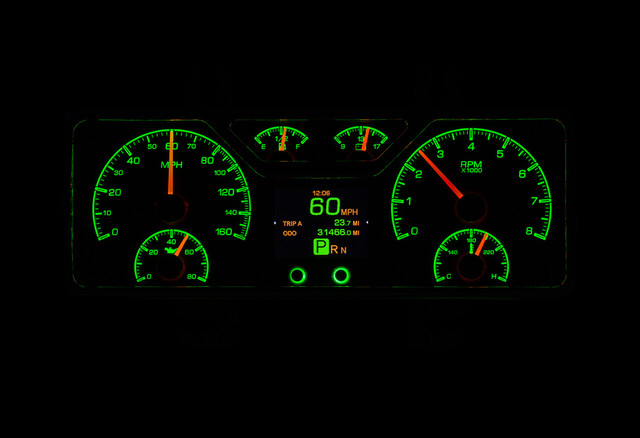

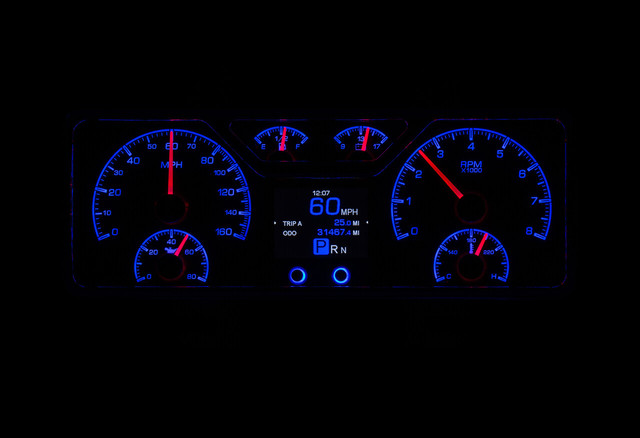

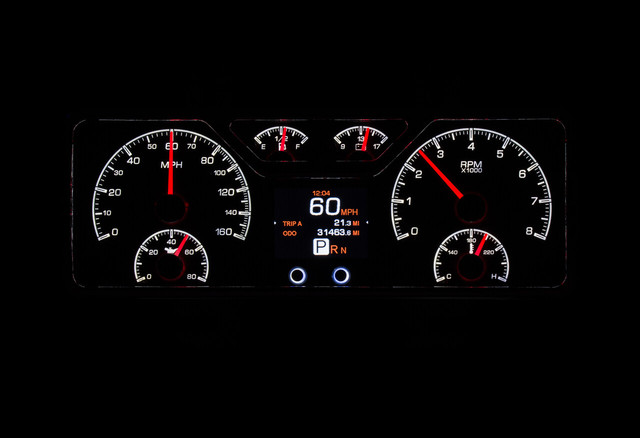

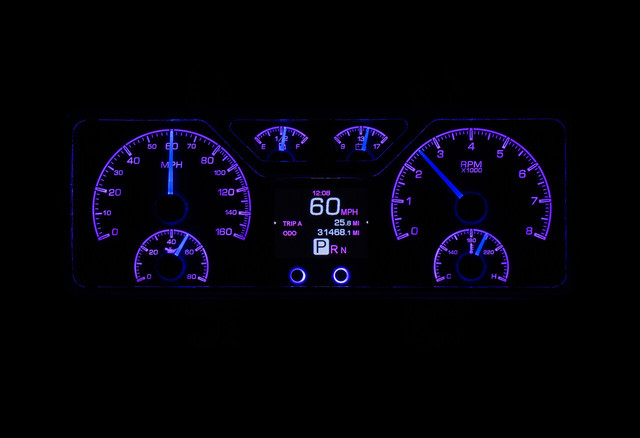

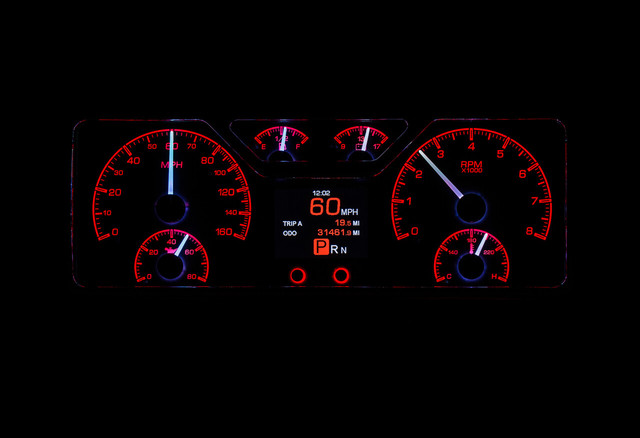

- Over 30 user-selectable color options for independent control of needle color, sweep color, and digital TFT display color
- 12 factory preset color themes or fully customizable color zones
- Full LED/RGB backlighting with adjustable daytime and nighttime brightness, toggled by the headlight switch
- Built-in capacitive-touch pushbutton controls on the gauge face
- Bluetooth app connectivity for Apple and Android devices for setup and real-time gauge readouts
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red, settable warning light built into each analog gauge sweep
- Central control box simplifies installation using vehicle-harness sourced signals and included solid state sending units
Specifications
- Part Number: HDX-40F-S
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
- Required System Opening: 3.90" x 10.50"
- Required Clock Opening: 2.5" x 3.56"
- Gauge-Face Styling: Silver
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces Ford and/or GM style speedometer cables, includes 10 ft harness
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
Depth will generally mimic the stock gauge cluster, typically falling in the 1.5"-2.5" range. An optional GSS-3000 sensor is required for gear position indication. Part number 130011 is available separately for relocating the pulse generator when additional clearance is needed. The DIM-1 is a common accessory for adding on-the-fly rotary brightness control. Installation in a vehicle other than its intended application may present mounting and viewing angle challenges; any necessary modifications should be made to the vehicle's dash rather than the HDX system to preserve warranty coverage.
