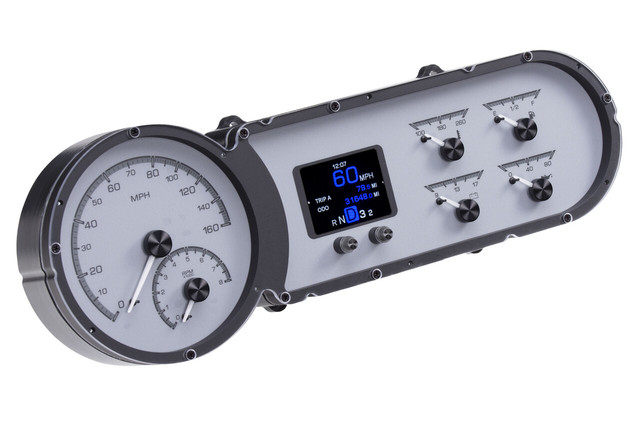

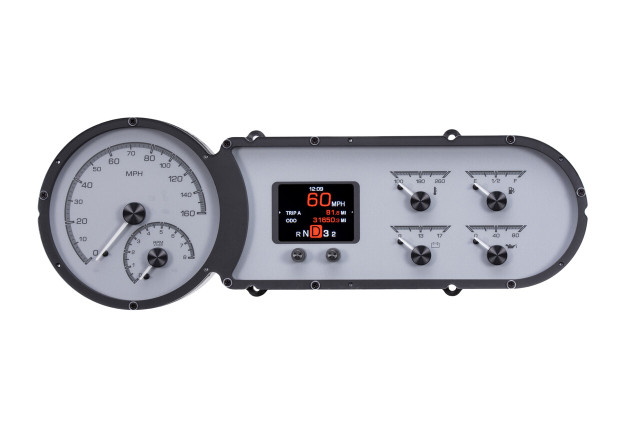

The Dakota Digital HDX-53C-S is a complete HDX instrument system designed to fit the stock instrument bezel location on 1953-54 Chevy cars, featuring a silver alloy gauge-face finish. A large TFT message center is flanked by six analog instruments, all nestled into a machined housing that fits into a small opening cut into the stock dash for a clean, all-in-one instrumentation solution.
Each HDX system allows independent selection of illumination colors for the gauge readings, needles, and message centers, with calibration and personal settings controlled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Needle hubs are black nickel plated spun-aluminum to match the control buttons. The system is simplified for installation thanks to a central control box that uses vehicle-harness sourced signals along with supplied, solid-state sending units that connect cleanly to their respective terminals.
Key Features
- Silver alloy gauge-face styling
- Large TFT digital message center flanked by six analog gauges
- Over 30 user-selectable color options for needles, sweep, and digital display
- 12 factory preset color themes, plus full custom color zone selection

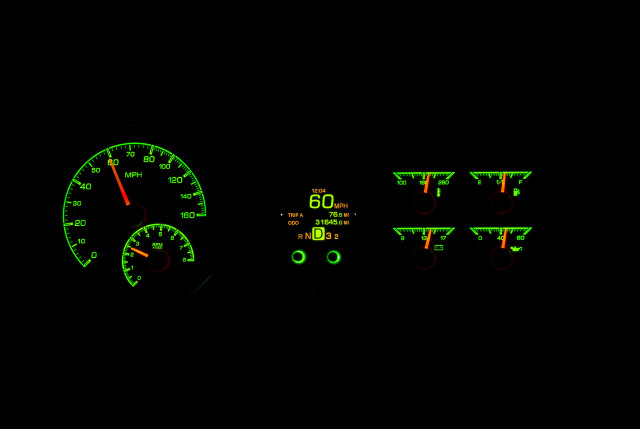

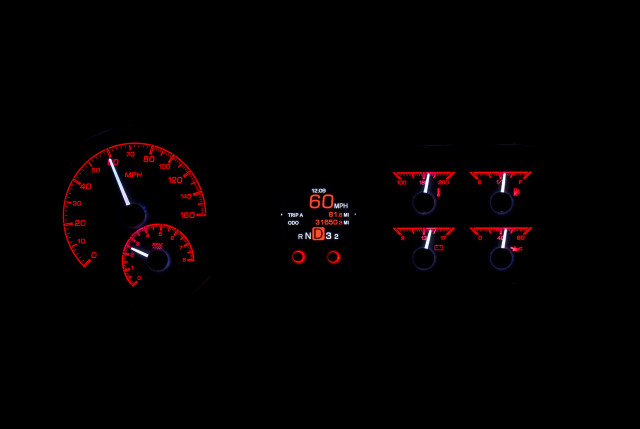

- Full LED/RGB backlighting with separate day and night themes
- Capacitive-touch button controls plus Bluetooth app compatibility (Apple and Android)
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red, settable warning light built into each analog gauge sweep (except speedometer)
- Black nickel plated spun-aluminum needle hubs matching the control buttons
- Central control box with vehicle-harness sourced signals and solid-state sending units for simplified installation
Specifications
- Part Number: HDX-53C-S
- Speedometer: 0-160 MPH, split scale resolution of 120 MPH with a 160 MPH top end range
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: one-time user settable, million mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH timer, 1/4 and 1/8 mile time and end speed (trap speed), high speed recall, high RPM recall
Notes
- Bezel not included; system uses an OEM or reproduction style bezel
- Gear Position indicator requires the optional GSS-3000 sensor
- DIM-1 accessory available separately for on-the-fly rotary brightness control
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as desired
