Description

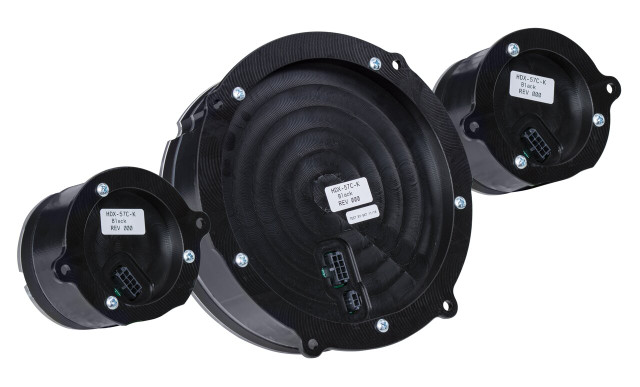

The Dakota Digital HDX-57C-S brings a complete digital dash upgrade to the iconic 1957 Chevy car, housed in the classic triple-round gauge cluster. This HDX System combines six analog gauge readings with a bright TFT message center, allowing the driver to monitor nearly every drivetrain parameter without sacrificing the look of the original dashboard.
This system features silver gauge-face styling and uses the OEM or reproduction style bezel for installation. Reproduction chrome trim inserts are available separately and require the cast-metal housing for proper installation.
Independent illumination colors can be selected for the gauge readings, needles, and message centers, with calibration and personal settings controlled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. A central control box simplifies installation by using vehicle-harness sourced signals along with supplied solid state sending units that connect cleanly to their respective terminals.
Key Features
- Triple-round gauge cluster with six analog gauges plus a TFT digital message center
- Silver gauge-face styling
- Independently selectable illumination colors for needles, gauge sweeps, and digital display, with over 30 user-selectable color options
- 12 factory preset color themes or fully custom color zone selection
- Full LED/RGB backlighting for sharp day and night visibility
- Built-in capacitive-touch pushbuttons with LED-lit control through the gauge face
- Bluetooth app control and configuration for Apple and Android devices
- Black nickel plated spun-aluminum needle hubs matching the control buttons
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable auxiliary indicators
- Red, settable warning light built into each analog gauge sweep
- Central control box for simplified installation using vehicle-harness sourced signals
- Adjustable daytime and nighttime brightness, toggled by the headlight switch
Specifications
- Part Number: HDX-57C-S
- Speedometer: 0-160 MPH, split scale resolution of a 120 MPH speedometer with 160 MPH top end range
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, Million Mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty display
- Performance Meters: 0-60 MPH Timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Gauge pod and chrome inserts are not included
- System uses OEM or reproduction style bezel
- Reproduction chrome trim inserts (BZL-57C) are available separately and require the cast-metal housing for installation
- Matching clock for the passenger side (HLC-57C) is available separately; the HLC-57C clock cannot be used without an HDX system
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- Optional GSS-3000 sensor required for Gear Position indicator
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
- GPS-50-2 may be used to eliminate the need to calibrate the speedometer
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
