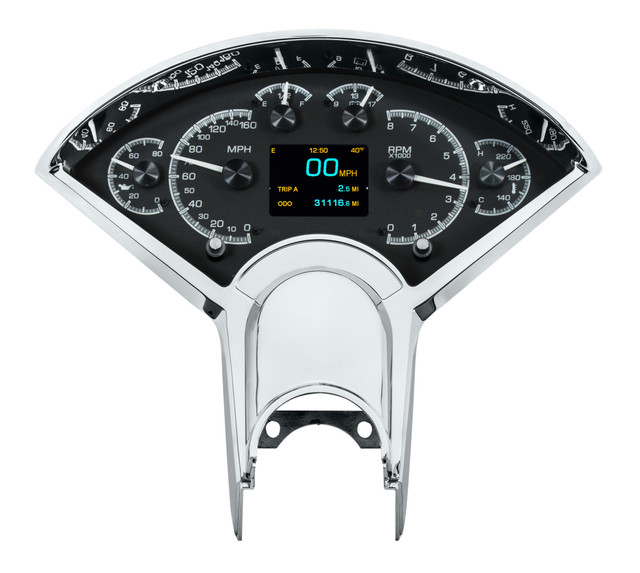

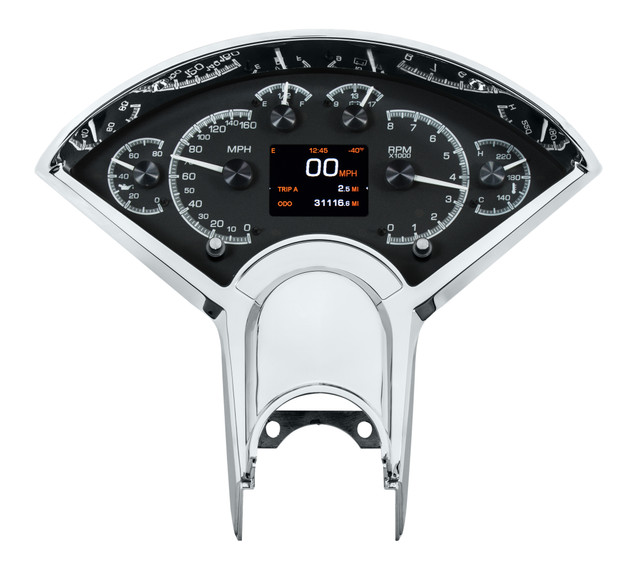

The Dakota Digital HDX-55C-K brings a fully customizable digital instrument system to the 1955-56 Chevy car, finished in black gauge-face styling. As one of Dakota Digital's original direct-fit applications, this HDX system installs into your stock or reproduction bezel and pairs a large TFT display with six analog gauge readings for a dramatic blend of classic and modern technology.
Users can independently select illumination colors for the gauge needles, sweeps, and message center displays, with calibration and personal settings managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the control buttons, creating a cohesive, upscale appearance.
All HDX instrument systems feature dead-faced indicators for turn signals, high beam, check engine, cruise control, parking brake, and two user-definable functions, plus a red, settable warning light for each gauge. A central control box simplifies installation by sourcing signals from the vehicle harness and connecting supplied, solid state sending units cleanly to their respective terminals.
Key Features
- Black gauge-face styling with six analog gauges and a large TFT digital message center
- Over 30 user-selectable color options for independent control of needle, sweep, and digital display colors
- 12 factory preset color themes, or fully custom color zone selection
- Full LED/RGB backlighting for sharp daytime and nighttime visibility with separate theme options
- Onboard capacitive touch pushbuttons with button-press feedback via the TFT message center or included buzzer
- Full system calibration and control available through the free Dakota Digital Bluetooth app
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, and parking brake
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
- Black nickel plated spun-aluminum needle hubs to match the capacitive touch buttons
- Central control box with vehicle-harness sourced signal wiring for simplified installation
Specifications
- Part Number: HDX-55C-K
- Speedometer: 0-160 MPH, split scale resolution of a 120 MPH speedometer
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, million mile
- Dual (A/B) trip meter: 0-9,999.9
- 12-hour clock with estimated range/miles to empty
- Performance meters: 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator with 10 ft harness, replacing GM style speedometer cables (requires approximately 5" clearance between the cable drive output and any obstruction)
- Bushing kit including 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system uses an OEM or reproduction style bezel
- Replacement chrome bezels available separately as CHC-55C
- HLC-55C clock is available separately and designed as a complement to this HDX system
- System eliminates the stock automatic gear shift indicator above the steering column; add the GSS-2000 Gear Shift Sensor (sold separately) to display gear position
- Gear position indicator requires optional GSS-3000 sensor
- DIM-1 accessory available separately for on-the-fly rotary brightness control
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- Not all OEM indicator lamp functions are replaced; unused indicators may be repurposed as needed
