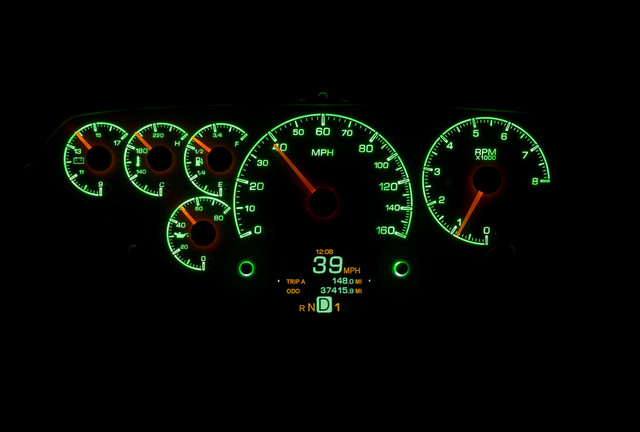

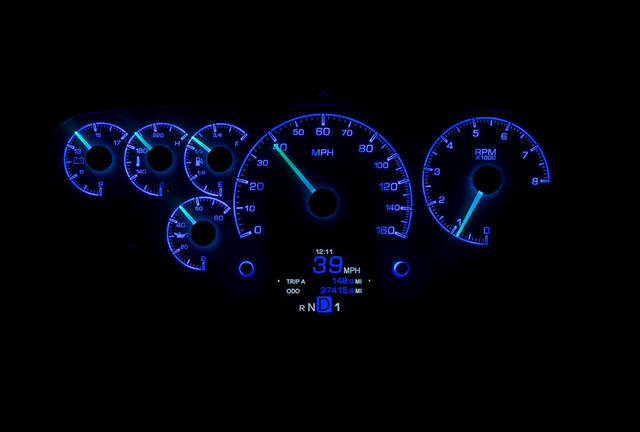

The Dakota Digital HDX-55C-PU-K is a complete HDX instrument system engineered specifically for 1955-59 Chevy pickup trucks (does not fit GMC). This V-shaped cluster retains the classic factory look while delivering modern digital technology, featuring a single TFT display at center that allows the driver to view exactly the information desired. This version comes with black gauge-face styling.
Each HDX system allows the user to independently select illumination colors for the gauge needles, sweeps, and message center displays. Calibration and personal settings are controlled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Needle hubs are black nickel plated spun-aluminum to match the control buttons.
Installation is simplified through a central control box that sources signals from the vehicle harness and uses supplied solid-state sending units that connect cleanly to their respective terminals. The system uses an OEM or reproduction style bezel, which is not included.
Key Features
- Single center-mounted TFT digital message center display
- Black gauge-face styling with user-selectable illumination colors for needles, sweeps, and digital displays
- Over 30 user-selectable color options plus 12 factory preset color themes
- Full LED/RGB backlighting with independent day and night themes
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable auxiliary indicators
- Red, settable warning light for each analog gauge
- LED-lit onboard capacitive touch pushbuttons for setup and operation
- Bluetooth app support for Apple and Android devices for configuration and real-time gauge readouts
- Black nickel plated spun-aluminum needle hubs
Specifications
- Part Number: HDX-55C-PU-K
- Gauge Face Color: Black
- Speedometer: 0-160 MPH (split scale resolution of a 120 MPH speedometer, top end range of 160 MPH)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, million mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12-hour format
- Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH timer, 1/4 and 1/8 mile time, 1/4 and 1/8 mile trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system uses an OEM or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required
- DIM-1 is a common accessory for on-the-fly rotary brightness control (sold separately)
- GPS-50-2 may be used to eliminate the need for speedometer calibration
