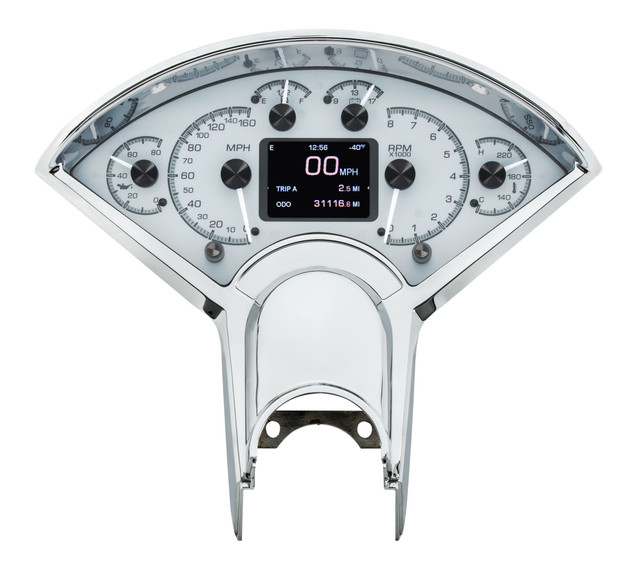

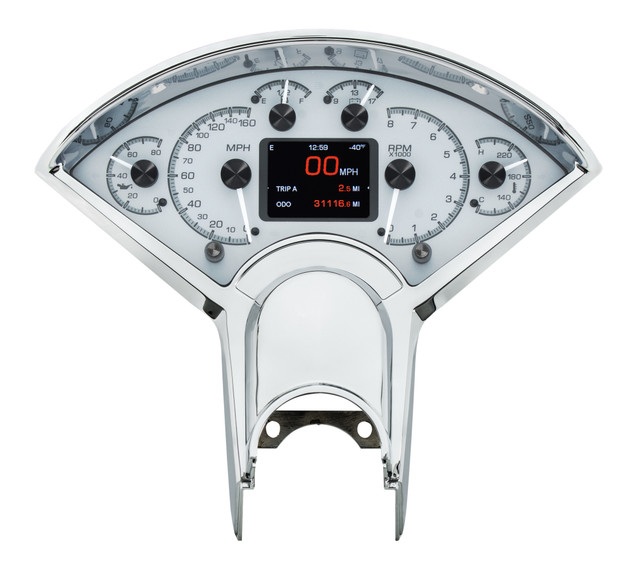

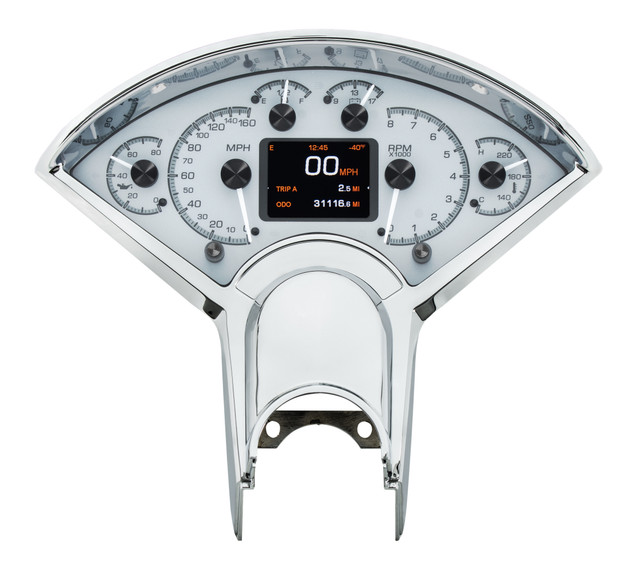

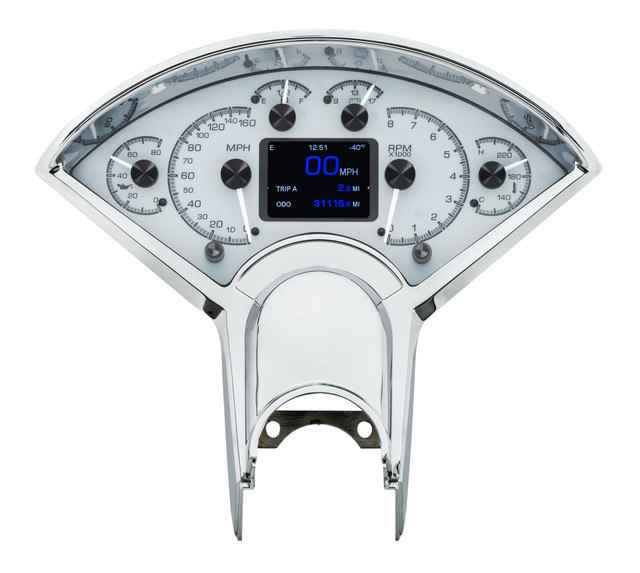

The Dakota Digital HDX-55C-S is a direct-fit HDX instrument system engineered specifically for 1955-56 Chevy cars, one of the most iconic and customized platforms in automotive history. This Silver Face system installs into your stock or reproduction bezel and pairs six analog gauge readings with a large TFT display for expanded digital message center functionality.
Each HDX system allows independent illumination color selection for gauge readings, needles, and message centers, with calibration and personal settings managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Needle hubs are black nickel plated spun-aluminum to match the control buttons, and a central control box simplifies installation using vehicle-harness sourced signals along with supplied solid state sending units.
All HDX instrument systems feature dead-faced indicators, including turn signals, high beam, check engine, cruise control, and parking brake, plus two user-definable indicators, along with a red, settable warning light for each gauge.
Key Features
- Silver gauge-face styling with six analog gauges and a large TFT digital display
- Over 30 user-selectable color options for independently changing needle, sweep, and digital display colors
- 12 factory preset color themes, or full custom color zone selection
- Full LED/RGB backlighting with separate daytime and nighttime themes
- Onboard capacitive-touch pushbutton controls with LED-lit feedback through the gauge face
- Bluetooth app control and real-time gauge readouts for Apple and Android devices
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, and parking brake, plus two user-definable indicators
- Red, settable warning LED indicator built into each analog gauge sweep (except speedometer)
- Black nickel plated spun-aluminum needle hubs to match control buttons
- Central control box with vehicle-harness sourced signal wiring for simplified installation
Specifications
- Part Number: HDX-55C-S
- Speedometer: 0-160 MPH, split scale provides resolution of a 120 MPH speedometer with a top end range of 160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Standard Displays: Odometer (one-time user settable, million mile), Dual (A/B) Trip Meter (0-9,999.9), Clock (12 hour), Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH Timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with a 10 ft harness; sensor requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system uses an OEM or reproduction style bezel
- Reproduction chrome bezels available separately as part number CHC-55C
- Instrument system eliminates the stock automatic gear shift indicator above the steering column; add GSS-2000 Gear Shift Sensor (sold separately) to display gear position
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required
- Not all OEM indicator lamp functions are replaced; unused indicators may be repurposed as needed
- HLC-55C clock is available separately as a complement to this HDX system
