GM Transmission Problems: Common Issues in Cars and HD Trucks

GM Transmission Problems Depend on Which GM Transmission You Have

You feel a slip on the 2-3 shift, a flare under load, or a shudder at highway speed, and you search "GM transmission problems." The first thing to know is that GM has built a long line of very different automatics. A 4L60E in a half-ton, a 4L80E in a three-quarter-ton that tows, and an eight-speed in a late-model truck fail in different ways, for different reasons.

So the fix starts with knowing which unit is in the vehicle. If you are not sure, our GM transmission identification guide walks through the pan, case and connector tells. Then use this guide to match the symptom to the likely cause, and to decide whether a repair is enough or the way you use the vehicle calls for a built transmission.

Which GM Automatic Is in Your Vehicle?

The rest of this guide focuses on the electronic units, because that is where most current GM transmission problems show up.

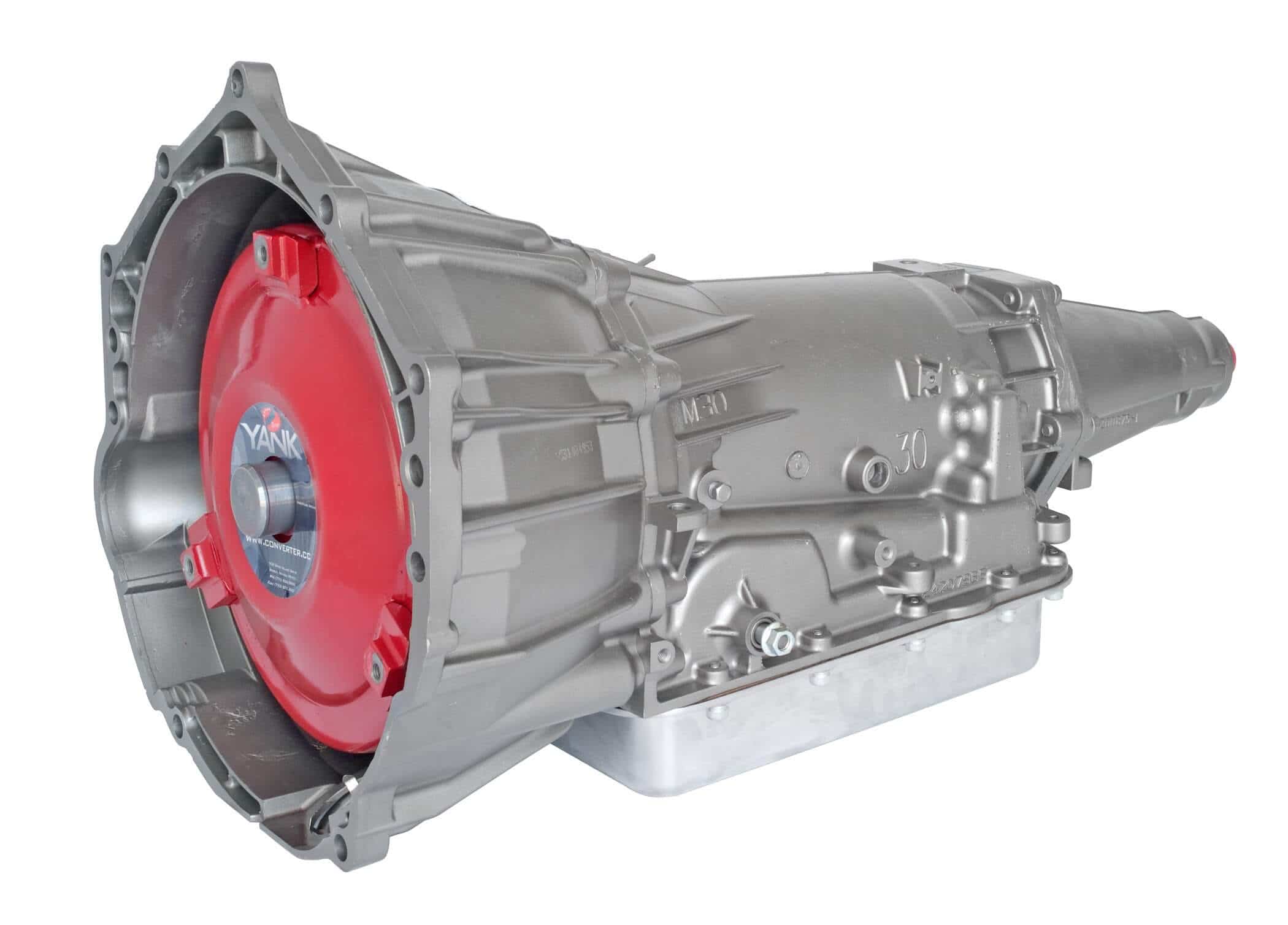

4L60E: The Problems That Come Up Most

The 4L60E family is the most common GM automatic on the road, and it is the one most often asked to carry more power than it was built for. Its usual problems:

• 3-4 clutch pack failure. The 3-4 pack is a common weak point under added power. Symptoms are a flare or slip on the 2-3 or 3-4 shift, or third and fourth gear going away entirely.
• Sun shell failure. The reaction sun shell can crack or strip under load. When it lets go, the transmission loses drive in some gears.
• 2-4 band wear. A worn band shows up as slipping in second and fourth.
• Torque converter clutch problems. Shudder at light throttle, lockup that will not apply, or a lockup code.
• Heat. Heat is behind most 4L60E failures. Towing, a loose converter, low fluid or an undersized cooler cook the fluid, and the clutches and seals follow.

A stock-spec rebuild replaces the worn parts with the same design that failed. That can be fine on a stock vehicle. On a vehicle with more power, more weight or more towing than stock, it puts the same weak points back in. Our post on symptoms of a failing 4L60E goes deeper on diagnosis.

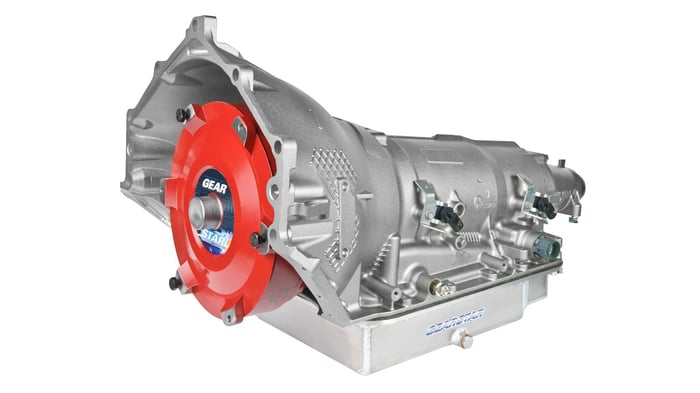

4L80E and HD Trucks: What Towing Does to Them

The 4L80E is GM's heavy-duty four-speed, descended from the TH400 and built for three-quarter and one-ton trucks and vans. It is a strong transmission, and when one fails, the cause is usually the work the truck is doing rather than a weak design.

• Heat under load. Towing heavy, long grades and stop-and-go hauling push fluid temperature up. Heat breaks down the fluid and then the frictions.
• Torque converter clutch wear. A converter clutch that slips under load adds heat and shows up as shudder or rising rpm at cruise while towing.
• Speed sensor and wiring faults. Electronic control means a bad sensor, connector or harness can cause harsh or erratic shifting with nothing wrong inside the case.
• Worn bushings and seals on high-mileage units. These lead to leaks, pressure loss and eventually slipping.

For HD trucks the lesson is that duty matters as much as horsepower. A truck that tows near its rating every weekend needs a transmission and converter built for that load and enough cooling to keep the fluid in range. It is one of the applications where we often steer customers toward a 4L80E even below the horsepower where we would otherwise start looking at one. Our 4L60E vs 4L80E guide covers where that line falls. Every Gearstar 4L80E build ships with a 32-spline output shaft and the reluctor on the output shaft, so both speed signals work.

6L80 and 6L90: Torque Converter Shudder and What Follows

The six-speeds brought more gears and tighter control, and their best-known problem starts in the converter. Torque converter clutch shudder is common, and it can do more damage than the vibration suggests. When the converter clutch material breaks down, debris circulates through the transmission and can contribute to valve body problems and overheating.

Shudder still needs diagnosis. Not every case has the same cause, and fluid condition, converter, valve body and calibration all need to be checked before parts get thrown at it.

Our six- and eight-speed transmissions include a custom billet Yank Performance converter. We bond the converter friction material in-house using a high-energy friction material. On the 6L80 and 6L90 we also change the converter clutch apply strategy from PWM to an on/off-style application to improve durability. More detail is in 6L80E and 6L90E problems and upgrades.

8L90: Shudder and Harsh Shifts

The two complaints that come up most on the 8L90 are shudder at light throttle, often at steady highway speeds, and harsh or clunky shifts, especially in the lower gears. GM addressed many shudder complaints with a fluid change to an updated transmission fluid, so the fluid's service history is the first thing to check.

The 8L90 does not handle converter clutch apply the same way the six-speeds do. On our 8L90 builds, the converter apply change is made in the tune file. If the customer runs HP Tuners, our tech staff walks them through the change, or the customer sends us a copy of the calibration file and we make it.

Problems That Are Not the Transmission

Before you pay for a transmission, rule out the things that act like transmission failure:

• Fluid level and condition. Low or burnt fluid causes slips, delays and shudder. Check it first. Our guide to low transmission fluid symptoms covers what to look for.
• Cooler and cooler lines. A restricted cooler or leaking line lets heat or fluid loss do the damage.
• Control module, sensors and wiring. A bad speed sensor, damaged connector or weak battery voltage can cause erratic shifts, limp mode or no lockup.
• Engine problems. A misfire or a vacuum leak can feel like a shudder or a shift problem.

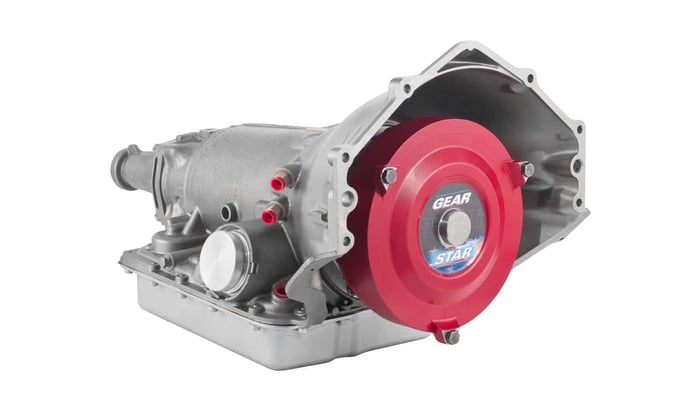

• TV cable adjustment on the 700R4 and 200-4R. On these non-electronic units an out-of-adjustment TV cable can leave the transmission without enough line pressure and burn it up. Follow the installation packet and call tech support rather than guessing.

Scan for codes, check fluid and cooling, and inspect the wiring before condemning the transmission.

Repair, Rebuild or Build?

Which way to go depends on what failed and how the vehicle is used.

• Repair makes sense when the problem is outside the case or limited to one part: a sensor, a solenoid, a leak, a cooler line.
• A rebuild can make sense on a stock vehicle used the way GM intended, where the transmission simply wore out.
• A built transmission is the real fix when the use has changed: added power, a heavier load, regular towing, or a second failure in the same place. Putting the same stock parts back in will not change the result.

For a deeper look at that decision, read rebuild vs replace.

Built for the Way You Use It

Most GM transmission problems trace back to a transmission working harder than it was built for, or to heat. A Gearstar transmission is assembled start to finish by one technician, matched to your engine, gearing and how you use the vehicle, and dyno tested before it ships. Browse our GM performance transmissions or tell us about your truck or car and we'll spec the right one.

FAQs

What is the most common GM transmission problem?
It depends on the unit. On the 4L60E family, 3-4 clutch pack failure and heat damage are the most common. On the 6L80 and 6L90, torque converter clutch shudder is the best-known issue. On the 8L90, shudder and harsh shifts come up most.

Can you tow with a slipping 4L80E?
You shouldn't. Slipping generates heat, and towing adds more. A slipping transmission under a trailer can go from a repairable problem to a failed unit quickly. Check the fluid and get it diagnosed before you tow again.

Why do GM trucks have transmission problems when towing?
Towing raises fluid temperature and puts more load on the clutches and the converter clutch. Heat breaks down the fluid and then the frictions. A transmission and converter built for the load, plus enough cooling, are the fix.

Is 6L80 torque converter shudder serious?
It can be. When converter clutch material breaks down, debris circulates through the transmission and can contribute to valve body problems and overheating. Have it diagnosed rather than ignoring it.

What should I check before replacing a GM transmission?
Fluid level and condition, the cooler and cooler lines, codes, sensors and wiring, and engine faults like misfires. On a 700R4 or 200-4R, check the TV cable adjustment.

How do I know which GM transmission I have?
Start with the pan shape and bolt count, then look at the case, bellhousing and electrical connector. Our GM transmission identification guide walks through each unit.
