How to Identify a GM Automatic Transmission Without Pulling It

A swap meet core with no tag. A project car with a transmission nobody can vouch for. A truck that has had two owners and at least one rebuild. Before you order parts, a converter or a replacement, you need to know exactly what is in there, and the model name somebody wrote on the listing is not enough.

Here is the order we work in at the shop: pan first, then the case, the bellhousing, the electrical connector and the specific configuration. The pan narrows it down fast. The rest confirms it.

Start With the Pan

Pan shape, pan-bolt count and a matching pan-gasket illustration are useful starting points. GM's automatics have distinct pan outlines, and laying the gasket shape next to the pan on the car rules most of them out in seconds.

The pan gets you to a family. It does not finish the job. The 700R4 and the 4L60E share a pan, and so do the 4L80E and 4L85E. That is where the case and connector come in.

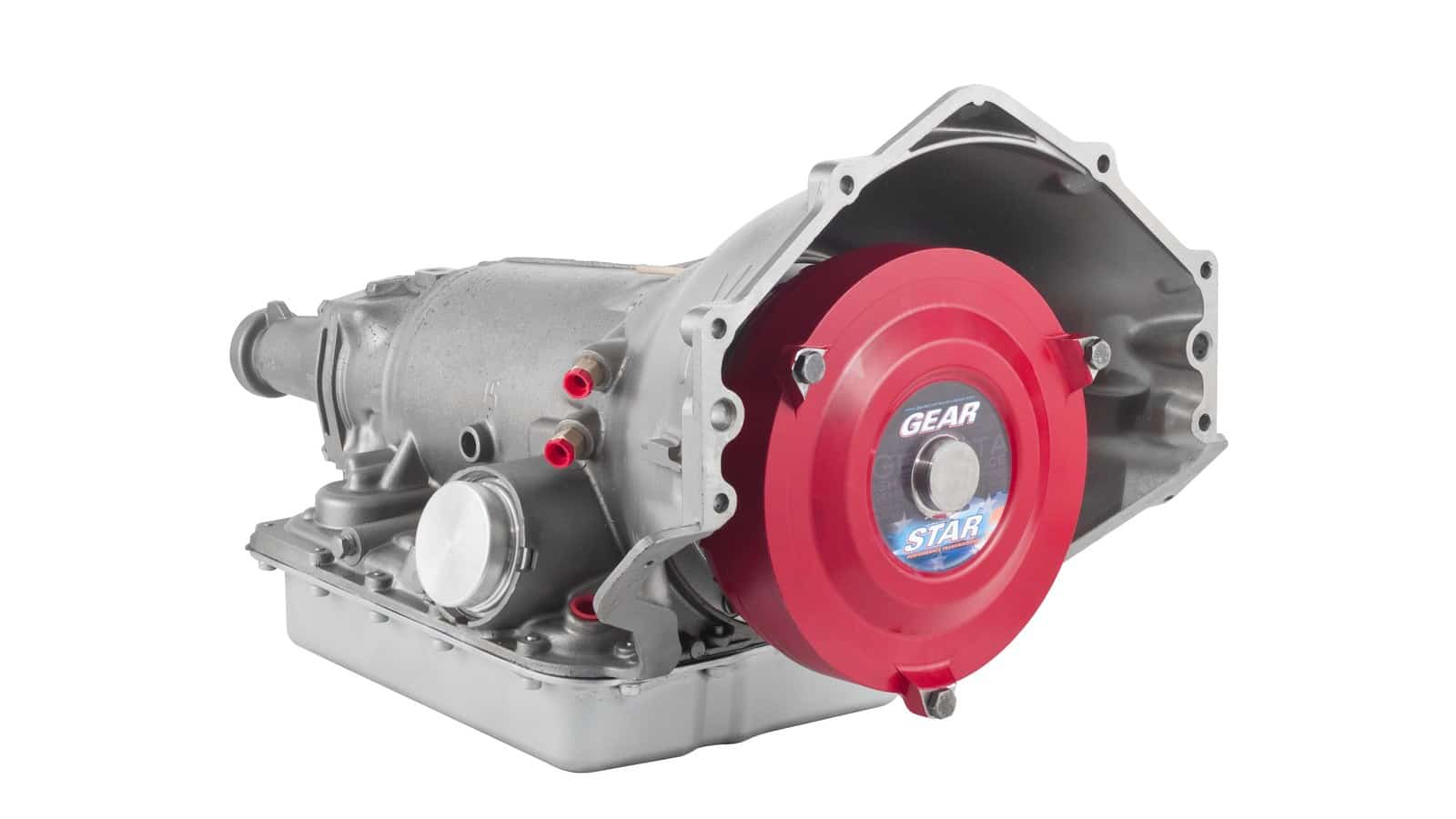

700R4 and 4L60: The Non-Electronic Overdrive

The non-electronic 700R4/4L60 has a one-piece case with six engine-side bellhousing bolts, and it uses a TV cable arrangement to set line pressure. If you see a cable running from the throttle linkage to the transmission and no electrical connector on the case, you are looking at the non-electronic version.

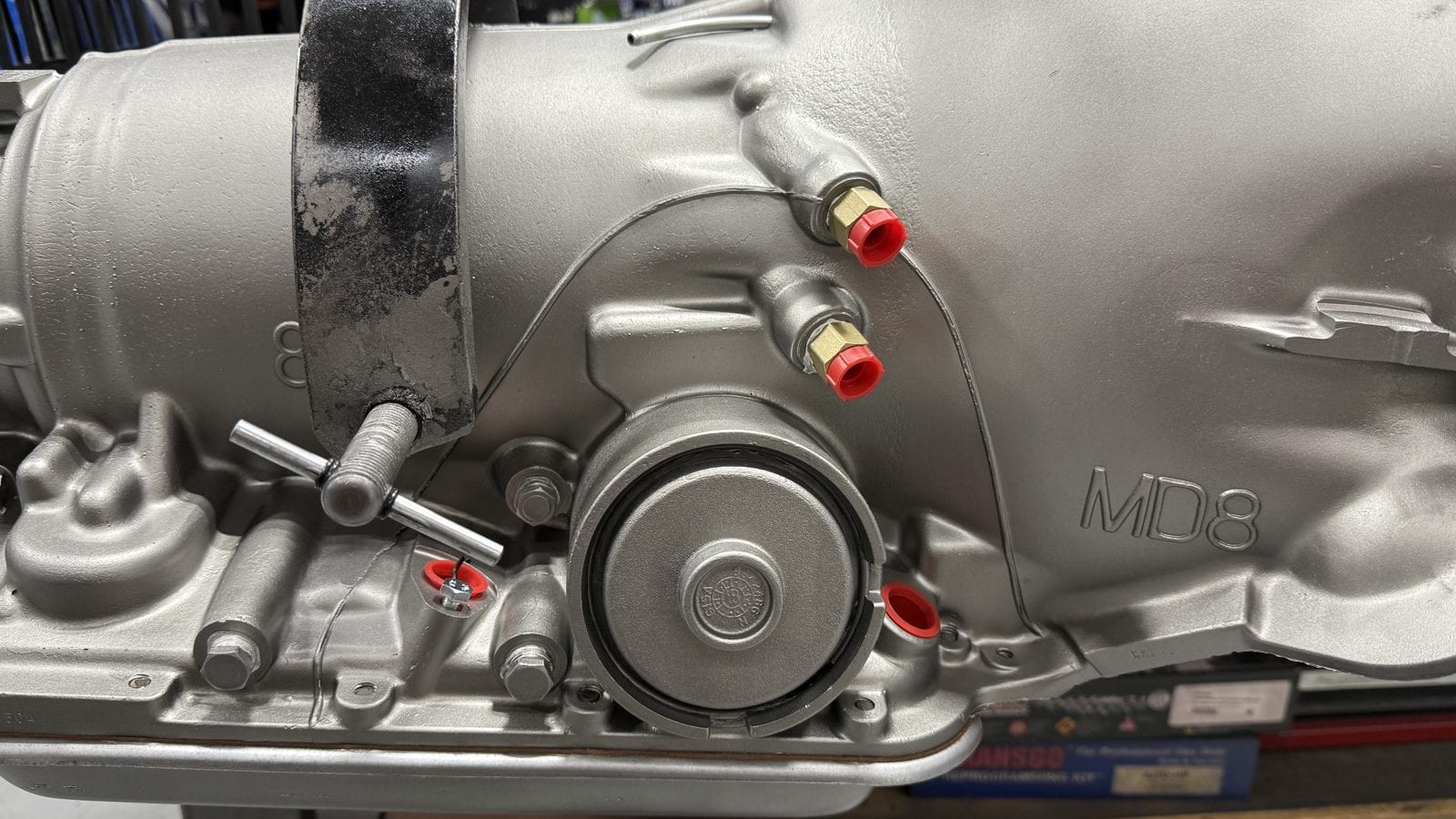

One shop identification clue for the later case is a cast arch on the passenger side. GM added it in 1987. It starts near the bellhousing, passes over the servo and through the cooler-fitting area, then returns toward the pan rail. The 1987 and later 700R4 also has the auxiliary-style valve body and a larger input shaft, so the arch tells you more than the year. It is one of the quicker visual tells we use when two 700R4 cases sit side by side.

If you are setting one of these up, the TV cable adjustment matters more than almost anything else. See TV cable adjustment and what happens when a 700R4 TV cable is out of adjustment.

4L60E: Early One-Piece and Later Two-Piece Cases

Early 4L60E configurations can look a lot like a 700R4, but they are electronically controlled. The electrical case connector is the important distinction. Where the 700R4 has a TV cable, the 4L60E has a connector and no cable.

Later two-piece cases complicate identification. A removable bellhousing on its own does not establish the exact model or what converter the transmission needs.

4L65 and the LS-Style Configuration

In our shop terminology, the LS-style configuration we call a 4L65 has a two-piece case, an additional twelve o'clock engine-side bellhousing bolt, and a different input and converter arrangement.

Here is the catch: GM also used the 4L60E designation across different configurations. So the name alone will not tell you which converter fits. The 298 mm and 300 mm references, converter height, pilot and bellhousing combination all need to be matched correctly. Converters should not be treated as universally interchangeable across these transmissions. We go deeper in will a 4L60E torque converter fit a 4L65E or a 4L80E.

4L70E

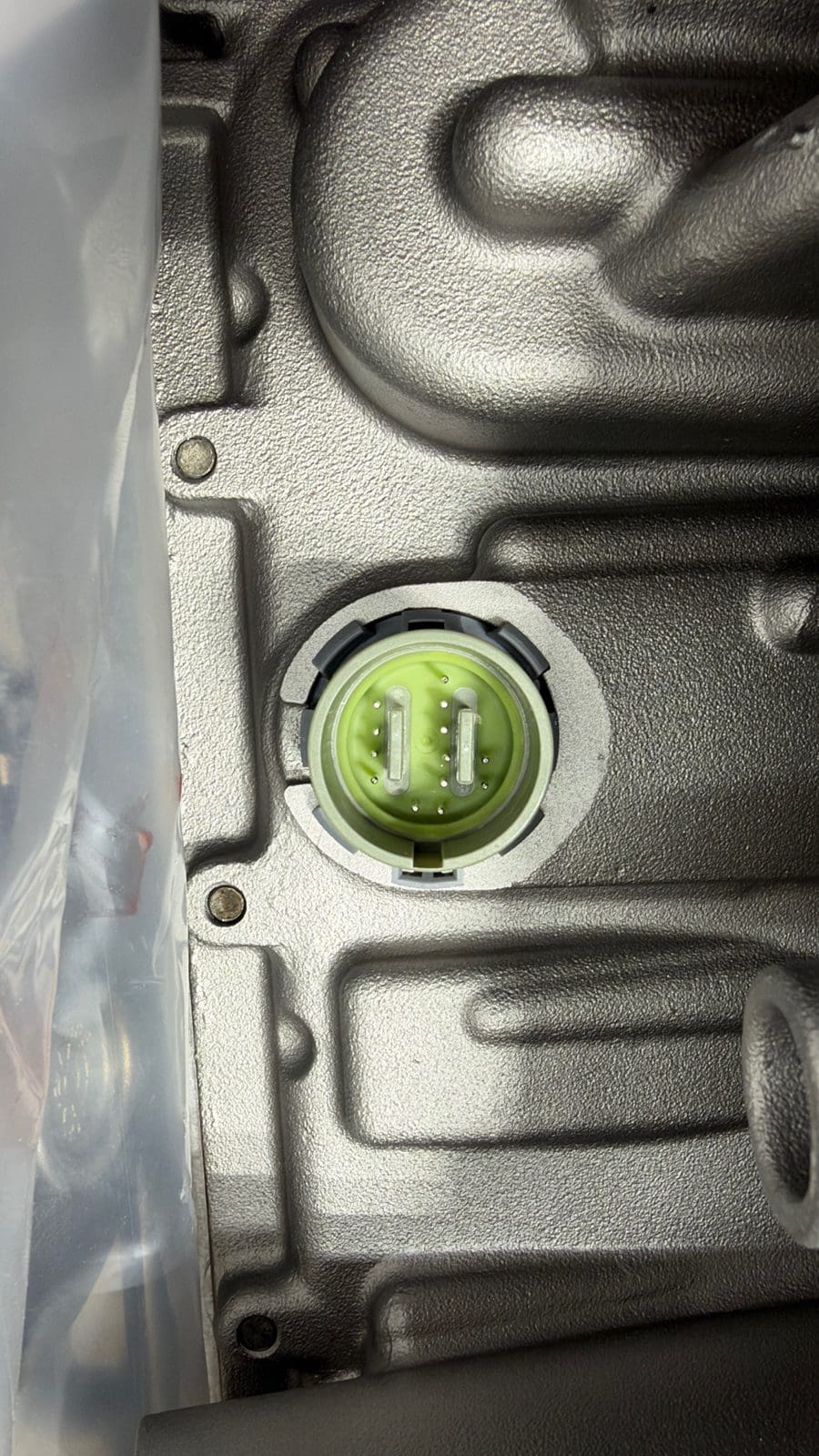

The 4L70E can share similar case characteristics with the later 4L60E family, so the outside of the case is not enough. The case connector on the transmission is the place to look. Across the 4L60E family, including the 4L70E, GM used three connector configurations. Count the pins:

The controller and harness have to match what your case came with, so confirm the pin count before you order either one.

One more point that matters if you are shopping: neither the outside appearance nor the model name establishes how much power a Gearstar build can handle. We offer different build levels for different applications, and the build level is what sets the capacity. For how the two compare inside, see 4L70E vs 4L60E.

4L80E vs 4L85E

From the outside, a 4L80E and a 4L85E can look the same. The key distinction is inside: the 4L85E uses five-pinion planetary sets.

Do not rely solely on the outside case or the donor vehicle to establish what is inside. Transmissions get rebuilt and components get swapped, so a case that left the factory as a 4L80E may not be one now, and the other way around. If it matters for your build, the planetary sets need to be checked.

Our 4L85E Level 5 Pro Series is rated up to 2,000 horsepower at the crankshaft. That rating belongs to the fully built Gearstar transmission. It is not a rating for a stock 4L85E, or for a five-pinion planetary set by itself.

Classic and Late-Model Units

TH350 and TH400. Both three-speeds, no overdrive and no electronics, and both use a 13-bolt pan with different outlines. Our TH350 identification guide covers decoding in detail.

6L80E and 6L90E. GM's six-speed electronic automatics. See 6L80E and 6L90E specs and identification.

Why the ID Matters Before You Buy Anything

Every downstream decision depends on knowing the exact transmission: the converter, the controller and harness, the crossmember position and the driveshaft length. Get the ID wrong and the parts arrive and do not fit. If you are planning a swap rather than a replacement, read 4L60E vs 4L80E next.

Not sure what you have? Send us photos of the pan, the passenger and driver sides of the case, the bellhousing and the case connector, along with the vehicle's year, make, model and engine. Contact Gearstar and we will help you confirm it before you order. Browse GM performance transmissions.

FAQs

How do I identify my GM transmission? Start with the pan shape and pan-bolt count, then check the case, the bellhousing, the electrical connector and the specific configuration. The pan narrows it to a family. The connector, case details and bellhousing bolt pattern confirm the exact transmission.

How can I tell a 700R4 from a 4L60E? They share a pan, so look for the controls. The 700R4 uses a TV cable and has no electrical case connector. The 4L60E is electronically controlled and has a case connector instead of a TV cable.

How do I tell a 4L60E from a 4L65E? The LS-style configuration has a two-piece case, an additional twelve o'clock engine-side bellhousing bolt and a different input and converter arrangement. GM used the 4L60E name across different configurations, so match the converter size, height, pilot and bellhousing rather than relying on the name.

How many pins does a 4L70E case connector have? It depends on the year. 4L60E-family transmissions, including the 4L70E, used a 13-pin connector from 1996 to 2008, a 15-pin connector from 2005 to 2008 on applications with an input shaft speed sensor, and a 17-pin connector from 2009 to 2013, which adds an internal PRNDL switch. Count the pins on the case connector before ordering a controller or harness.

What year did the 700R4 get the cast arch? 1987. The 1987 and later 700R4 has a cast arch on the passenger side of the case, along with the auxiliary-style valve body and a larger input shaft.

What is the difference between a 4L80E and a 4L85E? The 4L85E uses five-pinion planetary sets. The cases can look the same from the outside, and rebuilds or part swaps can change what is inside, so do not rely on the case or the donor vehicle alone.

Are GM torque converters interchangeable? No. Converter size, height, pilot and bellhousing combination need to match the specific transmission configuration. Converters should not be described as universally interchangeable, even within the 4L60E family.
