The Dakota Digital HDX-47C-PU-K is a direct-fit HDX Series instrument system engineered specifically for 1947-53 Chevy and GMC pickups, featuring black alloy gauge-face styling. Rather than relying on adapter rings and undersized round gauges, this system uses a chrome-plated, machined aluminum instrument housing that replaces the stock bezel for an exact fit into the factory dash opening.
Each gauge combines traditional analog movements with a full-color TFT display and a pair of capacitive-touch buttons, allowing extensive personalization of needle colors, sweep colors, and digital display colors. Calibration and personal settings can be adjusted directly through the onboard touch buttons or through the available Bluetooth app for Apple and Android devices. A central control box simplifies installation by sourcing signals from the vehicle harness and connecting supplied, solid-state sending units cleanly to their respective terminals.
Each needle hub is black nickel plated spun-aluminum to match the control buttons, and every HDX system includes dead-faced indicators along with a red, settable warning light built into each gauge for quick notice of a warning condition.
Key Features
- Chrome-plated, machined aluminum bezel for an exact factory-opening fit

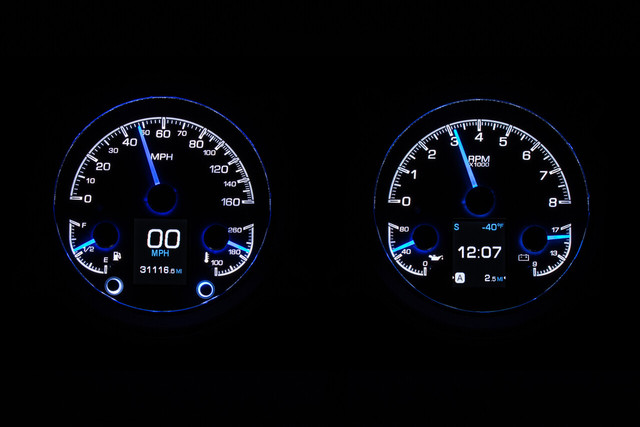

- Black alloy gauge-face styling with full-color TFT display in each gauge
- Capacitive-touch pushbuttons integrated into the gauge face for setup and calibration

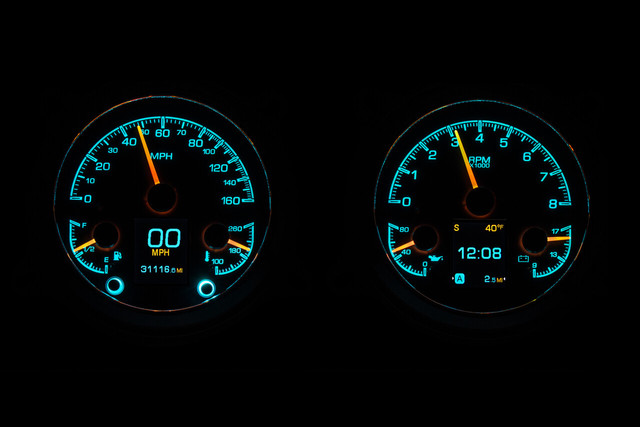

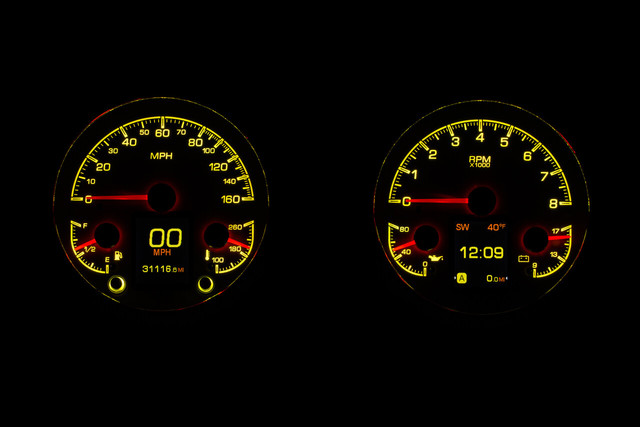

- Over 30 user-selectable color options for needle, sweep, and digital display colors

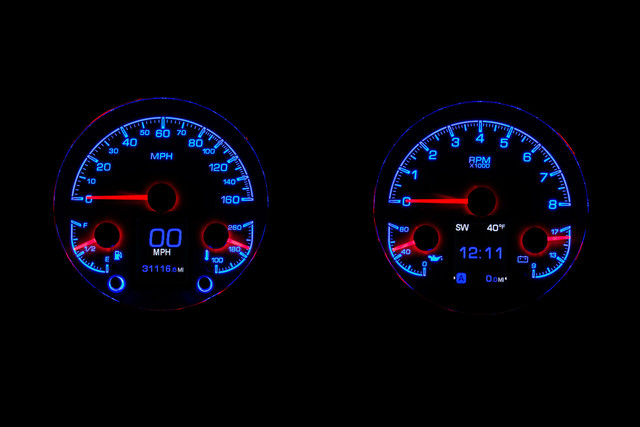

- 12 factory preset color themes, or fully custom color zone selection
- Independent daytime and nighttime brightness control, toggled by the headlight switch
- Bluetooth app compatibility for Apple and Android devices for setup and real-time gauge readouts
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, and parking brake, plus two user-definable auxiliary indicators
- Red, settable warning LED built into each analog gauge sweep (except speedometer)
- Black nickel plated spun-aluminum needle hubs matching the control buttons
- Central control box for simplified, vehicle-harness sourced wiring
Specifications
- Part Number: HDX-47C-PU-K
- Required Dash Opening: 5.2"
- Overall Dimensions: 5.95"
- Depth: Generally mimics stock gauge cluster, typically 1.5"-2.5"
- Speedometer: 0-160 MPH, split scale resolution of a 120 MPH speedometer
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC

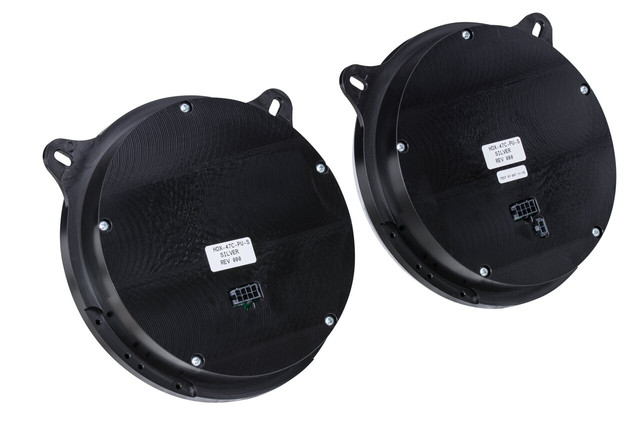

- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: Replaces GM style speedometer cables, 10 ft harness, requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Digital Message Center Functions
- Odometer (one-time user settable, million mile)
- Dual (A/B) trip meter (0-9,999.9)
- 12-hour clock
- Estimated range/miles to empty
- 0-60 MPH timer
- 1/4 and 1/8 mile time and trap speed
- High speed recall and high RPM recall
Notes
- Machined aluminum and chrome bezel included
- Designed as a direct-fit system for the stock dash opening of 1947-53 Chevy/GMC pickups; use in other vehicles may present mounting and viewing angle challenges
- Any fitment modifications should be made to the vehicle's dash or surrounding housings rather than the HDX System, to preserve warranty coverage
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required
- DIM-1 is a common accessory for on-the-fly rotary brightness control (sold separately)
