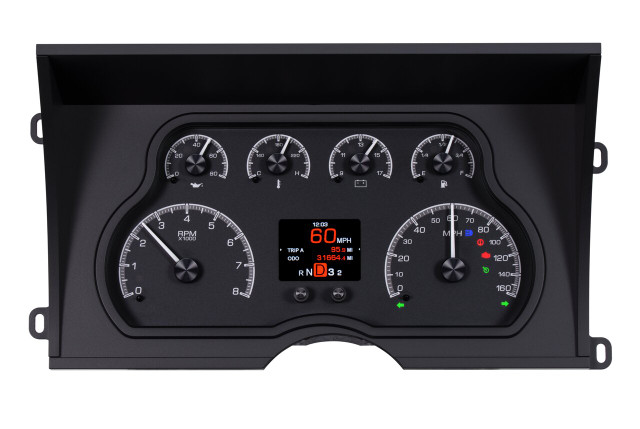

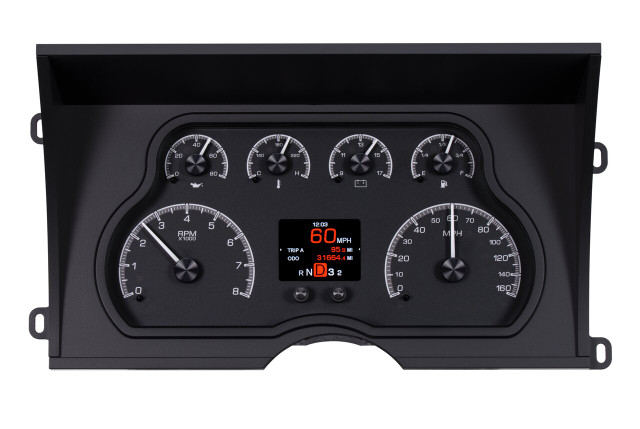

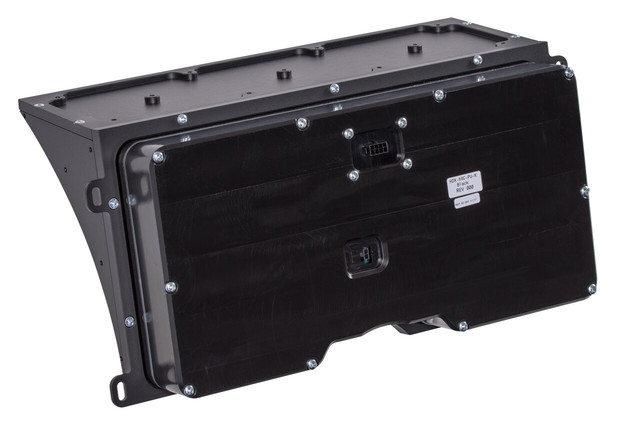

The Dakota Digital HDX-88C-PU-K is a complete HDX instrument system upgrade for 1988-94 Chevy and GMC pickups (and 1992-94 SUVs), featuring a black alloy gauge-face styling. This system replaces the original cluster with a full tachometer, precise analog gauges, and a large, full-color TFT message center capable of displaying auxiliary readings. The HDX system is designed to interface with virtually any drivetrain combination.
Each HDX system allows independent illumination color selection for gauge readings, needles, and message centers. Calibration and personal settings are controlled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Needle hubs are black nickel plated spun-aluminum to match the control buttons.
With the included central control box, installation is simplified using vehicle-harness sourced signals and supplied solid-state sending units that connect cleanly to their respective terminals.
Key Features
- Black alloy gauge-face styling
- Large, full-color TFT message center for auxiliary readings
- Over 30 user-selectable color options for needle, sweep, and digital TFT display colors
- 12 factory preset color themes or fully customizable color zones
- Full LED/RGB backlighting with independent daytime and nighttime themes
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable indicators
- Red, settable warning light for each gauge
- Onboard capacitive-touch pushbuttons with Bluetooth app control for Apple and Android devices
- Central control box simplifies installation using vehicle-harness sourced signals
Specifications
- Part Number: HDX-88C-PU-K
- Speedometer: 0-160 MPH (split scale provides resolution of a 120 MPH speedometer, with a top end range of 160 MPH)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, Million Mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty
- Performance meters: 0-60 MPH timer, 1/4 and 1/8 mile time, 1/4 and 1/8 mile trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes
- This system eliminates the gear indicator found in the OEM instrument cluster on models equipped with an automatic transmission; add the GSS-3000 Gear Shift Sensor to restore a shifter detent readout within the HDX display
- Not all OEM indicator lamp functions will be replaced; unused indicators can be repurposed to suit the application
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- The DIM-1 is a common accessory for on-the-fly rotary dimmer control, sold separately
- GPS-50-2 may be used to negate the need to calibrate the speedometer, sold separately
