Description
Description

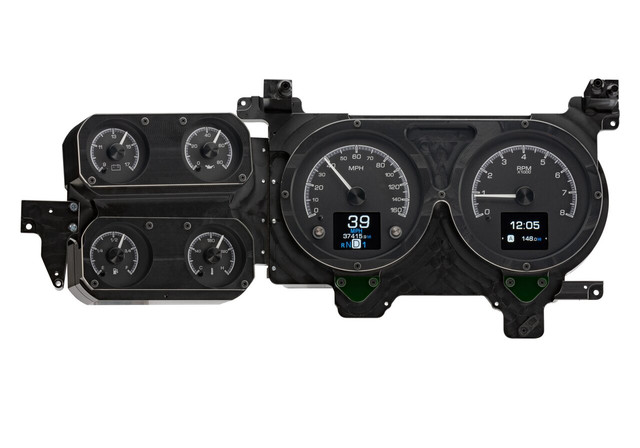

The Dakota Digital HDX-73C-PU-K is a complete HDX instrument system engineered specifically for 1973-87 Chevy and GMC pickups, as well as 1973-91 Blazer, Suburban and heavy-duty pickup applications. This black face system retains the stock cluster arrangement, with a large speedometer and tachometer front and center and satellite gauges to the side, while adding a TFT display in each large gauge opening for a high level of customization and real-time parameter viewing.
Calibration and personalization are handled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun aluminum to match the button finish, and the system allows independent selection of illumination colors for gauge readings, needles, and message centers.
Installation is simplified through a central control box that sources signals from the vehicle harness, along with included solid state sending units that connect cleanly to their respective terminals. The system uses an OEM or reproduction style bezel, which is not included.
Key Features
- Black alloy gauge-face styling
- TFT display in each large gauge opening for customizable parameter viewing
- Independent illumination color selection for needles, gauge sweeps, and digital message centers, with over 30 user-selectable color options
- 12 factory preset color themes plus full custom color zone selection
- Full LED/RGB backlighting with separate daytime and nighttime brightness control, toggled by the headlight switch
- Built-in capacitive-touch pushbutton controls with LED-lit buttons through the gauge face
- Bluetooth app support for Apple and Android devices for setup and real-time gauge readouts
- Black nickel plated spun-aluminum needle hubs
- Dead-faced indicators for turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable indicators
- Red, settable warning light integrated into each analog gauge sweep
Specifications
- Part Number: HDX-73C-PU-K
- Speedometer: 0-160 MPH, split scale provides resolution of a 120 MPH speedometer with a top end range of 160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: one-time user settable, million mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH timer, 1/4 and 1/8 mile time, 1/4 and 1/8 mile trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system uses an OEM or reproduction style bezel
- Gear Position indicator requires the optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- The DIM-1 is a common accessory for on-the-fly rotary brightness control
