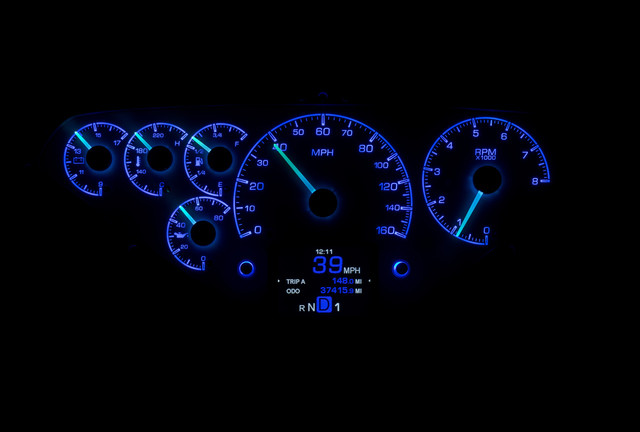

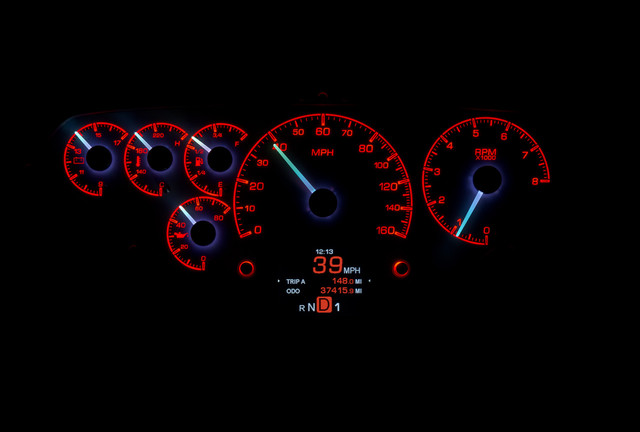

The Dakota Digital HDX-55C-PU-S is a complete instrument system designed specifically for 1955-59 Chevy pickup trucks (does not fit GMC). This V-shaped cluster retains the iconic factory profile while delivering modern HDX electronics, finished with a silver alloy gauge face. A stock or reproduction bezel, available separately, is used to mount this all-inclusive package.
A single TFT display in the center of the cluster allows the user to view exactly the information they desire. Independent illumination colors can be selected for the gauge readings, needles, and message centers, with calibration and settings controlled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons.
Installation is simplified through a central control box that uses vehicle-harness sourced signals along with supplied, solid-state sending units that connect cleanly to their respective terminals.
Key Features
- Silver alloy gauge-face styling
- Single center-mounted TFT digital message center display
- Over 30 user-selectable color options for needles, sweep, and digital display
- 12 factory preset color themes, plus fully customizable color zones
- Full LED/RGB backlighting with independently adjustable day and night brightness
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red, settable warning light built into each analog gauge sweep
- Onboard capacitive-touch pushbutton controls plus Bluetooth app configuration for Apple and Android devices
- Black nickel plated spun-aluminum needle hubs matching the control buttons
- Uses OEM or reproduction style bezel (not included)
Specifications
- Part Number: HDX-55C-PU-S
- Speedometer: 0-160 MPH (split scale resolution of a 120 MPH speedometer)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, million mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty display
- Performance Meters: 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables, includes 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction (Part # 130011, sold separately, allows relocation of the pulse generator when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system is designed to use an OEM or reproduction style bezel
- Does not fit GMC pickups
- Gear Position indicator requires optional GSS-3000 sensor
- Not all OEM indicator lamp functions are replaced; unused indicators may be repurposed as needed
- DIM-1 accessory available for on-the-fly rotary brightness control
- GPS-50-2 accessory, if used, eliminates the need to calibrate the speedometer
