Description

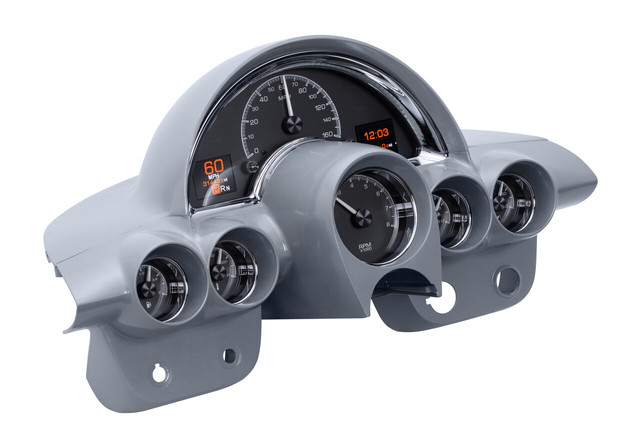

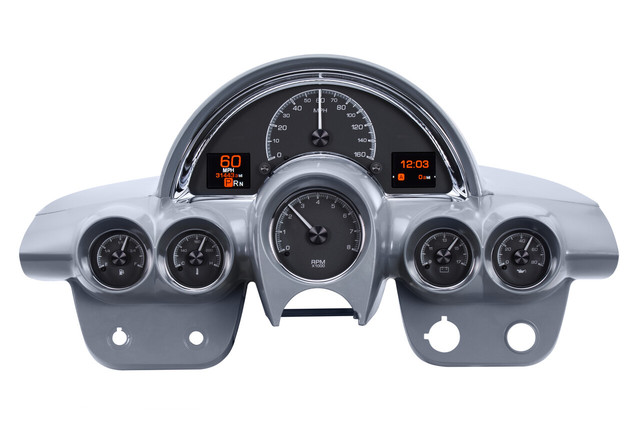

The Dakota Digital HDX-58C-VET-K is a direct-fit HDX instrument system engineered specifically for the unique dash of the 1958-62 Chevy Corvette, featuring black alloy gauge-face styling and chrome bezels. This high-tech system reuses your existing painted, cast dash housing, allowing for a clean factory-style installation while delivering modern digital capability and the ability to connect to nearly any engine/transmission combination.
Each HDX system includes twin TFT message centers and allows the user to independently select illumination colors for the gauge readings, needles, and message center displays. Calibration and personal settings are manipulated through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Needle hubs are black nickel plated spun-aluminum to match the buttons, creating a cohesive, upscale appearance.
With the central control box, installation is simplified through vehicle-harness sourced signals and supplied solid-state sending units that connect cleanly to their respective terminals. Dead-faced indicators and a red, settable warning light for each gauge add both functionality and style to this instrument system.
Key Features
- Direct-fit replacement for the factory 1958-62 Corvette dash, reusing the existing painted, cast dash housing
- Chrome bezels included
- Black alloy gauge-face styling
- Twin TFT digital message centers
- Over 30 user-selectable color options for independently adjusting needle, sweep, and digital display colors
- 12 factory preset color themes or fully custom color zone selection
- Full LED/RGB backlighting with adjustable daytime and nighttime brightness
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red, settable warning LED built into each analog gauge sweep
- Onboard capacitive-touch pushbuttons with button-press feedback via message center or included buzzer
- Bluetooth app control and real-time gauge readouts for Apple and Android devices
- Black nickel plated spun-aluminum needle hubs matching the control buttons
Specifications
- Part Number: HDX-58C-VET-K
- Speedometer: 0-160 MPH (split scale resolution of a 120 MPH speedometer)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Standard Displays: Odometer, Dual (A/B) Trip Meter, 12-hour Clock, Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH Timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: Replaces GM style speedometer cables, includes 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction. Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 thread bushings
Notes

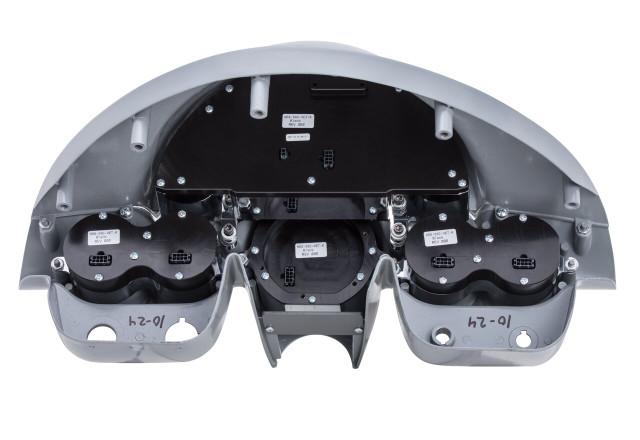

- Dash housing is not included; system is designed to work with the OEM or reproduction style instrument housing
- Gear position indicator requires optional GSS-3000 sensor
- Not all OEM indicator lamp functions will be replaced; unused indicators can be repurposed as needed
- DIM-1 accessory available for on-the-fly rotary brightness control
- GPS-50-2 accessory can negate the need for speedometer calibration
- HLC-58C-VET clock unit (sold separately) is designed to complement this system, fitting the factory clock housing and connecting to the main HDX control box; cannot be used alone
