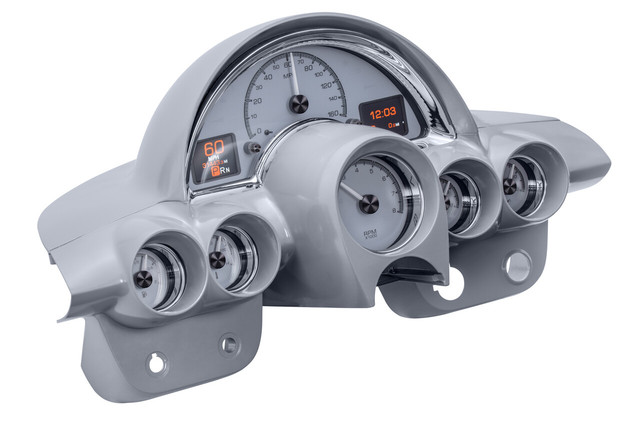

The Dakota Digital HDX-58C-VET-S is a direct-fit HDX instrument system engineered for the unique dash of the 1958-62 Chevy Corvette. This high-tech gauge package reuses your painted, cast dash housing and includes chrome bezels, bringing twin TFT message centers and modern electronics to this classic dash while retaining an authentic appearance.

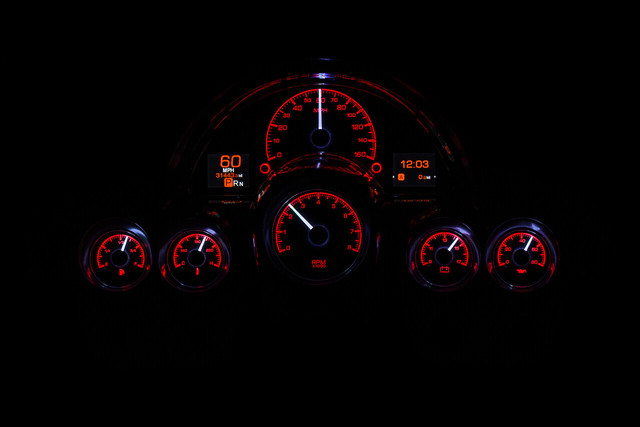

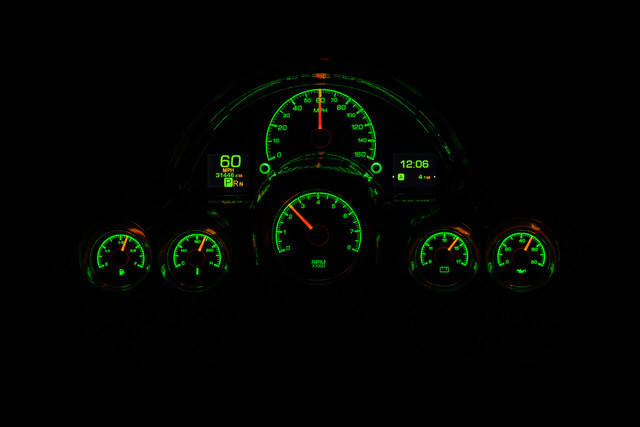

Featuring a silver alloy gauge-face finish, the HDX system allows independent control of illumination colors for gauge readings, needles, and message centers. The system connects to nearly any engine and transmission combination, with calibration and personalization handled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the control buttons.
All HDX instrument systems include dead-faced indicators for turn signals, high beam, check engine, cruise control, and parking brake, plus two user-definable indicators, along with a red, settable warning light for each gauge. The central control box simplifies installation by sourcing signals from the vehicle harness and pairing with supplied, solid-state sending units for clean terminal connections.
Key Features
- Direct fit for 1958-62 Chevy Corvette dash, reusing the factory painted/cast dash housing
- Chrome bezels included
- Silver alloy gauge-face styling
- Twin TFT digital message centers
- Over 30 user-selectable color options for needle, sweep, and digital display colors
- 12 factory preset color themes, or fully customizable color zones
- Full LED/RGB backlighting for sharp day and night visibility
- Independently adjustable daytime and nighttime brightness, toggled by the headlight switch
- Onboard capacitive-touch pushbuttons with LED lighting, plus Bluetooth app control for Android and Apple devices
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two auxiliary user-programmable indicators
- Each analog gauge sweep includes a red LED warning indicator (except speedometer)
- Compatible with nearly any engine/transmission combination
Specifications
- Part Number: HDX-58C-VET-S
- Speedometer: 0-160 MPH (split scale provides resolution of a 120 MPH speedometer with a 160 MPH top end range)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, Million Mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty display
- Performance meters: 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables, includes a 10 ft harness (requires approximately 5" clearance between the cable drive output and any obstruction)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Dash housing is not included; system uses the OEM or reproduction style instrument housing
- Gear Position indicator requires the optional GSS-3000 sensor
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required
- The HLC-58C-VET clock unit is available as a complementary accessory that fits the factory clock housing and connects to the main HDX control box; it cannot be used alone
- DIM-1 is a common accessory for adding on-the-fly rotary brightness control
