Description

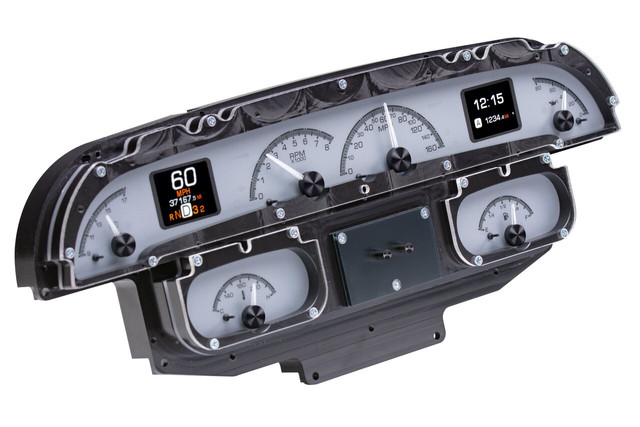

The Dakota Digital HDX-58C-IMP-S is a complete HDX instrument system engineered specifically for the 1958 Chevy Impala, featuring a silver alloy gauge-face styling. As the grown-up brother to the tri-fives, the 1958 Impala introduced GM's new X-frame design along with an updated dashboard, and this HDX system brings that dash up to current standards while retaining a classic appearance. Twin TFT message centers provide full-color, real-time status updates on the drivetrain, accommodating anything from a 283 to an LSA and everything in between.
Calibration and personal settings are manipulated through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. With the included central control box, installation is simplified through vehicle-harness sourced signals and supplied solid-state sending units that connect cleanly to their respective terminals.
This system requires the vehicle's stock instrument housing and front bezel trim; the bezel is not included and is shown for visual/presentation purposes only. The system uses an OEM or reproduction style bezel.
Key Features
- Silver alloy gauge-face styling
- Independently selectable illumination colors for gauge readings, needles, and message centers, with over 30 user-selectable color options
- 12 factory preset color themes, or fully custom color zone selection

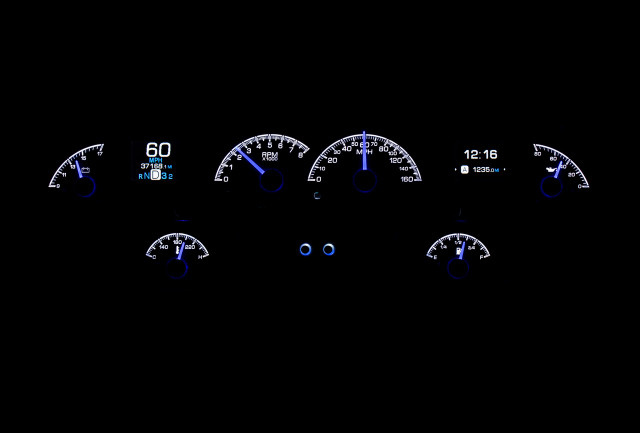

- Full LED/RGB backlighting for sharp daytime and nighttime visibility
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable indicators
- Red, settable warning light for each gauge
- Onboard capacitive-touch pushbutton controls with LED-lit feedback and buzzer, plus Bluetooth app compatibility for Android and Apple devices
- Twin TFT message centers with real-time drivetrain status updates
- Dual brightness control for day and night, toggled by the headlight switch
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
Specifications
- Part Number: HDX-58C-IMP-S
- Speedometer: 0-160 MPH, split scale resolution of a 120 MPH speedometer with a 160 MPH top end range
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, million mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12-hour
- Estimated Range/Miles to Empty
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables, 10 ft harness; requires approximately 5" of clearance between the cable drive output and any obstruction (Part # 130011 available separately for relocation of the pulse generator when additional clearance is required)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes
- Requires the vehicle's stock instrument housing and front bezel trim; bezel is not included
- System uses an OEM or reproduction style bezel
- Gear Position indicator requires optional GSS-3000 sensor
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- DIM-1 accessory available for on-the-fly rotary brightness control
