Description

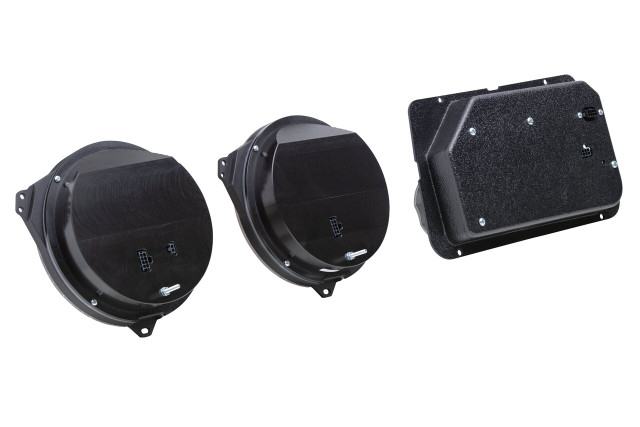

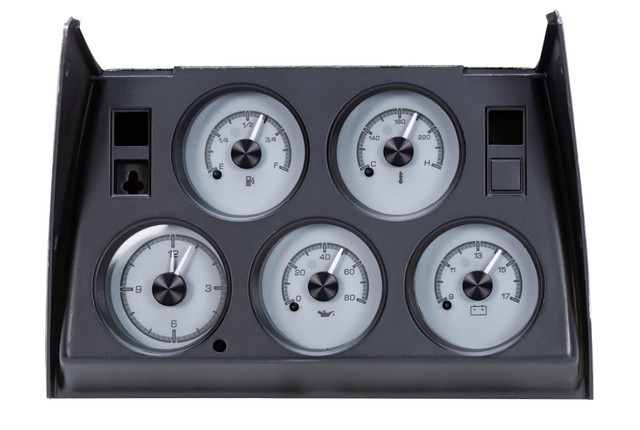

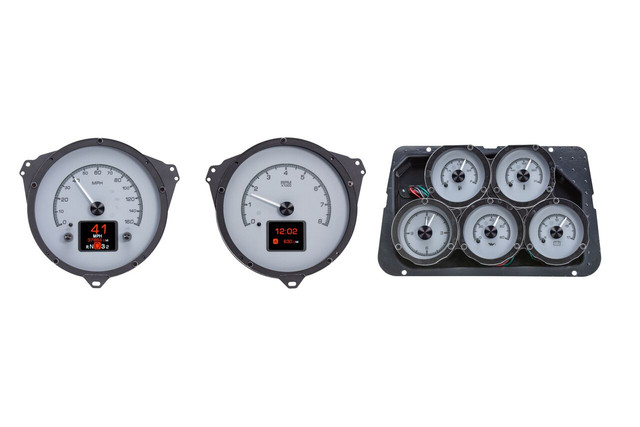

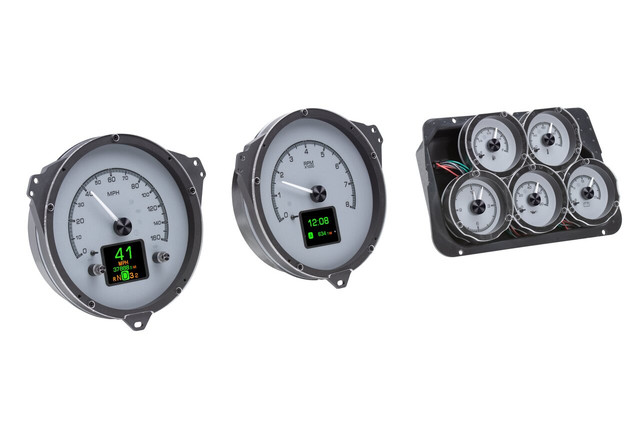

The Dakota Digital HDX-68C-VET-S HDX System brings a fully digital instrument upgrade to the 1968-77 Chevy Corvette "Mako Shark" with a direct-fit design, eliminating the need to cut up hard-to-find dash parts to accommodate universal gauges. The speedometer and tachometer, each featuring full-color TFT message displays, are positioned front and center, while essential satellite gauges and an analog clock reside in the center console panel. This version features silver alloy gauge-face styling to complement the Corvette's interior.
Supplied sensors allow seamless integration with nearly any engine combination, whether stock, modified, or a late-model swap. Users can independently select illumination colors for gauge readings, needles, and message centers, with calibration and personal settings managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the control buttons.
All HDX instrument systems feature dead-faced indicators for turn signals, high beam, check engine, cruise control, and parking brake, plus two user-definable indicators, along with a red, settable warning light built into each gauge sweep. The central control box simplifies installation by sourcing signals from the vehicle harness and connecting supplied, solid-state sending units cleanly to their respective terminals.
Key Features
- Direct-fit design for the 1968-77 Chevy Corvette, no dash cutting required
- Silver alloy gauge-face styling
- Full-color TFT message center displays integrated into speedometer and tachometer
- Over 30 user-selectable color options for needles, sweep, and digital displays
- 12 factory preset color themes plus fully custom color zone selection

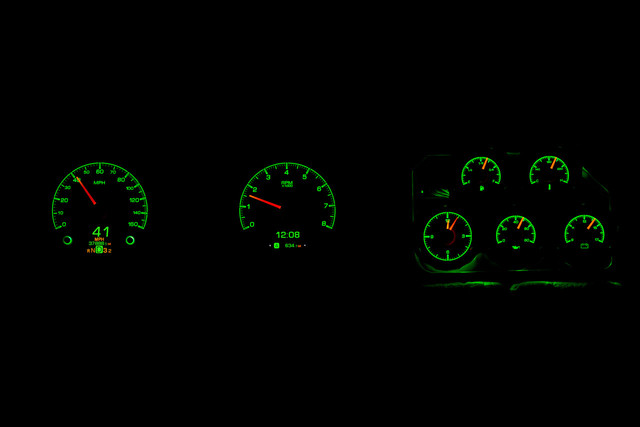

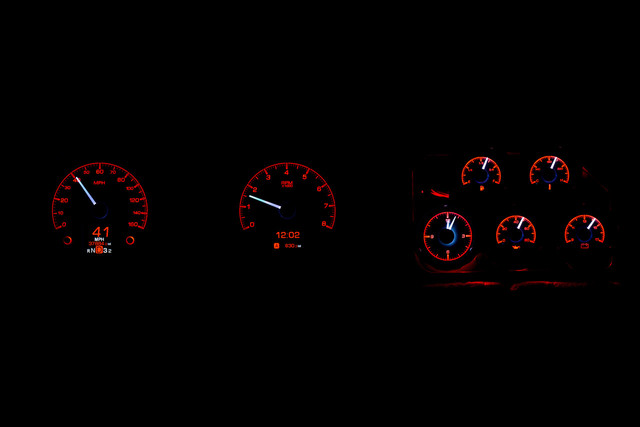

- Full LED/RGB backlighting with independent day and night themes
- Capacitive-touch pushbutton controls with Bluetooth app support for Apple and Android devices
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, and parking brake, plus two user-definable auxiliary indicators
- Red LED warning indicator built into each analog gauge sweep
- Central control box simplifies installation using vehicle-harness sourced signals
- System uses OEM or reproduction style bezel (bezel not included)
Specifications
- Part Number: HDX-68C-VET-S
- Speedometer: 0-160 MPH, split scale resolution of a 120 MPH speedometer with a 160 MPH top end range
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Clock: 12-hour analog clock movement
- Standard Digital Displays: Odometer (one-time user settable, million mile), dual (A/B) trip meter, 12-hour clock, estimated range/miles to empty
- Performance Meters: 0-60 MPH timer, 1/4 and 1/8 mile time, 1/4 and 1/8 mile trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: Replaces GM style speedometer cables with a 10 ft harness; sensor requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system uses an OEM or reproduction style bezel
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- DIM-1 is a common accessory for adding on-the-fly rotary brightness control (sold separately)
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
