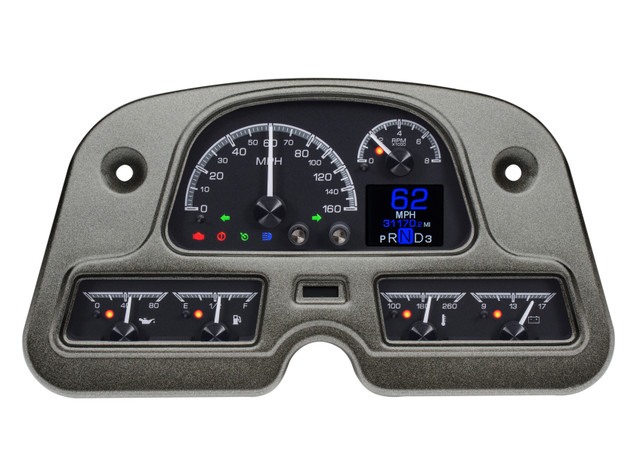

The Dakota Digital HDX-62T-FJ-K is a drop-in HDX instrument system designed for 1962-84 Toyota FJ models using a stock gauge bezel, and can be used with nearly any drivetrain. This version features black alloy gauge-face styling with independently selectable illumination colors for the gauge readings, needles, and message centers.
Calibration and personal settings are managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the control buttons. The system features dead-faced indicators and a red, settable warning light for each gauge, with a central control box that simplifies installation using vehicle-harness sourced signals and supplied solid state sending units.

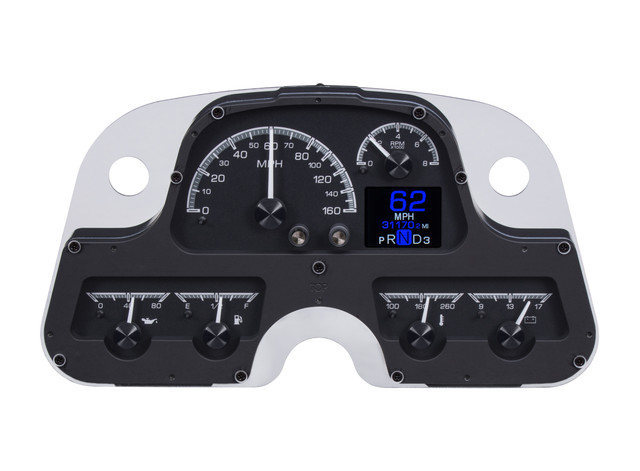

The system uses an OEM or reproduction style bezel; the bezel itself is not included.
Key Features
- Black alloy gauge-face styling with over 30 user-selectable color options for needles, sweep, and digital TFT display
- Independent illumination color control for gauges, needles, and message centers
- Black nickel plated spun-aluminum needle hubs
- Dead-faced indicators for turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable auxiliary indicators
- Red, settable warning light for each gauge
- Full LED/RGB backlighting with 12 factory preset color themes or fully custom color zone selection
- Onboard capacitive-touch pushbutton controls with LED-lit button feedback and included buzzer
- Bluetooth app control and real-time gauge readouts via Android and Apple devices
- Central control box with vehicle-harness sourced signals for simplified installation
- Digital message center with odometer, dual trip meters, clock, estimated range, and performance timers
Specifications
- Part Number: HDX-62T-FJ-K
- Speedometer: 0-160 MPH (split scale resolution of 120 MPH speedometer with 160 MPH top end range)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable driven speed sensor/generator replacing GM style speedometer cables, with 10 ft harness and Toyota drive adaptor
- Bushing kit including 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system uses OEM or reproduction style bezel
- Gear Position indicator requires optional GSS-3000 sensor
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- DIM-1 accessory available for on-the-fly rotary brightness control
- GPS-50-2 accessory available to eliminate need for speedometer calibration
