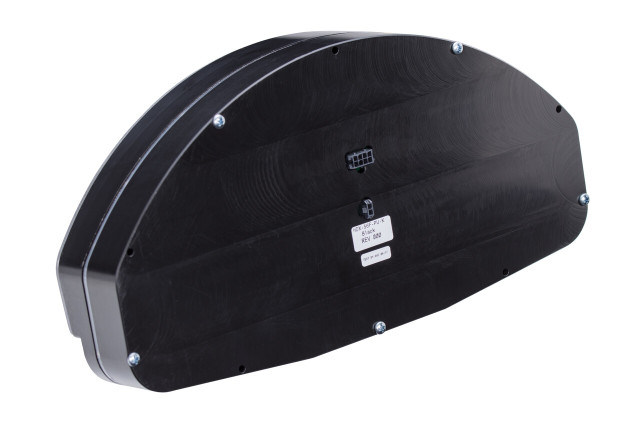

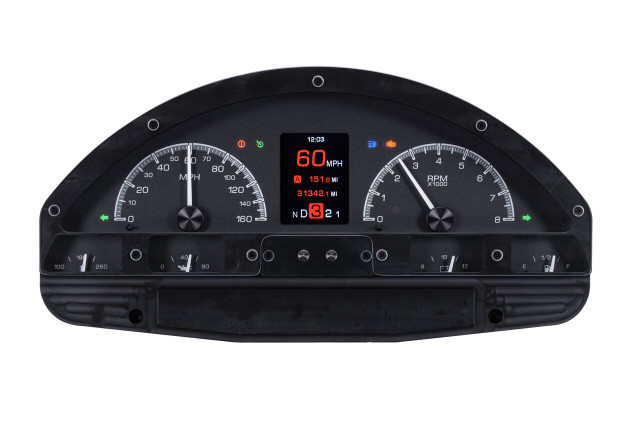

The Dakota Digital HDX-56F-PU-K HDX Instrument System is designed specifically for the one-year-only 1956 Ford F-series pickup, complementing its distinctive wrap-around windshield and built-in visor with a modern, fully digital instrumentation package. This system bolts directly to a stock or reproduction bezel (not included) and features a black gauge-face styling with six analog instruments and a single TFT message center.
Supplied sensors and available modules allow integration with virtually any drivetrain combination. Users can independently select illumination colors for gauge readings, needles, and the message center, with calibration and personal settings handled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the control buttons.
All HDX instrument systems feature dead-faced indicators, a red settable warning light for each gauge, and a central control box that simplifies installation with vehicle-harness sourced signals and supplied solid-state sending units.
Key Features

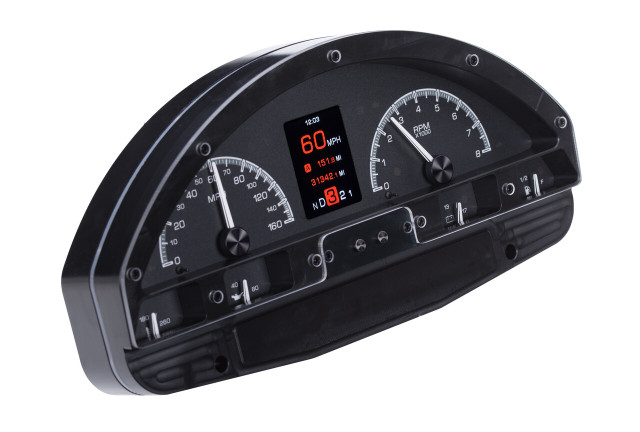

- Six analog instruments plus a single TFT digital message center
- Black alloy gauge-face styling

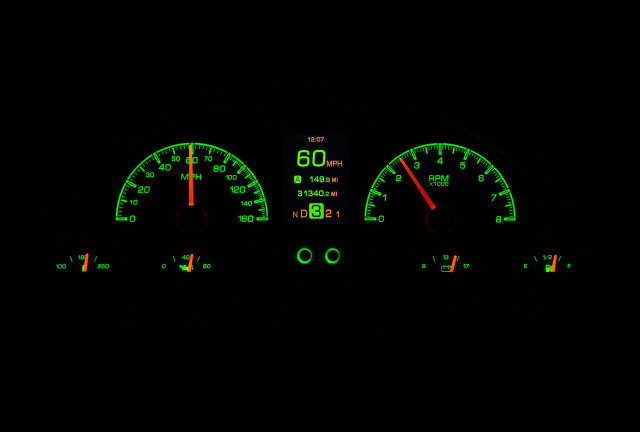

- Over 30 user-selectable color options for needle, sweep, and digital display colors
- 12 factory preset color themes, or fully custom color zone selection
- Full LED/RGB backlighting with unique daytime and nighttime themes
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red settable warning light built into each gauge sweep
- Onboard capacitive-touch pushbuttons with LED lighting for setup and driving mode functions
- Bluetooth app compatibility for Apple and Android devices for configuration and real-time gauge readouts
- Black nickel plated spun-aluminum needle hubs
Specifications
- Part Number: HDX-56F-PU-K
- Speedometer: 0-160 MPH (split scale resolution of 120 MPH speedometer)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator replacing Ford and/or GM style speedometer cables, with 10 ft harness (approximately 5" clearance required between cable drive output and any obstruction; Part # 130011 sold separately for relocation if additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system is designed to use an OEM or reproduction style bezel
- Optional GSS-3000 sensor required for Gear Position indicator functionality
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
- Optional GPS-50-2 can be used to eliminate the need for speedometer calibration
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
