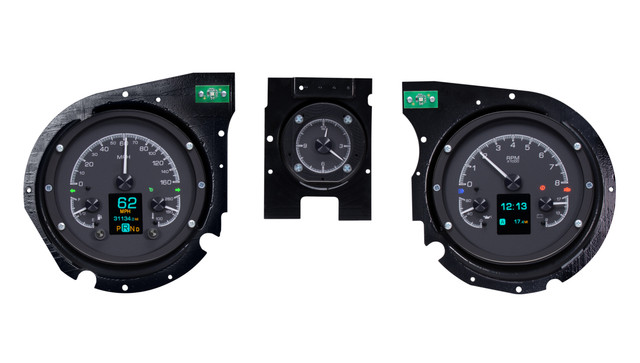

The Dakota Digital HDX-69C-CVL-K is a direct-fit instrument system designed specifically for the 1969 Chevy Chevelle, Malibu, and El Camino, installing cleanly into your original or reproduction instrument housing. This system features a black alloy gauge-face finish with three analog needles and a full-color TFT message center in each large opening, plus an analog clock centered between the two displays.
Each HDX system allows independent control of illumination colors for gauge readings, needles, and message centers, with calibration and personal settings managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Needle hubs are black nickel plated spun-aluminum to match the control buttons. The system uses an OEM or reproduction style bezel, which is not included.

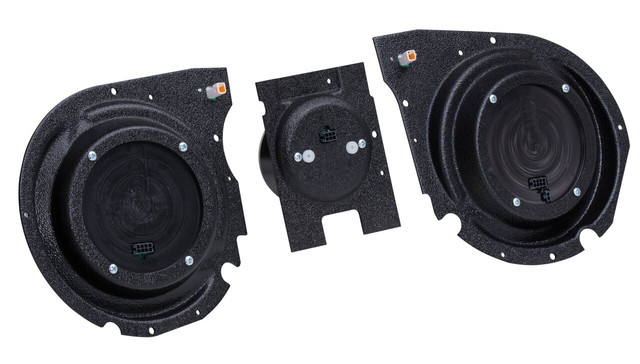

Installation is simplified through a central control box that sources signals from the vehicle harness and connects to supplied, solid-state sending units for clean, straightforward wiring.
Key Features
- Direct fit into original or reproduction 1969 Chevelle, Malibu, or El Camino instrument housing
- Black alloy gauge-face styling with three analog needles and a full-color TFT message center per large opening
- Analog clock centered between the two main gauge openings

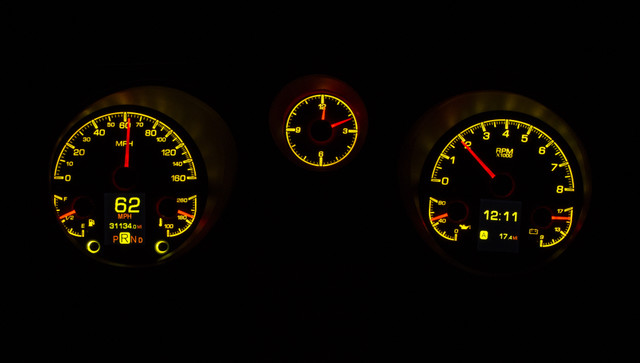

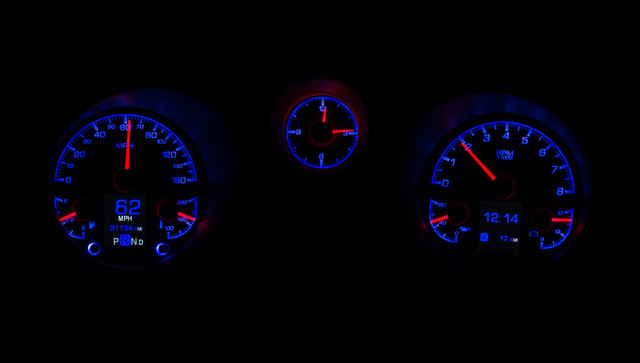

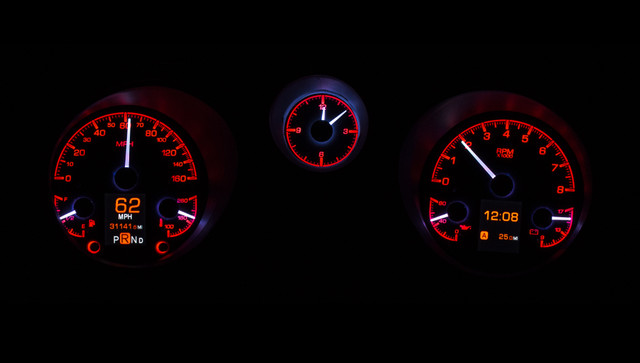

- Independently selectable illumination colors for needles, gauge readings, and message centers
- Over 30 user-selectable color options with 12 factory preset color themes
- Full LED/RGB backlighting for sharp daytime and nighttime visibility
- Built-in capacitive-touch pushbutton controls with Bluetooth app support for Android and Apple devices
- Dead-faced indicators for turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable indicators
- Red, settable warning light for each gauge
- Central control box with vehicle-harness sourced signals and solid-state sending units for simplified installation
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
- Black nickel plated spun-aluminum needle hubs matching the button finish
Specifications
- Part Number: HDX-69C-CVL-K
- Speedometer: 0-160 MPH (split scale resolution of 120 MPH speedometer)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Clock: 12-hour analog clock movement
- Digital Message Center: Odometer, Dual (A/B) Trip Meter, 12-hour Clock, Estimated Range/Miles to Empty
- Control Box Dimensions: 5.5" x 3.5" x 1"
- Gauge-Face Finish: Black alloy
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: Replaces GM style speedometer cables, 10 ft harness (requires approximately 5" clearance between cable drive output and any obstruction)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system uses OEM or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- DIM-1 accessory available separately for on-the-fly rotary brightness control
