Description
Description

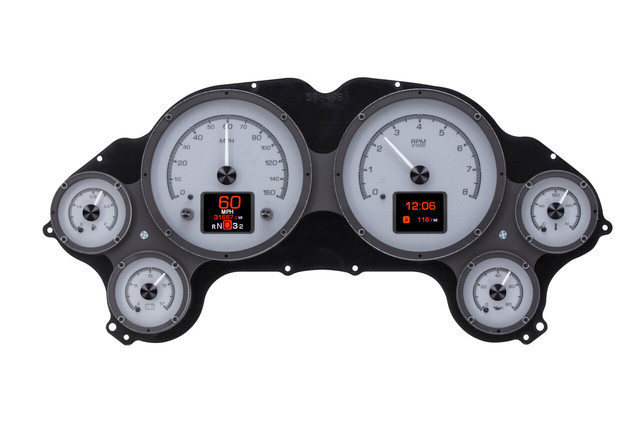

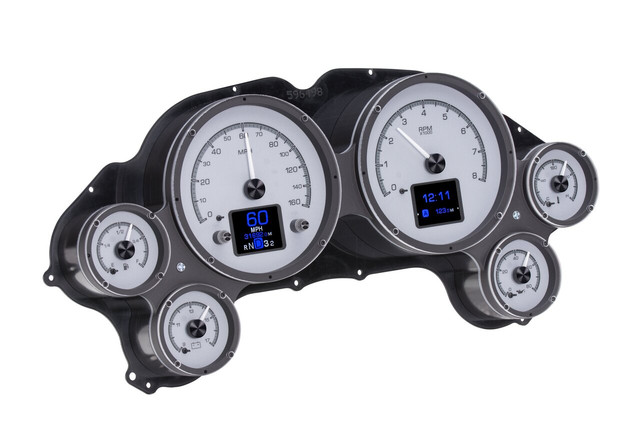

The Dakota Digital HDX-63C-VET-S is a direct-fit, all-in-one instrument system designed for 1963-67 Chevy Corvette applications, featuring a silver alloy gauge-face finish. This one-piece system installs using your stock front bezel, just as the factory assembly did, and combines precision analog gauges with a customizable, full-color TFT message center for additional readings.
Users can independently select illumination colors for gauge readings, needles, and the message center, with calibration and personal settings managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. A central control box simplifies installation with vehicle-harness sourced signals and supplied solid-state sending units that connect cleanly to their respective terminals.
The matching HLC-63C-VET clock is available separately to complete your center console.
Key Features
- Direct-fit, one-piece instrument system for 1963-67 Chevy Corvette using the stock front bezel
- Silver alloy gauge-face styling
- Full-color TFT message center with customizable displays
- Over 30 user-selectable color options for needle, sweep, and digital TFT display colors
- 12 factory preset color themes plus full custom color zone selection
- Full LED/RGB backlighting for sharp daytime and nighttime visibility
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red, settable warning light for each gauge
- Built-in capacitive-touch pushbutton controls plus Bluetooth app configuration for Apple and Android devices
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, and high speed/high RPM recall
- Odometer, dual trip meter, 12-hour clock, and estimated range/miles to empty displays
Specifications
- Part Number: HDX-63C-VET-S
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260ºF
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
- Gauge-Face Finish: Silver alloy
Included Sensors
- Water temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable driven speed sensor/generator replacing GM style speedometer cables, with 10 ft harness (requires approximately 5" clearance between cable drive output and any obstruction; part number 130011 available separately for relocation when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
Stock front bezel is not included; the system uses an OEM or reproduction style bezel. Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed. Optional GSS-3000 sensor required for gear position indication. The DIM-1 accessory is available separately for on-the-fly rotary brightness control. The matching HLC-63C-VET clock is sold separately.
