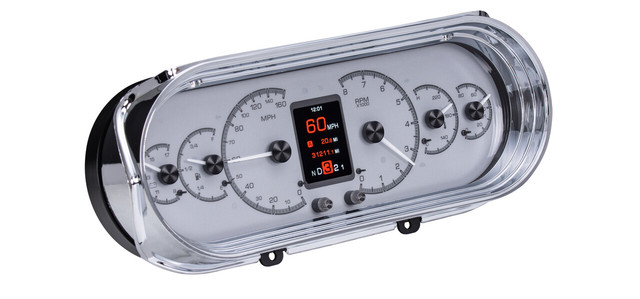

The Dakota Digital HDX-63C-NOV-S is a complete HDX instrument system engineered for the 1963-65 Chevy Nova, featuring a silver alloy gauge-face design. Despite the small instrument housing found in these cars, the HDX system packs six analog readings with true analog readouts, plus a full-color TFT display for additional vehicle information.
This system installs into the stock or reproduction bezel and can also be adapted to 1962 models with the addition of a 1963-65 bezel. Independent illumination colors can be selected for the gauge readings, needles, and message centers, allowing the look of the cluster to be tailored to the vehicle's interior.
Calibration and personal settings are controlled via the built-in capacitive-touch buttons or through the available Bluetooth app for Apple and Android devices, making setup and ongoing adjustments straightforward.
Key Features
- Six analog gauge readings plus a full-color TFT message center
- Silver alloy gauge-face styling
- Independently selectable illumination colors for gauge readings, needles, and message centers
- Black nickel plated spun-aluminum needle hubs to match the control buttons
- Dead-faced indicators for turn signals, high beam, check engine, cruise control, and parking brake, plus two user-definable indicators
- Red, settable warning light for each gauge
- Onboard capacitive-touch pushbuttons with LED lighting through the gauge face
- Bluetooth app compatibility for Android and Apple devices for configuration and real-time gauge readouts
- Central control box simplifies installation with vehicle-harness sourced signals and supplied solid state sending units
Specifications
- Part Number: HDX-63C-NOV-S
- Water Temperature Sensor: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure Sensor: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with a 10 ft harness; sensor requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings Included: 1/8" to 1/4", 3/8" and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 thread bushings
- Control Box Dimensions: 5.5" x 3.5" x 1"
Kit Includes
- HDX instrument cluster with silver alloy gauge faces
- Central control box
- Water temperature sensor with 10 ft harness
- Oil pressure sensor with 10 ft harness
- Cable driven speed sensor/generator with 10 ft harness
- Assorted NPT and metric thread bushings
Notes
- Bezel not included; system uses OEM or reproduction style bezel
- Part #130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- In most cases, speedometer and fuel level are the primary calibration items, unless a GPS-50-2 is used, which negates the need to calibrate the speedometer
