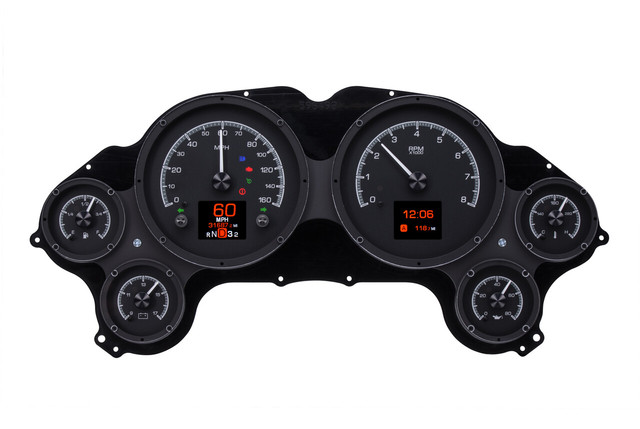

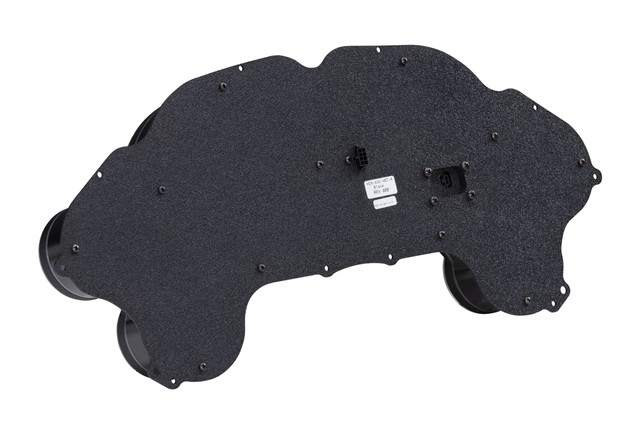

The Dakota Digital HDX-63C-VET-K is an all-in-one, direct-fit instrument system designed for 1963-67 Chevy Corvette models, featuring black alloy gauge-face styling. This one-piece system installs using the stock front bezel, just as the factory assembly did, and includes customizable, full-color TFT message centers for additional readings.
The HDX system allows the user to independently select illumination colors for the gauge readings, needles, and message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons.
All HDX instrument systems feature dead-faced indicators and a red, settable warning light for each gauge. The included central control box simplifies installation with vehicle-harness sourced signals and supplied, solid-state sending units that connect cleanly to their respective terminals.
Key Features
- Direct-fit, one-piece design using the stock front bezel (bezel not included)
- Black alloy gauge-face styling with full LED backlighting and over 30 user-selectable color options
- Independently adjustable needle, sweep, and digital TFT display colors
- 12 factory preset color themes or fully customizable color zones
- Built-in capacitive-touch pushbuttons with LED-lit controls through the gauge face
- Bluetooth app compatibility for Apple and Android devices for setup and real-time readouts
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, and parking brake, plus two user-definable auxiliary indicators
- Red LED sweep indicator on each analog gauge for warning conditions
- Adjustable daytime and nighttime brightness controlled through the HDX setup menu
- Black nickel plated spun-aluminum needle hubs
Specifications
- Part Number: HDX-63C-VET-K
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Digital Message Center Displays
- Odometer (one-time user settable, Million Mile)
- Dual (A/B) Trip Meter (0-9,999.9)
- Clock (12 hour)
- Estimated Range/Miles to Empty
- 0-60 MPH Timer
- 1/4 and 1/8 mile time and trap speed
- High speed recall and high RPM recall
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with a 10 ft harness
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 thread bushings
Notes
- System uses an OEM or reproduction style bezel; bezel is not included
- Gear Position indicator requires the optional GSS-3000 sensor
- Speed sensor requires approximately 5" clearance between the cable drive output and any obstruction; Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required
- Matching HLC-63C-VET clock available separately to complete the center console
- DIM-1 accessory available separately for on-the-fly rotary brightness control
