Description

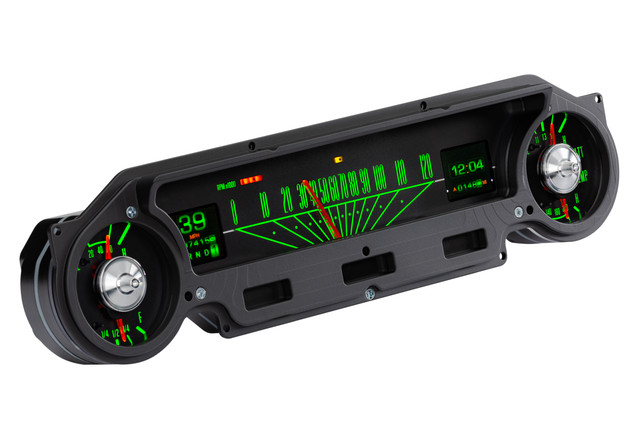

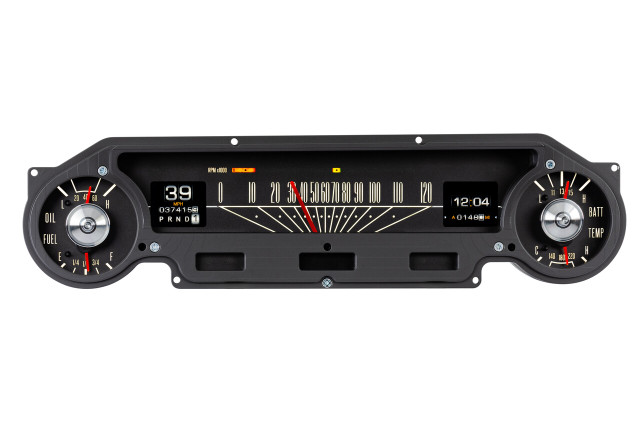

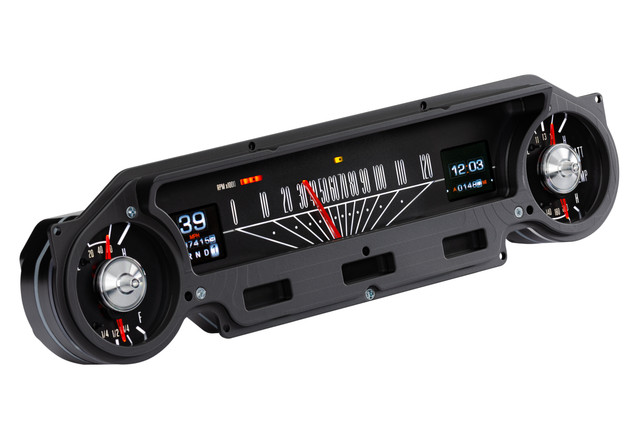

The Dakota Digital RTX-64F-FAL-X is a complete RTX Series instrument system engineered for the 1964-65 Ford Falcon, Ranchero and Mustang. This system combines precision analog gauges with a digital bar graph tachometer and a full-color TFT message center, delivering a striking blend of classic styling and modern technology in a direct-fit package for these vehicles.
Full LED backlighting with RGB capability allows the needle color, sweep color, and digital display color to be independently customized, with over 30 user-selectable color options and 12 factory preset color themes. Daytime and nighttime brightness levels are each adjustable through the RTX setup menu and can be toggled automatically with the headlight switch.
Configuration and calibration are handled through an included two-sided pushbutton rocker switch or through the free RTX mobile app for Android and Apple devices, which also provides real-time gauge readouts for diagnostic use or as a secondary display.
Key Features
- Analog speedometer, oil pressure, water temperature, fuel level, and voltmeter gauges
- Digital bar graph tachometer
- Digital message center with odometer, dual trip meters, 12-hour clock, and estimated range/miles to empty
- Built-in performance meters: 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, 4x4, wait to start, and two user-programmable auxiliary inputs
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
- Full LED/RGB backlighting with independently adjustable needle, sweep, and display colors
- 12 factory preset color themes or fully custom color zone selection
- Pushbutton rocker switch control plus Bluetooth mobile app configuration and monitoring
Specifications
- Part Number: RTX-64F-FAL-X
- Speedometer Range: 0-120 MPH
- Oil Pressure Range: 0-80 psi
- Water Temperature Range: 100-260°F
- Fuel Level Display: E, 1/4, 1/2, 3/4, F
- Voltmeter Range: 9-17 VDC
- Tachometer Range: 0-8,000 RPM
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable driven speed sensor/generator replacing Ford and/or GM style speedometer cables, with 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings for 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread applications
Kit Includes
- RTX instrument cluster with analog gauges, digital tachometer, and TFT message center
- Two-sided pushbutton rocker switch for setup and operation
- Water temperature and oil pressure sensors with harnesses
- Cable driven speed sensor/generator with harness
- Assorted NPT and metric thread bushings
Notes
- Not all OEM indicator lamp functions are replaced; unused indicators may be repurposed as needed for the application
- Gear position indicator requires the optional GSS-3000 sensor, sold separately
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required
- Rotary-style on-the-fly dimming is available with the optional DIM-1 accessory, sold separately
