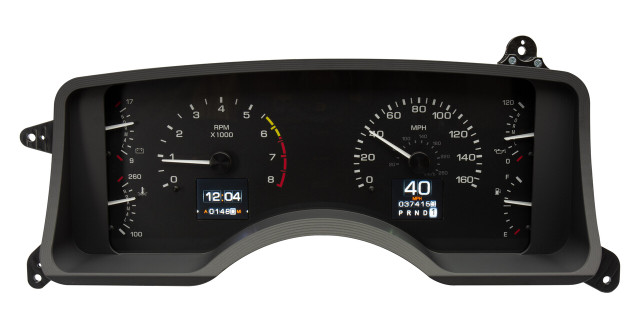

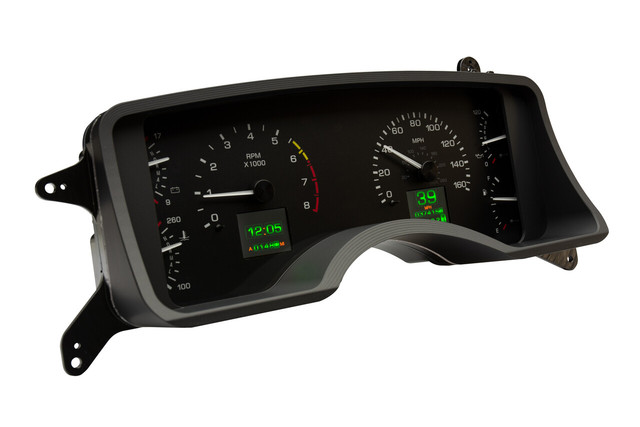

The Dakota Digital RTX-90F-MUS-X is a direct-fit RTX instrument system engineered specifically for 1990-93 Ford Mustang models. Designed to retain the stock dash appearance, this system faithfully reproduces the OEM layout, face styling and indicator placement while delivering the advanced features of a modern late-model instrument cluster.

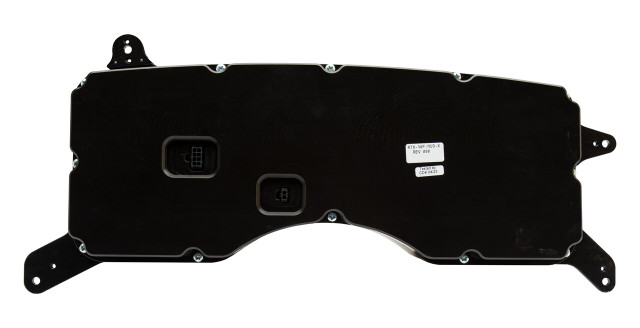

Each RTX gauge cluster begins with a CNC-machined housing filled with electronics designed and built in-house by Dakota Digital. A high-definition TFT message center can be configured to display a wide range of vehicle information, while full LED/RGB backlighting allows the driver to select from over 30 color options for the needles, sweep, and digital display. A central control box simplifies installation and setup.
This system uses an OEM or reproduction style bezel, which is not included and is shown for visual/presentation purposes only.
Key Features
- Analog speedometer, tachometer, oil pressure, water temperature, fuel level, and voltmeter gauges with OEM-style faces
- High-definition TFT digital message center with configurable displays
- Odometer, dual (A/B) trip meter, 12-hour clock, and estimated range/miles to empty
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, 4x4, wait to start, and two user-programmable auxiliary inputs
- Red LED sweep indicator on each analog gauge (except speedometer) for quick warning notice
- Over 30 user-selectable color options for needles, sweep, and TFT display, plus 12 factory preset color themes
- Independently adjustable daytime and nighttime brightness, toggled by the headlight switch
- Two-sided pushbutton rocker switch for easy setup and menu navigation
- Complete configuration also available through the free Dakota Digital mobile app (Android and Apple compatible)
Specifications
- Part Number: RTX-90F-MUS-X
- Vehicle Application: 1990-93 Ford Mustang
- Speedometer Range: 0-160 MPH
- Tachometer Range: 0-8,000 RPM
- Oil Pressure Range: 0-80 psi
- Water Temperature Range: 100-260°F
- Fuel Level Display: E, 1/4, 1/2, 3/4, F
- Voltmeter Range: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable-driven speed sensor/generator with plug to block off the stock speedometer cable output (uses stock Ford speed sensor)
- Bushing kit including 1/8" to 1/4", 3/8", and 1/2" NPT sizes, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system is designed to use an OEM or reproduction style bezel
- Gear position indicator requires optional GSS-3000 sensor
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Speedometer calibration can be bypassed when used with an optional GPS-50-2 sensor
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
