Description

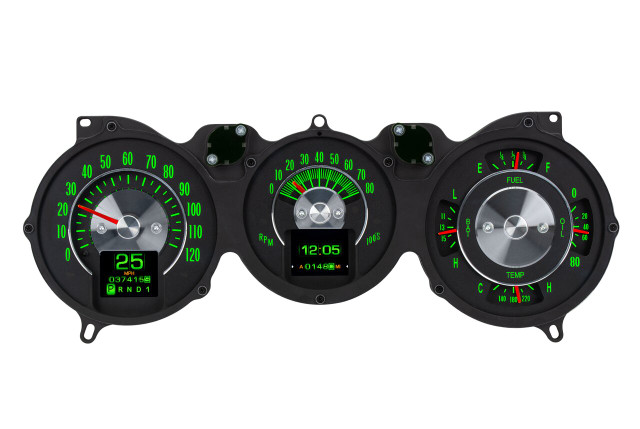

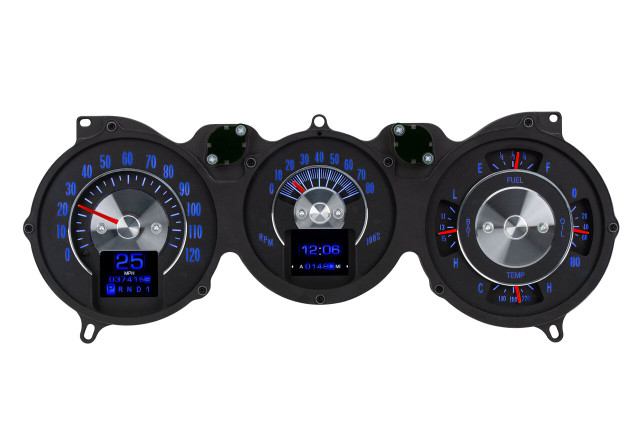

The Dakota Digital RTX-64C-CVL-X is a bolt-in RTX Series instrument system engineered specifically for the 1964-65 Chevy Chevelle, Malibu, and El Camino. Featuring spun aluminum accents and multi-layer dimension, this system delivers the finishing touch for both pro-touring builds and near-stock restorations while retaining the stock, OEM-inspired look.
Twin TFT message centers are seamlessly integrated into the sixties-era design, and new LEDs utilize the factory turn signal locations. Every effort has been made to incorporate OEM design elements in the layout, face styling, and indicators, so a casual glance may mistake this system for original equipment—until the LED backlighting illuminates in your chosen color scheme.
CNC-machined housings are filled with in-house designed and built electronics, and the high-definition TFT message centers can be fully configured to display a wide range of information. A central control box simplifies installation and setup, continuing Dakota Digital's commitment to user-friendly, advanced instrumentation.
Key Features
- Analog gauges include Speedometer (0-120 MPH), Tachometer (0-8,000 RPM), Oil Pressure (0-80 psi), Water Temperature (100-260°F), Fuel Level (E, 1/4, 1/2, 3/4, F), and Voltmeter (9-17 VDC)
- Twin high-definition TFT digital message centers with standard displays including Odometer, Dual (A/B) Trip Meter, 12-hour Clock, and Estimated Range/Miles to Empty
- Performance meters including 0-60 MPH Timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
- Built-in indicators for Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control, Gear Position (optional GSS-3000 sensor required), 4x4, Wait to Start, and two user-programmable auxiliary inputs
- Each analog gauge sweep (except speedometer) includes a red LED indicator for quick notice of a warning condition
- Over 30 user-selectable color options for independent control of needle color, sweep color, and digital TFT display color
- 12 factory preset color themes, or fully customizable color zones
- Full LED/RGB backlighting with separate daytime and nighttime brightness and color themes, controlled via the headlight switch
- Pushbutton rocker switch control included for setup and operation, with button-press feedback via the TFT Message Center or included buzzer
- Free mobile app (Android and Apple) for complete system configuration, menu navigation, and real-time gauge readouts
Specifications
- Part Number: RTX-64C-CVL-X
- Vehicle Application: 1964-65 Chevy Chevelle/Malibu/El Camino
- Speedometer Range: 0-120 MPH
- Tachometer Range: 0-8,000 RPM
- Oil Pressure Range: 0-80 psi
- Water Temperature Range: 100-260°F
- Fuel Level Display: E, 1/4, 1/2, 3/4, F
- Voltmeter Range: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables, includes 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction (Part # 130011, sold separately, allows relocation of the pulse generator when additional clearance is required)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Kit Includes
- RTX instrument cluster with twin TFT message centers
- Central control box
- Two-sided pushbutton rocker switch
- Water temperature and oil pressure sensors with harnesses
- Cable driven speed sensor/generator with harness
- NPT and metric thread bushings
Notes
- Bezel is not included; system uses an OEM or reproduction style bezel
- Reproduction bezels for 1964 and 1965 Chevy Chevelle, with and without A/C, are available separately
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Optional GSS-3000 sensor required for Gear Position indicator
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
