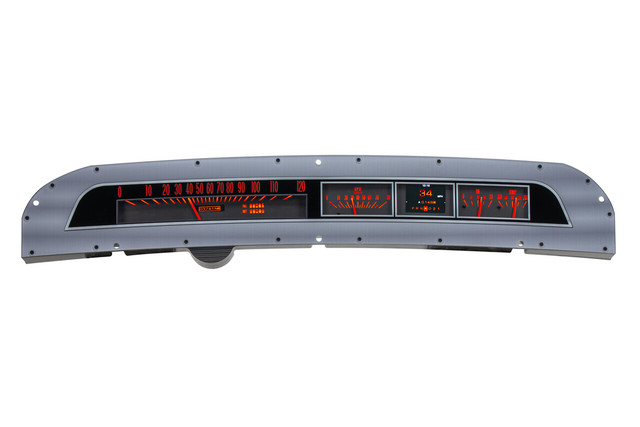

The Dakota Digital RTX-64C-IMP-X RTX Instrument System brings late-model technology to the 1964 Chevy Impala while retaining the factory instrument cluster appearance. Drawing on the original 1963-64 Chevy Impala, Bel Air and Biscayne layout, this system adds LED backlighting, a TFT message center and full color-changing capability. It uses your stock steel front bezel (not supplied) and connects to anything from a 283 to a twin turbo LS3.
The RTX series focuses on retaining a stock appearance without sacrificing modern features. OEM design elements are carefully incorporated into the layout, face styling and indicators, so at a casual glance the gauges look original equipment. Once powered on, the LED backlighting illuminates in your chosen color scheme, revealing the advanced technology within.

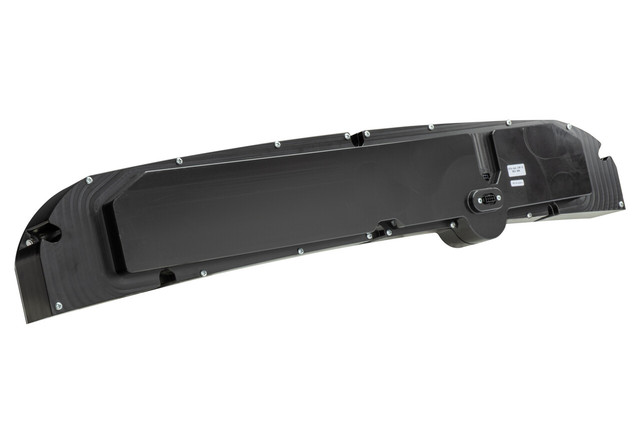

Each RTX system features CNC machined housings filled with in-house designed and built electronics. The high-definition TFT message center can be configured to display a wide range of information, and a central control box simplifies installation and setup.
Key Features
- Analog speedometer, tachometer, oil pressure, water temperature, fuel level and voltmeter gauges with factory-style appearance
- High-definition TFT message center with standard displays and performance meters

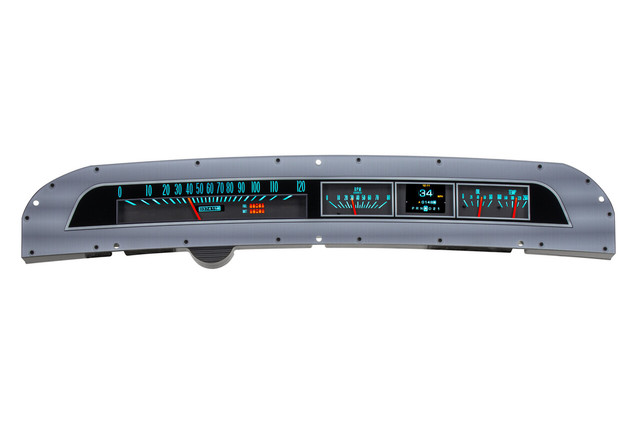

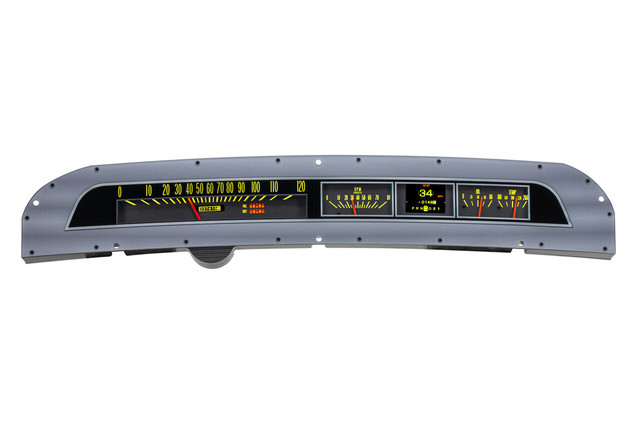

- Over 30 user-selectable color options for independently changing needle, sweep and digital display colors
- 12 factory preset color themes plus full custom color zone selection
- Full LED/RGB backlighting with independent daytime and nighttime themes
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control and more, plus two programmable auxiliary indicators
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
- Pushbutton control via included two-sided rocker switch for setup and menu navigation
- Configurable through the free Dakota Digital mobile app for Android and Apple devices
- Uses your stock steel front bezel (not supplied)
Specifications
- Part Number: RTX-64C-IMP-X
- Speedometer: 0-120 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One time user settable, Million Mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH Timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables, includes 10 ft harness; sensor requires approximately 5" clearance between cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Kit Includes
- RTX instrument cluster with analog gauges and TFT message center
- Central control box
- Two-sided pushbutton rocker switch
- Water temperature and oil pressure sensors with harnesses
- Cable driven speed sensor/generator with harness
- Assortment of bushings
Notes
- Stock steel front bezel is required but not included; system uses an OEM or reproduction style bezel
- Vehicles with factory A/C will require modifications to the stock gauge bezel ductwork
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- DIM-1 is a common accessory for on-the-fly rotary dimmer control
