Description

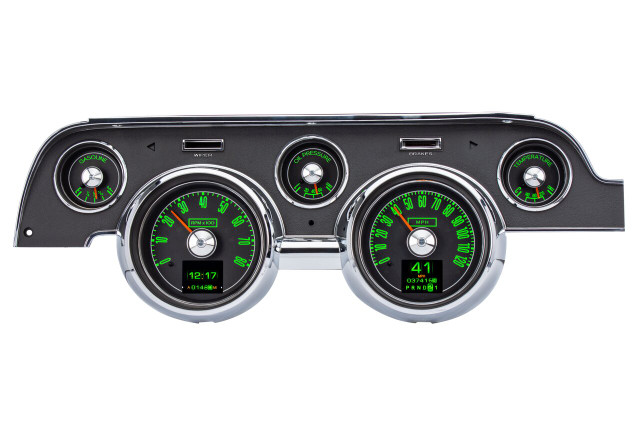

The Dakota Digital RTX-67F-MUS-X is a complete RTX Series instrument system designed specifically for the 1967-68 Ford Mustang. This system combines precise analog gauge movements with a crisp digital message center, delivering accurate performance data alongside customizable lighting and display options. Built to replace the factory instrument cluster, it offers a direct fit appearance while bringing modern electronics and features to the dash.
Each gauge features full LED backlighting with over 30 user-selectable color options, allowing independent control of needle color, sweep color, and digital TFT display color. Twelve factory preset color themes are included, or users can build their own custom color zones for a truly personalized look, day or night.
Calibration and operation are handled through an included two-sided pushbutton rocker switch or through the free RTX mobile app for Android and Apple devices, providing convenient setup, diagnostics, and real-time gauge readouts.
Key Features
- Analog Speedometer: 0-120 MPH
- Analog Tachometer: 0-8,000 RPM
- Oil Pressure Gauge: 0-80 psi
- Water Temperature Gauge: 100-260°F
- Fuel Level Gauge: E, 1/4, 1/2, 3/4, F
- Digital Voltmeter: 9-17 VDC
- Odometer (one-time user settable, million mile), Dual (A/B) Trip Meter (0-9,999.9), 12-hour Clock, and Estimated Range/Miles to Empty displays
- Built-in performance meters: 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall

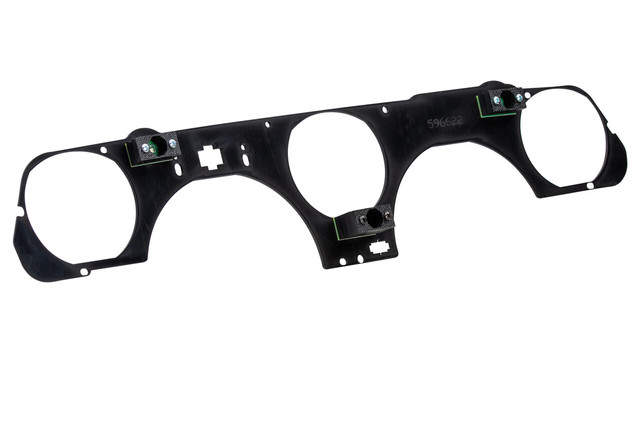

- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, gear position (optional GSS-3000 sensor required), 4x4, wait to start, and two auxiliary inputs with user-programmable labels
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
- Full RGB LED backlighting with 12 factory preset color themes plus fully customizable color zones
- Daytime and nighttime brightness control through the HDX setup menu, toggled by the headlight switch; DIM-1 accessory available for on-the-fly rotary dimming
- Calibration and operation through included pushbutton rocker switch or free RTX mobile app
Specifications
- Part Number: RTX-67F-MUS-X
- Vehicle Application: 1967-68 Ford Mustang
- Speedometer Range: 0-120 MPH
- Tachometer Range: 0-8,000 RPM
- Oil Pressure Range: 0-80 psi
- Water Temperature Range: 100-260°F
- Fuel Level Display: E, 1/4, 1/2, 3/4, F
- Voltmeter Range: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature Sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil Pressure Sensor: 1/8" NPT solid state, with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces Ford and/or GM style speedometer cables, with 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction (Part # 130011 sold separately for relocation when additional clearance is needed)
- Bushing kit: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Kit Includes

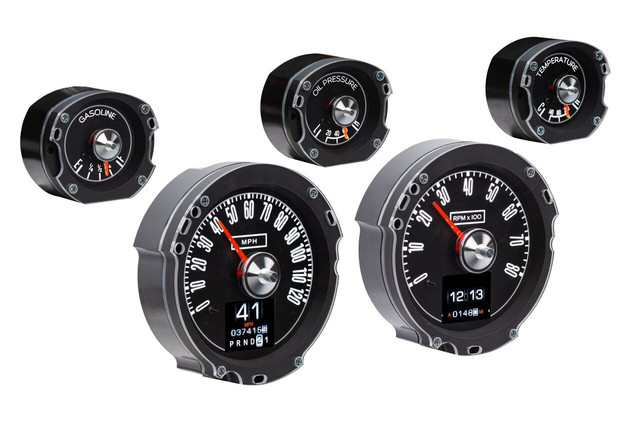

- RTX instrument cluster with analog gauges and digital message center
- Two-sided pushbutton rocker switch for setup and operation
- Water temperature sensor with harness
- Oil pressure sensor with harness
- Cable driven speed sensor/generator with harness
- NPT and metric thread bushing kit
Notes
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed for the application
- Speedometer calibration is completed via the pushbutton switch or Bluetooth app with a short test drive, unless an optional GPS-50-2 is used
