Description

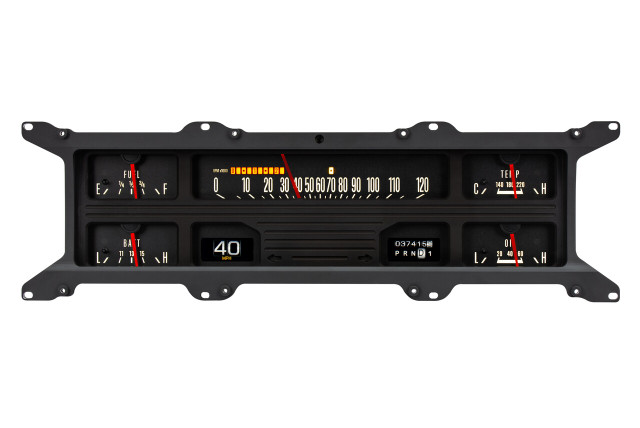

The Dakota Digital RTX-67F-PU-X RTX Instrument System is a bolt-in upgrade designed for 1967-72 Ford F-Series pickups, retaining the factory gauge bezel while delivering a complete late-model instrumentation experience. The system includes sensors for oil pressure, coolant temperature and speed, and features an LED bar graph tachometer positioned above the speedometer along with twin TFT message centers for full-color information display.
Every detail of the RTX series has been engineered to preserve the OEM look, from the gauge layout to the face styling and indicators. A casual glance may mistake these gauges for stock equipment, but once the LED backlighting is activated, the advanced capability becomes clear. Thanks to built-in Bluetooth technology and Dakota Digital's free mobile app, users can adjust LED backlighting colors to match their preference.
Each RTX system starts with CNC-machined housings filled with in-house designed and built electronics. The high-definition TFT message centers can be configured to display a wide range of vehicle information, and a central control box simplifies installation and setup. Vehicles equipped with a Lightning or Coyote drivetrain can utilize the optional BIM-01-2 OBD-II/CAN interface for added connectivity.
Key Features
- Bolts into the stock plastic or metal gauge bezel for a factory-style appearance
- LED bar graph tachometer positioned above the speedometer
- Twin high-definition TFT message centers with full configurability
- Bluetooth connectivity with free mobile app for adjusting LED backlighting colors
- CNC-machined housings with in-house designed electronics
- Central control box for simplified installation and setup
- Over 30 user-selectable color options for needle, sweep, and digital TFT display colors
- 12 factory preset color themes plus fully customizable color zones
- Full LED/RGB backlighting with independent daytime and nighttime themes
- Adjustable daytime and nighttime brightness, toggled by the headlight switch
Specifications
- Part Number: RTX-67F-PU-X
- Speedometer: 0-120 MPH
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Tachometer: 0-8,000 RPM (digital bar graph)
- Standard Displays: Odometer (user settable, million mile), Dual (A/B) Trip Meter (0-9,999.9), Clock (12 hour), Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH Timer, 1/4 and 1/8 mile time, 1/4 and 1/8 mile trap speed, high speed recall, high RPM recall
- Built-in Indicators: Turn signals (left/right), high beam, check engine, parking brake, cruise control, gear position (optional GSS-3000 sensor required), 4x4, wait to start, two auxiliary input indicators with user-programmable labels
- Each analog gauge sweep includes a red LED indicator for warning conditions (except speedometer)
Included Sensors
- Oil pressure sensor
- Coolant temperature sensor
- Speed sensor
Notes
- System uses the OEM gauge bezel; bezel is not included and is shown for visual/presentation purposes only
- Optional BIM-01-2 OBD-II/CAN interface recommended for vehicles equipped with a Lightning or Coyote drivetrain
- Optional GSS-3000 sensor required for gear position indicator functionality
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
