Description

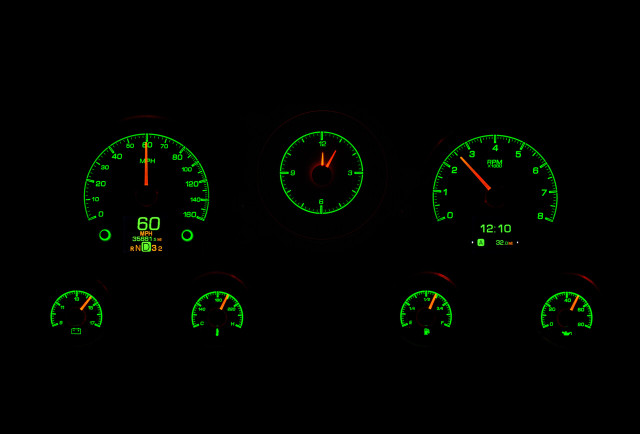

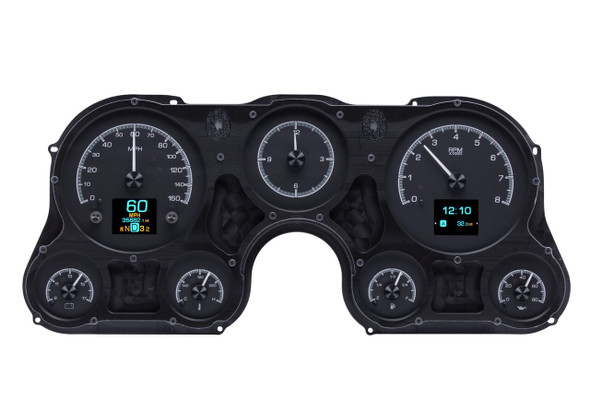

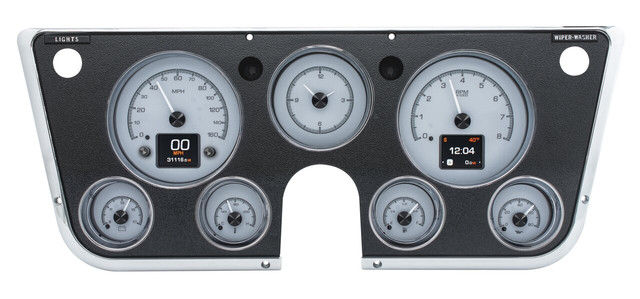

The Dakota Digital HDX-67C-PU-S is a complete HDX instrument system engineered specifically for 1967-72 Chevy/GMC pickups, designed to fill the original seven-hole dash cluster with modern technology while retaining classic style. This system features a silver alloy gauge face and includes six analog gauges plus a clock and twin TFT message centers, giving the driver comprehensive, real-time information at a glance.
Each HDX system allows independent selection of illumination colors for gauge readings, needles, and message centers, with calibration and personal settings controlled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Needle hubs are black nickel plated spun-aluminum to match the buttons, and all HDX systems include dead-faced indicators along with a red, settable warning light for each gauge.
Installation is simplified through a central control box that uses vehicle-harness sourced signals along with supplied, solid-state sending units that connect cleanly to their respective terminals. The system is designed to use a stock or reproduction dash bezel, which is not included.
Key Features
- Six analog gauges: speedometer, tachometer, oil pressure, water temperature, fuel level, and voltmeter, plus a 12-hour analog clock
- Twin TFT digital message centers displaying odometer, dual trip meters, clock, and estimated range/miles to empty
- Built-in performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, and high speed/RPM recall
- Silver alloy gauge face with over 30 user-selectable illumination colors for needles, sweep, and digital displays
- 12 factory preset color themes or fully customizable color zones
- Full LED/RGB backlighting for sharp daytime and nighttime visibility
- Dead-faced indicators for turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable auxiliary indicators
- Red LED warning indicator built into each analog gauge sweep for quick notice of a warning condition
- Onboard capacitive touch pushbuttons with button-press feedback via TFT message center or included buzzer
- Full system calibration and configuration available through the Bluetooth app for Android and Apple devices
- Central control box simplifies installation using vehicle-harness sourced signals and included solid-state sending units
Specifications
- Part Number: HDX-67C-PU-S
- Gauge Face: Silver Alloy
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Clock: 12-hour analog movement
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable-driven speed sensor/generator replacing GM style speedometer cables, with 10 ft harness
- Bushing kit including 1/8" to 1/4", 3/8" and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 thread bushings
Notes
- System is designed to fit a stock or reproduction dash bezel; bezel is not included and may be purchased separately (ICM-67C-PU)
- Gear position indicator requires optional GSS-3000 sensor, sold separately
- Cable driven speed sensor requires approximately 5" of clearance between the cable drive output and any obstruction; part number 130011 (sold separately) allows relocation of the pulse generator when additional clearance is needed
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed for the application
- An optional DIM-1 accessory is available for on-the-fly rotary brightness control
