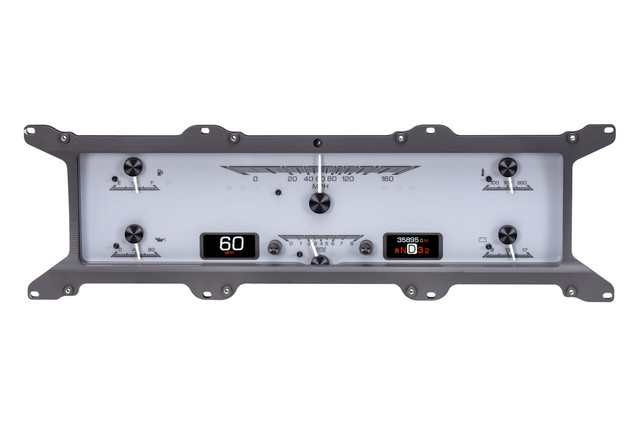

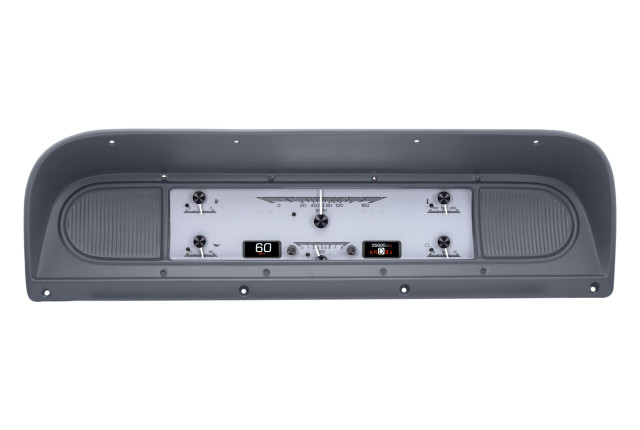

The Dakota Digital HDX-67F-PU-S brings a fully customizable digital instrument system to the 1967-72 Ford "bumpside" pickup, featuring a silver alloy gauge-face styling. This direct-fit package is designed to work with both the plastic and steel front bezels (bezel not included), making installation straightforward using the OEM or a reproduction style bezel.
Supplied sensors and available expansion modules allow the HDX system to mate with the drivetrain of your choice, while the full-color TFT message center provides additional information at a glance. Users can independently select illumination colors for the gauge readings, needles, and message centers, with calibration and personal settings managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices.
Each HDX instrument system features dead-faced indicators, a red settable warning light for each gauge, and a central control box that simplifies installation with vehicle-harness sourced signals and supplied solid-state sending units.
Key Features
- Silver alloy gauge-face styling with black nickel plated spun-aluminum needle hubs
- Over 30 user-selectable color options for independent control of needle color, sweep color, and digital TFT display color
- 12 factory preset color themes, plus full custom color zone selection
- Full LED/RGB backlighting with separate daytime and nighttime themes
- Daytime and nighttime brightness control through the HDX setup menu, toggled by the headlight switch
- Onboard capacitive touch pushbuttons with button-press feedback via TFT message center or included buzzer
- Full system configuration and real-time gauge readouts available through the Bluetooth app
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
Specifications
- Part Number: HDX-67F-PU-S
- Speedometer: 0-160 MPH, split scale resolution of a 120 MPH speedometer
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, million mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty display
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator replacing Ford and/or GM style speedometer cables with a 10 ft harness (requires approximately 5" clearance between the cable drive output and any obstruction)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system is designed to use an OEM or reproduction style bezel
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
