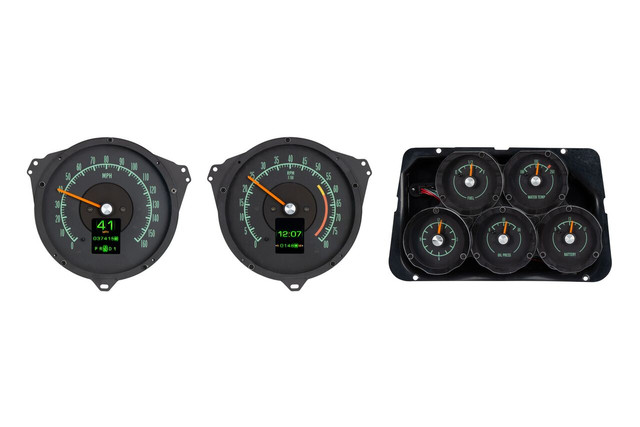

The Dakota Digital RTX-68C-VET-X RTX Instrument System brings a bolt-in, late-model upgrade to 1968-77 Chevy Corvettes while retaining an authentic factory appearance. The system is designed to work with the stock instrument rear housings and front bezels, with Dakota Digital supplying the clear lenses and world-class instrumentation. A clock is included.
The RTX series focuses on retaining the stock look without sacrificing late-model features, incorporating OEM design elements in layout, face styling and indicators. A casual glance may mistake these gauges for original equipment, but activating the LED backlighting in your favorite color scheme reveals the advanced technology within.
CNC machined housings are filled with electronics designed and built in-house by Dakota Digital. Twin high-definition TFT message centers can be fully configured to display a wide range of information, and the system utilizes a central control box to simplify installation and setup, making it easy to mate this package to a late-model drivetrain.
Key Features
- Bolt-in design utilizes stock instrument rear housings and front bezels
- Twin high-definition TFT message centers for configurable information display
- CNC machined housings with in-house designed and built electronics
- Central control box for simplified installation and setup
- Over 30 user-selectable color options for needle, sweep, and digital TFT display colors
- 12 factory preset color themes or fully customizable color zones
- Full LED/RGB backlighting with independent daytime and nighttime themes
- Adjustable daytime and nighttime brightness, toggled by the headlight switch
- Red LED indicator built into each analog gauge sweep for quick notice of warning conditions (except speedometer)
Specifications
- Part Number: RTX-68C-VET-X
- Vehicle Fitment: 1968-77 Chevy Corvette
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Standard Displays: Odometer (one-time user settable, million mile), Dual (A/B) Trip Meter (0-9,999.9), Clock (12 hour), Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH Timer, 1/4 and 1/8 mile time, 1/4 and 1/8 mile trap speed, high speed recall, high RPM recall

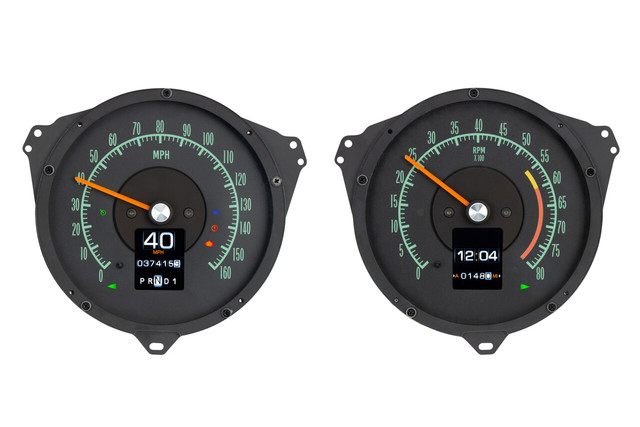

- Built-in Indicators: Turn Signals (Left/Right), High Beam, Check Engine, Parking Brake, Cruise Control, Gear Position (optional GSS-3000 sensor required), 4x4, Wait to Start, two auxiliary input indicators with user-programmable labels
Notes
- Bezel not included; system uses an OEM or reproduction style bezel.
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed to suit the application.
- Optional GSS-3000 sensor required for Gear Position indicator functionality.
- DIM-1 is a common accessory for adding on-the-fly rotary brightness control.
