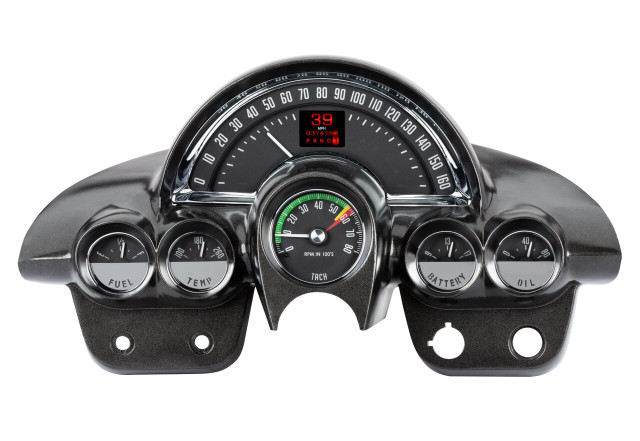

The Dakota Digital RTX-58C-VET-X RTX Instrument System brings late-model technology to the 1958-62 Chevy Corvette while preserving the stock dash appearance. This bolt-in system retains the OEM design cues of layout, face styling and indicators, but adds full LED backlighting, a full-color TFT message center, LED indicators, precision stepper motor needle movements and EFI integration capabilities.

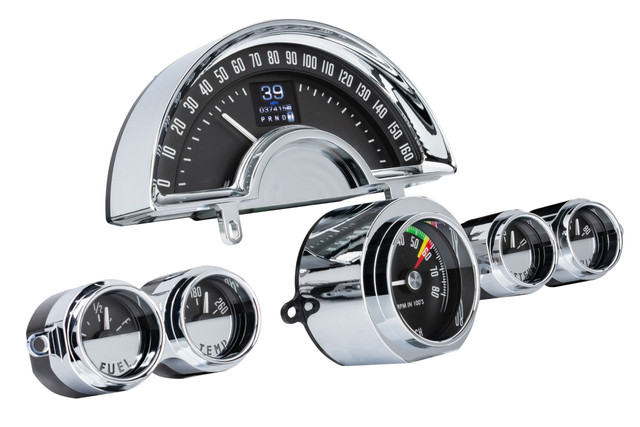

CNC machined housings are filled with electronics designed and built in-house by Dakota Digital, and the system uses a central control box to simplify installation and setup. The high-definition TFT message center can be configured to display a wide range of vehicle information, and the system uses an OEM or reproduction style instrument housing with chrome plated billet gauge bezels included.
Key Features
- Full-color TFT message center with configurable displays
- LED indicator lighting and precision stepper motor needle movements
- EFI integration capabilities
- Over 30 user-selectable colors for needle, sweep and digital TFT display
- 12 factory preset color themes, or fully customizable color zones
- Independently adjustable daytime and nighttime brightness, toggled by the headlight switch
- Pushbutton rocker switch control for calibration and menu navigation
- Configurable via free mobile app for Android and Apple devices
- Chrome plated billet gauge bezels included
Specifications
- Part Number: RTX-58C-VET-X
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Digital Message Center Functions
- Odometer (one-time user settable, Million Mile)
- Dual (A/B) Trip Meter (0-9,999.9)
- 12-hour Clock
- Estimated Range/Miles to Empty
- 0-60 MPH Timer
- 1/4 and 1/8 mile time and trap speed
- High speed recall and high RPM recall
Built-in Indicators
- Turn signals (left/right)
- High beam
- Check engine
- Parking brake
- Cruise control (on/engaged, when equipped)
- Gear position (optional GSS-3000 sensor required)
- 4x4 and Wait to Start (when equipped)
- Two auxiliary input indicators with user-programmable labels
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator with 10 ft harness, replacing GM style speedometer cables (requires approximately 5" clearance; part #130011 available separately for relocation when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Requires stock, cast-metal dash pods; dash housing itself is not included
- Not all OEM indicator lamp functions will be replaced; unused indicators can be repurposed as needed
- DIM-1 is a common accessory for on-the-fly rotary brightness control (sold separately)
- GPS-50-2 may be used to eliminate the need for speedometer calibration
