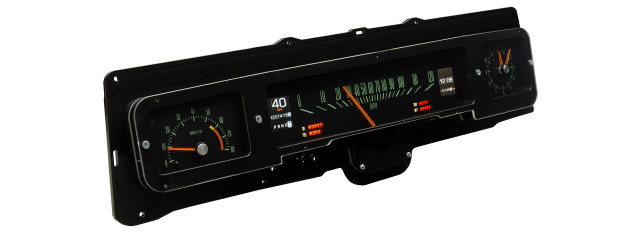

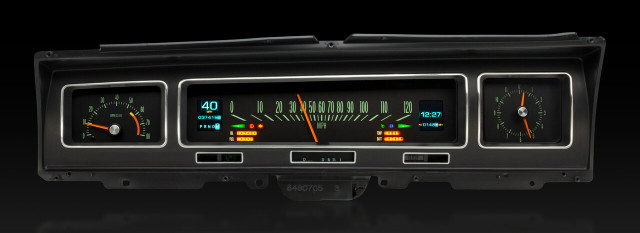

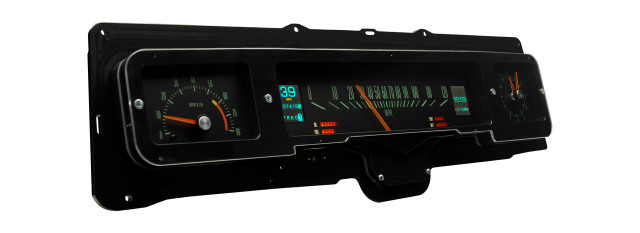

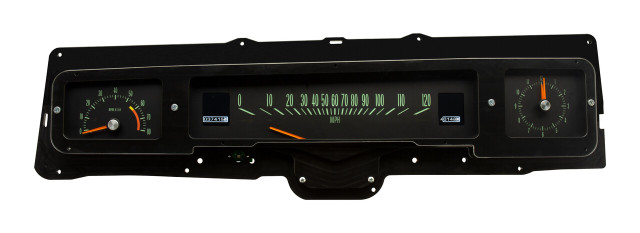

The Dakota Digital RTX-68C-IMP-X is a direct-fit RTX instrument system designed for the 1968 Chevy Impala, Caprice, Bel Air and Biscayne. Built to retain the stock dash appearance, this system incorporates OEM design elements in its layout, face styling and indicators, so a casual glance may mistake it for original equipment. Once powered on, full LED backlighting in your chosen color scheme reveals the advanced technology hidden within.
Each RTX gauge housing is CNC machined and filled with electronics designed and built in-house by Dakota Digital. The high-definition TFT message centers can be configured to display a wide range of vehicle information, and a central control box simplifies installation and setup.

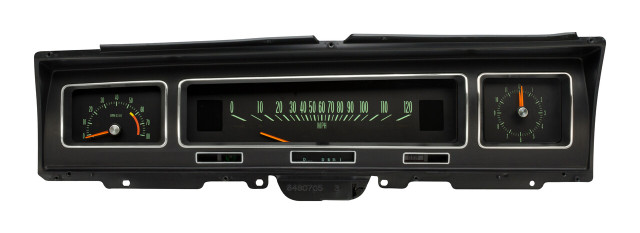

Note: The bezel is not included with this system; it is designed to use the OEM bezel.
Key Features
- Direct-fit replacement for 1968 Chevy Impala, Caprice, Bel Air and Biscayne instrument clusters
- CNC-machined gauge housings with in-house designed electronics
- High-definition TFT digital message center, fully configurable
- Central control box for streamlined installation and setup
- Over 30 user-selectable color options for needle, sweep and TFT display colors
- 12 factory preset color themes or fully custom color zone selection
- Full LED/RGB backlighting with independent day and night themes
- Pushbutton rocker switch control with buzzer feedback
- Configurable through free mobile app (Android and Apple compatible)
- Built-in performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall and high RPM recall
Specifications
- Part Number: RTX-68C-IMP-X
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Clock: 12 Hr Analog Clock Movement
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Digital Message Center Displays
- Odometer (one-time user settable, million mile)
- Dual (A/B) Trip Meter (0-9,999.9)
- Clock (12 hour)
- Estimated Range/Miles to Empty
- 0-60 MPH Timer
- 1/4 and 1/8 mile time and trap speed
- High speed recall and high RPM recall
Built-in Indicators
- Turn Signals (Left/Right)
- High Beam
- Check Engine
- Parking Brake
- Cruise Control (On/On & Engaged when vehicle is equipped)
- Gear Position (optional GSS-3000 sensor required)
- 4x4 (when vehicle is equipped)
- Wait to Start (when vehicle is equipped)
- Two auxiliary input indicators with user-programmable labels
- Red LED sweep indicator on each analog gauge (except speedometer) for warning conditions
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM-style speedometer cables, includes 10 ft harness; requires approximately 5" of clearance between the cable drive output and any obstruction (Part # 130011, sold separately, allows relocation of the pulse generator when additional clearance is needed; Tremec and Ford style adaptors available on request)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Kit Includes
- RTX instrument cluster assembly
- Central control box
- Two-sided pushbutton rocker switch
- Water temperature and oil pressure sensors with harnesses
- Cable driven speed sensor/generator with harness
- Assorted NPT and metric thread bushings
Notes
- Bezel is not included; system is designed to use the OEM bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- System can be calibrated via the included pushbutton switch or the remote Bluetooth app
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
