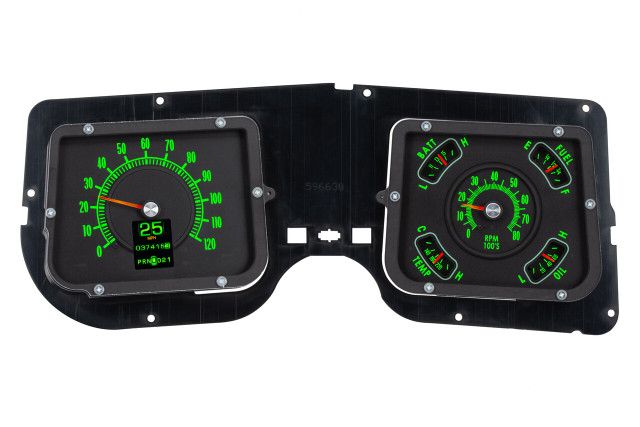

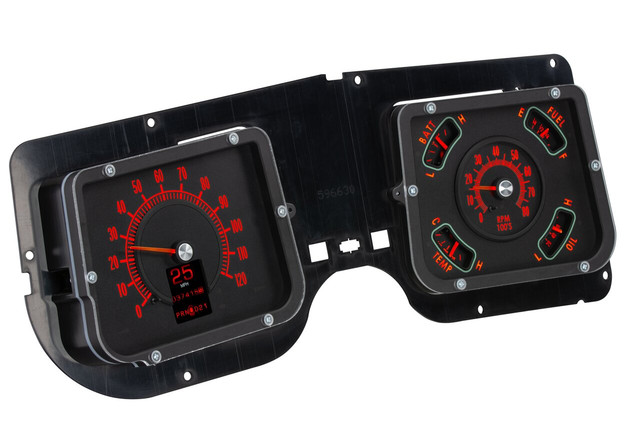

The Dakota Digital RTX-68C-CVL-X Instrument System is a bolt-in replacement gauge cluster designed for the 1968 Chevy Chevelle, Malibu and El Camino, built to fit the two large square gauge openings created when GM redesigned the A body dash for that model year. The system uses the stock bezel while adding a full suite of 21st-century features, including a full-color TFT message center positioned under the speedometer and an 8,000 RPM tachometer centered within a quad-gauge layout.
As part of the RTX series, this instrument system is engineered to preserve the factory appearance while delivering modern functionality. Careful attention has been paid to OEM design elements in layout, face styling and indicators, so the cluster appears original at a glance until the LED backlighting is activated in the color scheme of your choice.
CNC machined housings house electronics designed and built in-house by Dakota Digital, and the high-definition TFT message center can be configured to display a wide range of vehicle information. A central control box simplifies installation and setup. Note: the bezel is not included; the system uses an OEM or reproduction style bezel.
Key Features
- Analog speedometer (0-120 MPH), tachometer (0-8,000 RPM), oil pressure (0-80 psi), water temperature (100-260°F), fuel level (E, 1/4, 1/2, 3/4, F), and voltmeter (9-17 VDC)
- Full-color TFT digital message center with odometer, dual trip meters, 12-hour clock, and estimated range/miles to empty
- Built-in performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, 4x4, wait to start, and two user-programmable auxiliary inputs
- Each analog gauge sweep includes a red LED indicator for warning conditions (except speedometer)
- Over 30 user-selectable color options for needle, sweep, and TFT display colors, with 12 factory preset color themes
- Independently adjustable daytime and nighttime brightness, controllable through the RTX setup menu
- Full LED/RGB backlighting for strong contrast and visibility day or night
- Pushbutton control via included two-sided rocker switch for setup and operation
- Complete system configuration also available through the free Dakota Digital mobile app (Android and Apple)
Specifications
- Part Number: RTX-68C-CVL-X
- Vehicle Application: 1968 Chevy Chevelle, Malibu, and El Camino
- Speedometer Range: 0-120 MPH
- Tachometer Range: 0-8,000 RPM
- Oil Pressure Range: 0-80 psi
- Water Temperature Range: 100-260°F
- Voltmeter Range: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
- Bezel: Not included; system uses OEM or reproduction style bezel
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: Replaces GM style speedometer cables with a 10 ft harness; requires approximately 5" of clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed for the application
- Gear position indicator requires optional GSS-3000 sensor
- DIM-1 accessory available for on-the-fly rotary brightness control
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- Speedometer calibration can be skipped if a GPS-50-2 is used
