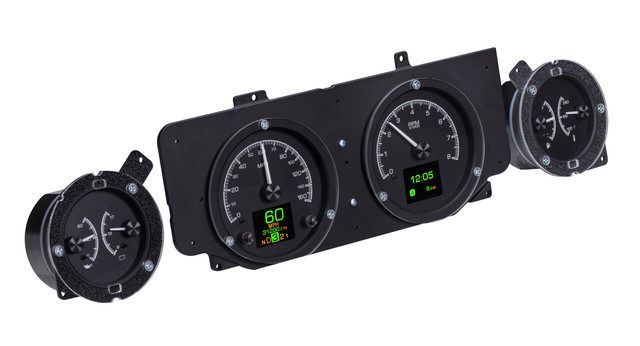

Upgrade the instrumentation in a 1969-70 Ford Mustang with the Dakota Digital HDX System in black face styling. This drop-in system uses the stock instrument housing and bezel, and includes new clear lenses for a factory-fit appearance with modern capability. Two full-color TFT message centers deliver a wealth of information alongside traditional analog gauge readings.

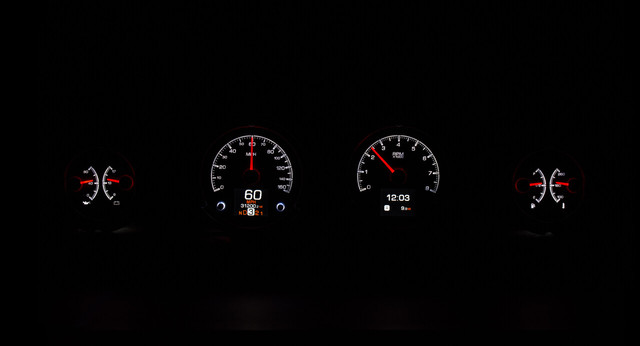

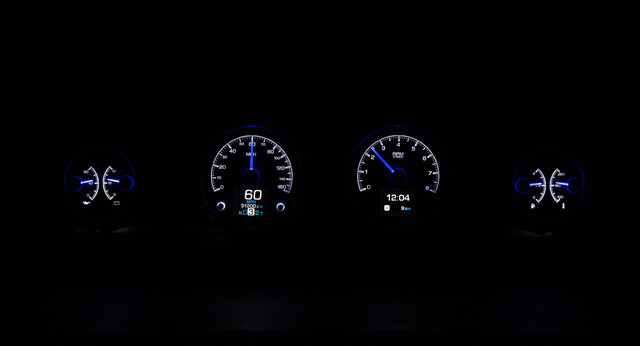

The HDX System allows independent selection of illumination colors for gauge readings, needles, and message centers, with over 30 user-selectable color options and 12 factory preset themes for quick customization. Each needle hub is black nickel plated spun-aluminum to match the onboard capacitive-touch buttons. Calibration and personal settings can be adjusted through the built-in buttons or the available Bluetooth app for Apple and Android devices.
A central control box simplifies installation by sourcing signals from the vehicle harness and connecting supplied, solid-state sending units cleanly to their respective terminals. The system uses an OEM or reproduction style bezel; bezel not included.
Key Features
- Black alloy gauge-face styling with full LED, full RGB backlighting
- Two full-color TFT message centers displaying standard and performance data
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable indicators
- Red, settable warning light built into each gauge sweep (except speedometer)
- Onboard capacitive-touch pushbuttons with LED-lit feedback, plus Bluetooth app control for Android and Apple devices
- Button-press feedback available through the TFT Message Center or included buzzer
- Remote-mounted switches can be wired in as an alternative control option
- Black nickel plated spun-aluminum needle hubs matching the control buttons
Specifications
- Part Number: HDX-69F-MUS-K
- Speedometer: 0-160 MPH, split scale resolution of 120 MPH speedometer with 160 MPH top end range
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Standard Displays: Odometer (one-time user settable, million mile), dual (A/B) trip meter (0-9,999.9), 12-hour clock, estimated range/miles to empty
- Performance Meters: 0-60 MPH timer, 1/4 and 1/8 mile time, 1/4 and 1/8 mile trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces Ford and/or GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system uses OEM or reproduction style bezel
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as desired
- DIM-1 is a common accessory for on-the-fly rotary brightness control (sold separately)
- Matching HDX clock for the passenger side available as HLC-69F-MUS (sold separately)
