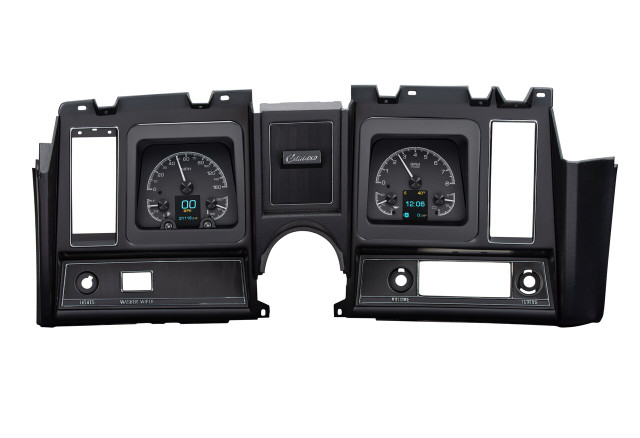

Upgrade your 1969 Chevy Camaro with the Dakota Digital HDX System in Black Face styling. This full six-gauge system is engineered to bolt directly into a stock or reproduction plastic gauge housing/bezel, restoring the classic square gauge openings with modern electronics while retaining a clean, factory-style appearance. The system includes billet trim rings and TFT-display message centers for a finished, high-end look.
Each HDX system allows independent control of illumination colors for gauge readings, needles, and message centers, with calibration and personalization handled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Needle hubs are black nickel plated spun-aluminum to match the control buttons, and dead-faced indicators keep the gauge face clean until activated.
A central control box simplifies installation by using vehicle-harness sourced signals along with supplied solid-state sending units that connect cleanly to their respective terminals, streamlining the wiring process for a factory-quality result.
Key Features
- Full six-gauge HDX system with black alloy gauge-face styling
- Includes billet trim rings and TFT-display message centers
- Bolts into OEM or reproduction style Instrument Carrier Assembly (sold separately)
- Over 30 user-selectable color options for needles, sweep, and digital TFT display
- 12 factory preset color themes or fully custom color zone selection
- Full LED/RGB backlighting for sharp daytime and nighttime visibility
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red, settable warning light built into each analog gauge sweep
- Capacitive-touch pushbutton controls plus Bluetooth app configuration for Android and Apple devices
- Central control box simplifies wiring with vehicle-harness sourced signals
- Built-in performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, and high RPM/speed recall
Specifications
- Part Number: HDX-69C-CAM-K
- Gauge Face Color: Black Alloy
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable driven speed sensor/generator replacing GM style speedometer cables, with 10 ft harness
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
Gauge trim rings are included. This system requires an OEM or reproduction style Instrument Carrier Assembly (such as ICM-69C-CAM), which is sold separately. The cable driven speed sensor requires approximately 5" of clearance between the cable drive output and any obstruction; part number 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is needed. Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed for your application.
