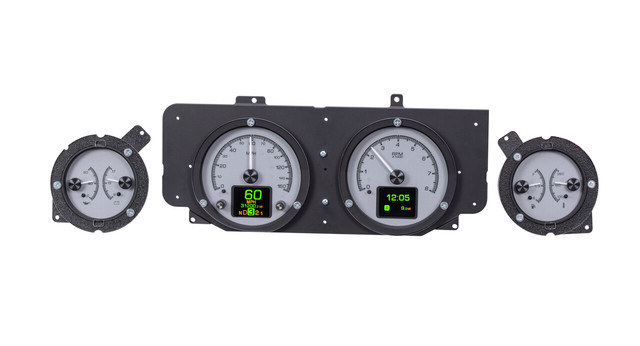

Upgrade your 1969-70 Ford Mustang with the Dakota Digital HDX-69F-MUS-S instrument system, featuring Silver alloy gauge-face styling. This drop-in system uses your stock instrument housing and bezel, and includes new clear lenses for a clean factory-style appearance with modern technology underneath.
The HDX system features two full-color TFT message centers that display a wealth of vehicle information alongside traditional analog gauges. Users can independently select illumination colors for the gauge needles, sweeps, and message centers, with calibration and personal settings controlled via built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons.

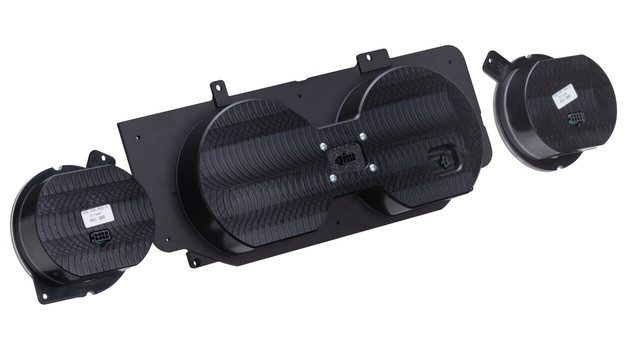

Installation is simplified through a central control box that sources signals from the vehicle harness, along with supplied solid-state sending units that connect cleanly to their respective terminals.
Key Features
- Silver alloy gauge-face styling with new clear lenses
- Two full-color TFT digital message centers

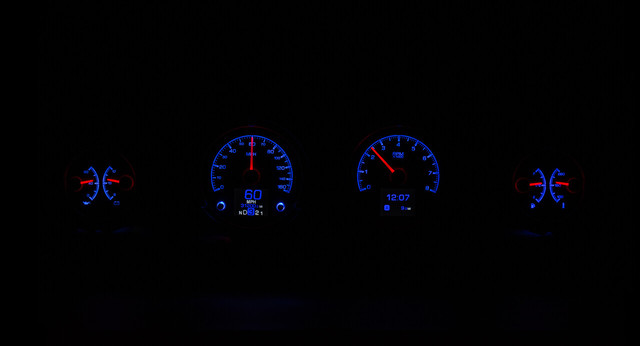

- Over 30 user-selectable color options for needles, sweeps, and digital displays

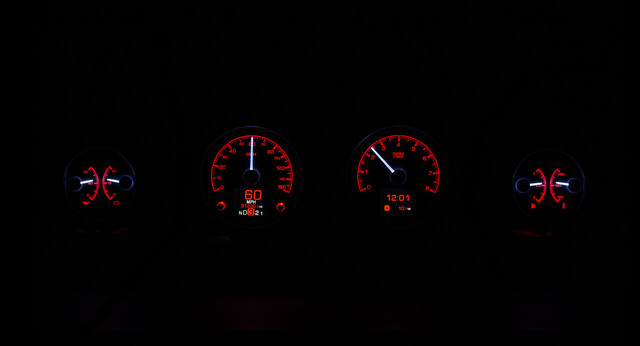

- 12 factory preset color themes, or fully customizable color zones

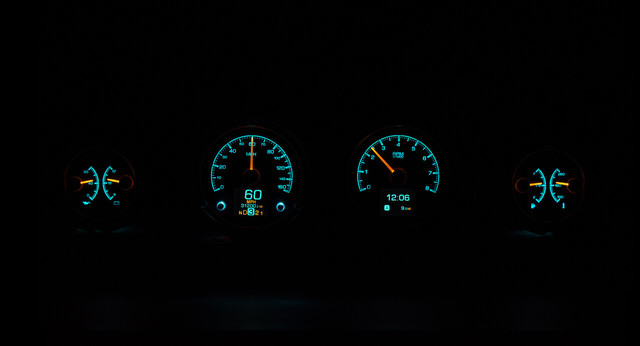

- Full LED/RGB backlighting for sharp day and night visibility
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable indicators
- Red, settable warning light for each gauge
- Built-in capacitive-touch pushbutton controls with Bluetooth app support for setup and calibration
- Black nickel plated spun-aluminum needle hubs
- Uses OEM or reproduction style bezel
Specifications
- Part Number: HDX-69F-MUS-S
- Speedometer: 0-160 MPH (split scale resolution of 120 MPH speedometer)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One time user settable, Million Mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH Timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces Ford and/or GM style speedometer cables with 10 ft harness; requires approximately 5" clearance between cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system uses OEM or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators can be repurposed as needed
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required
- Matching HDX clock available separately for the passenger side (HLC-69F-MUS)
- DIM-1 accessory available separately for on-the-fly rotary brightness control
