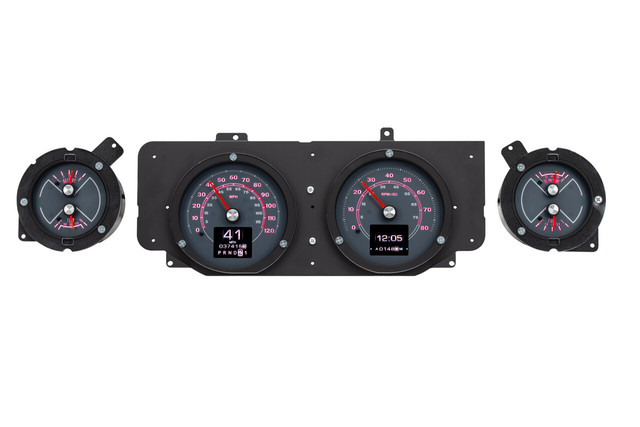

The Dakota Digital RTX-69F-MUS-X is a direct-fit RTX Series instrument system designed to bolt in behind the stock bezel of a 1969-70 Ford Mustang. Combining OEM-style gauge layout and face design with full LED backlighting, this system delivers the vintage dash appearance you want along with modern electronic performance and visibility, day or night.
Built around CNC-machined housings and electronics designed and engineered in-house, the RTX system raises the bar for aftermarket instrumentation while retaining a stock look. High-definition TFT message centers keep the driver informed of vital vehicle information, and the system's central control box simplifies both installation and setup.
This system uses an OEM or reproduction style bezel; the bezel itself is not included and is shown for visual/presentation purposes only. An optional RLC clock (RLC-69F-MUS-X) can be added to the passenger side for a complete instrument upgrade.
Key Features
- Direct-fit replacement for 1969-70 Ford Mustang analog gauge cluster
- Full LED backlighting with over 30 user-selectable colors for independent needle, sweep, and TFT display color control
- 12 factory preset color themes, or fully custom color zone selection
- Daytime and nighttime brightness control through the setup menu, toggled by headlight switch activation
- High-definition TFT digital message center(s) for configurable information display
- Pushbutton rocker switch control for setup, calibration, and menu navigation
- Free mobile app (Android and Apple) for complete system configuration and real-time gauge readouts
- Central control box for simplified installation and wiring
Specifications
- Part Number: RTX-69F-MUS-X
- Speedometer: 0-120 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Key Indicators
- Turn Signals (Left/Right)
- High Beam
- Check Engine
- Parking Brake
- Cruise Control (On/On & Engaged when vehicle is equipped)
- Gear Position (optional GSS-3000 sensor required)
- 4x4 (when vehicle is equipped)
- Wait to Start (when vehicle is equipped)
- Two auxiliary input indicators with user-programmable labels
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
Digital Message Center Functions
- Odometer (one-time user settable, million mile)
- Dual (A/B) Trip Meter (0-9,999.9)
- 12-hour Clock
- Estimated Range/Miles to Empty
- 0-60 MPH Timer
- 1/4 and 1/8 mile time
- 1/4 and 1/8 mile end speed (trap speed)
- High speed recall
- High RPM recall
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces Ford and/or GM style speedometer cables with 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction (optional part 130011 available separately for relocating the pulse generator when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Kit Includes
- RTX instrument cluster with analog gauges and TFT message center(s)
- Central control box
- Two-sided pushbutton rocker switch
- Water temperature and oil pressure sensors with 10 ft harnesses
- Cable driven speed sensor/generator with 10 ft harness
- NPT and metric thread bushings
Notes
- Bezel is not included; system is designed to use an OEM or reproduction style bezel
- Optional GSS-3000 sensor required for gear position indicator functionality
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
- Optional RLC-69F-MUS-X clock available to add to the passenger side
- Compatible with free Dakota Digital mobile app for Android and Apple devices
