Description

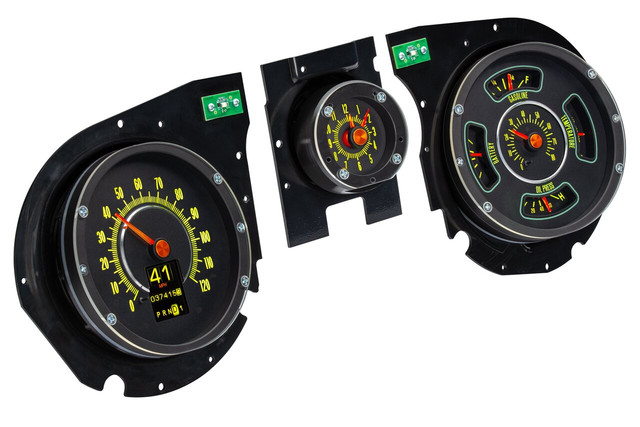

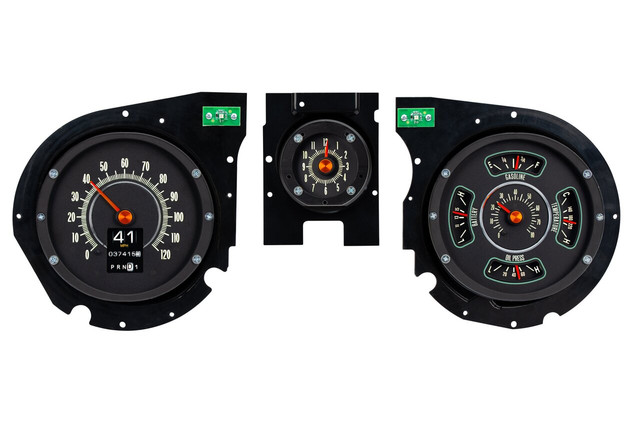

The Dakota Digital RTX-69C-CVL-X Instrument System brings modern electronics to the 1969 Chevrolet Chevelle, Malibu, and El Camino while retaining the factory dash appearance. Designed as a bolt-in replacement using the stock dash bezel and components, this system gives you the classic 1969 look with the performance features you want. The package includes a clock, tachometer, and analog readings for oil pressure, temperature, volts, and fuel level, along with LEDs to illuminate the factory turn signal locations.
As part of the RTX series, this system is built to retain the stock appearance without sacrificing late-model features. Extensive effort was placed into replicating OEM layout, face styling, and indicator design so the gauges appear factory at a casual glance. Once illuminated, the LED backlighting in your chosen color scheme reveals the advanced technology hidden within.
Each RTX gauge cluster starts with a CNC-machined housing filled with electronics engineered and built in-house by Dakota Digital. High-definition TFT message centers can be configured to display a wide range of vehicle information, and a central control box simplifies installation and setup.
Key Features
- Analog speedometer, tachometer, oil pressure, water temperature, fuel level, and voltmeter gauges
- Built-in 12-hour analog clock
- High-definition TFT digital message centers with configurable displays
- Standard displays include odometer, dual trip meters, clock, and estimated range/miles to empty
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, gear position (optional GSS-3000 sensor required), 4x4, and wait to start, plus two programmable auxiliary indicators
- Red LED warning indicator built into each analog gauge sweep (except speedometer)

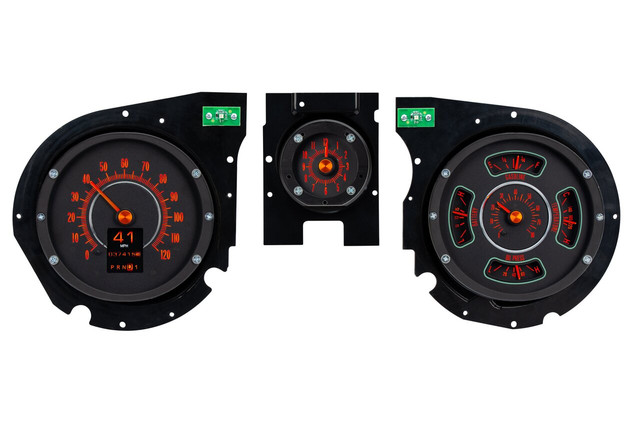

- Over 30 user-selectable colors for needle, sweep, and digital display
- 12 factory preset color themes or fully custom color zone selection
- Independently adjustable daytime and nighttime brightness, controlled via the RTX setup menu and toggled by the headlight switch
- Full LED/RGB backlighting for strong day and night visibility
- Pushbutton control via included two-sided rocker switch for setup and menu navigation
- Configurable through a free mobile app (Android and Apple) for setup and real-time gauge readouts
- Bolt-in design using your stock dash bezel and components
Specifications
- Part Number: RTX-69C-CVL-X
- Speedometer: 0-120 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Clock: 12-hour analog movement
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: Replaces GM style speedometer cables, includes 10 ft harness (sensor requires approximately 5" clearance between cable drive output and any obstruction; part number 130011 available separately for relocation when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system uses the OEM or a reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed for your application
- An optional DIM-1 accessory is available for on-the-fly rotary dimmer control
- Optional GSS-3000 sensor required for gear position indication
