Description

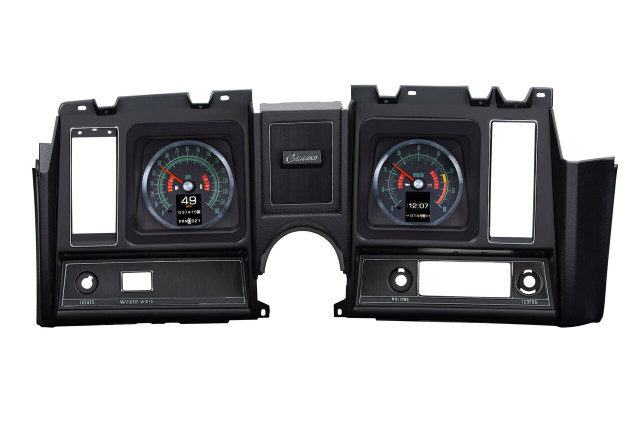

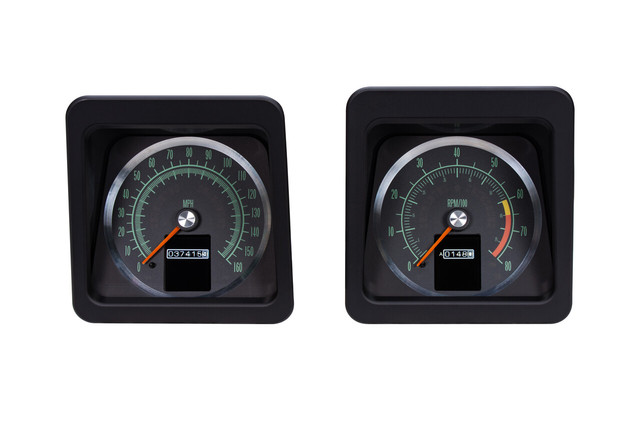

The Dakota Digital RTX-69C-CAM-X is a direct drop-in upgrade for the 1969 Chevy Camaro, designed to install into a stock or reproduction plastic instrument bezel (available separately). With the key off, the gauge face looks all but factory original, featuring a large speedometer and tachometer. Once power is applied, segmented LED bars come to life to display oil pressure, coolant temperature, voltage and fuel level, while twin TFT message centers provide a full array of additional information.
Stock lenses and indicator rings are replaced with the included matte black aluminum trim rings, preserving the OEM layout and face styling while adding the late-model features enthusiasts want. CNC machined housings are filled with electronics designed and built in-house by Dakota Digital, and the RTX series uses a central control box to simplify installation and setup.

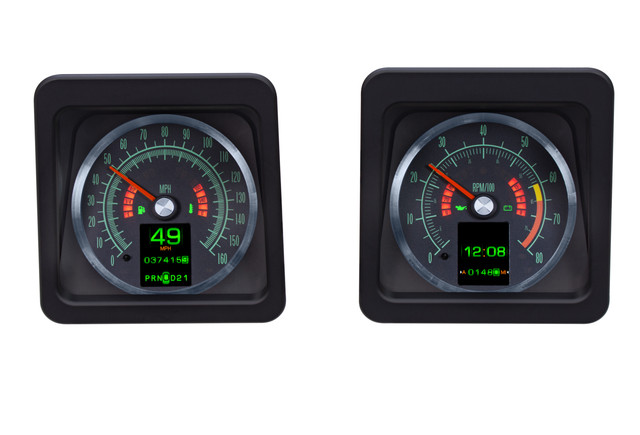

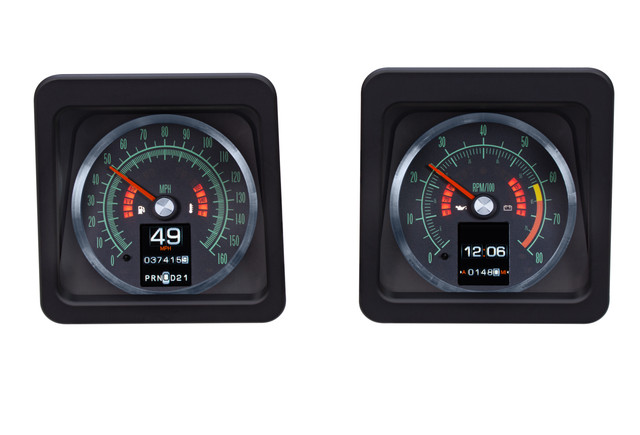

Full RGB LED backlighting allows independent color selection for needle color, sweep color and digital TFT display color, with over 30 user-selectable color options and 12 factory preset color themes. The system can be configured and calibrated through the included pushbutton rocker switch or through the free Dakota Digital mobile app for Android and Apple devices.
Key Features
- Drop-in replacement for the stock or reproduction 1969 Camaro instrument bezel (Instrument Carrier Assembly required, sold separately)
- Large analog speedometer and tachometer with OEM-style layout
- Segmented LED bar graph gauges for oil pressure, water temperature, fuel level and voltage
- Twin high-definition TFT message centers for configurable information display
- Matte black aluminum trim rings included, replacing stock lenses and indicator rings
- Full LED backlighting with over 30 user-selectable colors and 12 factory preset themes
- Independent color control for needle, sweep and digital TFT display
- Daytime and nighttime brightness control, toggled by the headlight switch
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control and more, plus two user-programmable auxiliary input indicators
- Pushbutton rocker switch control with button-press feedback via TFT message center or included buzzer
- Configurable via free mobile app with Bluetooth sync for real-time gauge readouts and diagnostics
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall and high RPM recall
- Central control box for simplified installation and setup
Specifications
- Part Number: RTX-69C-CAM-X

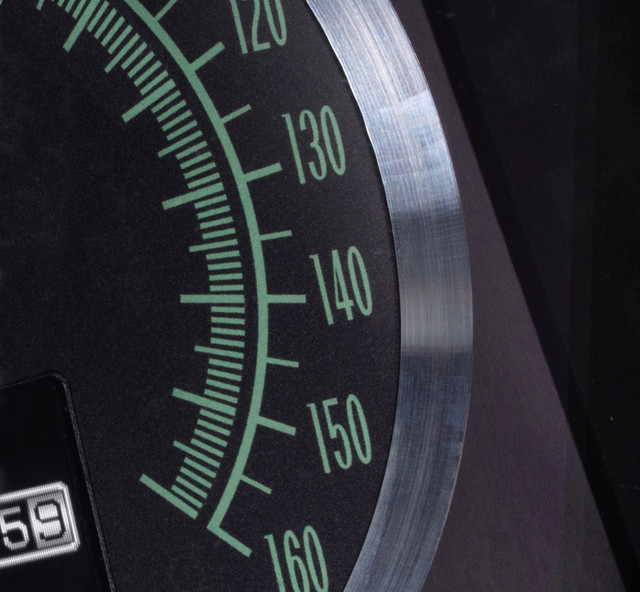

- Speedometer Range: 0-160 MPH
- Tachometer Range: 0-8,000 RPM
- Oil Pressure Range: 0-80 psi
- Water Temperature Range: 100-260°F
- Fuel Level Display: E, 1/4, 1/2, 3/4, F
- Voltmeter Range: 9-17 VDC
- Odometer: One-time user settable, Million Mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground-isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM-style speedometer cables, 10 ft harness; requires approximately 5" of clearance between the cable drive output and any obstruction (Part # 130011, sold separately, allows relocation of the pulse generator when additional clearance is needed; Tremec and Ford style adaptors available on request)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Kit Includes
- RTX instrument cluster with analog gauges, digital bar graph gauges and twin TFT message centers
- Matte black aluminum trim rings
- Central control box
- Two-sided pushbutton rocker switch
- Water temperature and oil pressure sensors with harnesses
- Cable driven speed sensor/generator with harness
- Assorted bushings
Notes
- Requires a 1969 Chevy Camaro Instrument Carrier Assembly (ICM-69C-CAM), sold separately, for installation into the stock or reproduction bezel
- Gear position indicator requires optional GSS-3000 sensor, sold separately
- On-the-fly rotary dimmer control available with optional DIM-1 accessory, sold separately
- Speedometer calibration can be bypassed if used with optional GPS-50-2, sold separately
- Not all OEM indicator lamp functions are replaced; unused indicators may be repurposed as needed
